CLW 3 Axles Chemical Liquid Semi Trailer 46000L
Chemical Liquid Semi Trailer ,is also called Chemical semitrailer truck,is widely used in transporting kinds of chemical liquid. It has large loading quality , solid ,etc features.
Technical parameter of CLW 3 Axles Chemical Liquid Semi Trailer 46000L:
Main Technical parameter | |||
Product Model | CLW Chemical Liquid Semi Trailer | Overall Dimension(L*W*H)(mm) | 12000×2500×3750 |
Tank Volume(L) | 46000 | Tank Dimension(mm) | 11500×2490×2150 |
Payload(kg) | Approx 45000 | Curb weight(kg) | 9000 |
Approach/ departure angle (° ) | -/15 | Leaf Spring number: | -/8/8/8 |
Axle number | 3 | Front/Rear axle load(Kg) | -/39000 (three-axis combined) |
Wheelbase(mm) | 6000+1310+1310 | Rear tread(mm) | 2040/2040/2040 |
Tire size | 425/65R22.5 18PR, | Number of Tire: | 12 |
Warranty | 12 months, from the date of supply | ||
Remarks | 1. Protective material: carbon steel, | ||
2. Functions: The tank can be made separated chambers to load different oil or chemical varieties .and can be designed as pump-in and pump-out through measurement; | |||
3.Tank material: 6mm carbon steel, 90mm king pin | |||
This Chemical Liquid Semi Trailer show as following:
Water tank and Fire extinguisher carrier of this Chemical Liquid Semi Trailer :
28ton manual outrigger of this Chemical Liquid Semi Trailer :
Ground antistatic tape of this Chemical Liquid Semi Trailer :
FUWA axles & AEOLUS Tire of this Chemical Liquid Semi Trailer :
Water tank and Fire extinguisher carrier of this Chemical Liquid Semi Trailer :

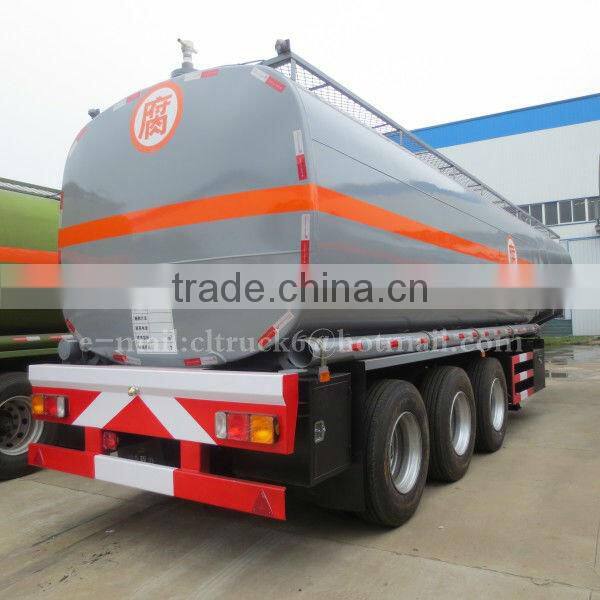

More Chemical Liquid Semi Trailer show as the following:

Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our certificates;
Production Equipments:
