3 Axles Heavy Duty Flatbed Semi Trailer 50Ton with Front Sideboard
Flatbed Semi Trailer is also called flatbed transport semi trailer, construction machinery transporter , mainly used in transporting excavator, loaders, harvesterand other not disassemble objects. Our company can produce Dongfeng Jinba flatbed truck, Dongfeng Doulika Flatbed truck, Dongfeng 145 flatbed truck, Dongfeng 153bed Flat truck, Dongfeng 8x4 flatbed truck, Dongfeng 6x4 flatbed truck, and other brand such as Faw, foton , JAC Flatbed truck,load weight range from 3 ton to 35tons.
Production notes:
1 Factory direct sale
2 High quality, low price
3 Load 50ton
4 Fuwa 3 13ton axle ,with front sideboard
Main Parameter of 3 Axles Heavy Duty Flatbed Semi Trailer 50Ton with Front Sideboard
Main Technical Parameter | |||
Product Model | Flatbed Semi Trailer | Overall Dimension(L*W*H)(mm) | 13000×2500×2820 |
Gross weight (kg) | Approx 40000 | Approach/ departure angle (° ) | -/14 |
Curb weight(kg) | Approx 7500 | Leaf Spring number: | -/8/8/8 |
Axle number | 3 | Front/Rear axle load(Kg) | -/39000 (three-axis combined) |
Wheelbase(mm) | 6950+1310+1310 | Rear tread(mm) | 1840/1840/1840 |
Tire size | 11.00R20 12PR | Tire No: | 12 |
Warranty | 12 months, from the date of supply | ||
Remarks | 1. Traveling mechanism:13T FUWA axle, 1 spare tire carrier | ||
2. Protective material: carbon steel | |||
3. Thickness 3mm steel plate | |||
4. Use with the tractor better | |||
This Flatbed Semi Trailer show as following:
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our certificates;

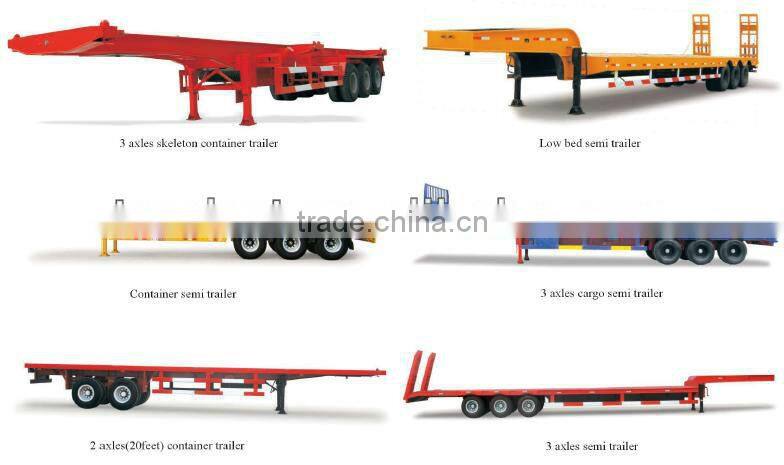

Other Semitrailer Series:
Contact Information:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please check as below:
