Home > Transportation > Trailer > Truck Trailer > CLW 3 Axles Stainless Steel Oil Semi Trailer 42000L

CLW 3 Axles Stainless Steel Oil Semi Trailer 42000L

CLW 3 Axles Stainless Steel Oil Semi Trailer 42000L photo-1
US$ 32,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Semi-Trailer
Material:
Other, stainless steel
Certification:
Other, 3C
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Type Semi-Trailer
Material Other, stainless steel
Certification Other, 3C
Size 12980*2500*3820
OEM No. CKW9400
Max Payload 29400
Place of Origin Hubei, China
Brand Name CLW
Model Number CLW9400GYY







CLW 3 Axles Stainless Steel Oil Semi Trailer 42000L



              Stainless Steel Oil Semi Trailer is also called  Multi-axis Fuel Trailer , Multiaxial Transport Semitrailer ,Semi -trailer truck ,semitrailer transport truck,is widely used in  transporting kinds of van or tank container or tanker. It has large  loading volume  , efficient ,time-saving,etc features.



Production notes:



1 Factory direct sale

2 High quality, low price
3 Load gasoline 30 ton

4 Fuwa 3 axles

5 with tractor, use more convenient



Main Technical Parameter of   CLW 3 Axles Stainless Steel Oil Semi Trailer 42000L





Whole truck main technical parameter

Product Model

CLW  Stainless Steel Oil Semi Trailer

Overall Dimension(L*W*H)(mm)

12980×2500×3820

Tank Volume(L)

42000

Tank Dimension(mm)

Front-end(4200×2350×1600)

rear-end(6800×2480×2040)

Front/ rear suspension(mm)

-/1860

Approach/ departure angle (° )

-/22

Curb weight(kg)

11800

Leaf Spring number:

-/8/8/8

Axle number

3

Front/Rear axle load(Kg)

-/39000 (three-axis combined)

Wheelbase(mm)

7200+1310+1310

Rear tread(mm)

1840/1840/1840

Tire size

11.00R20 12PR

Number of Tire:

12

Remarks

1. Tank material: 5mm stainless steel 304, 90# King pin ,28ton manual FUWA outrigger

2. Equipped with 2 oil pipe, one compartment, one gravity valve,one rear ladder , optional more compartment or oil pump

3. Equipped with one tool box, two fire extinguisher, ground wire

4. Protective material: carbon steel, storage medium: gasoline etc

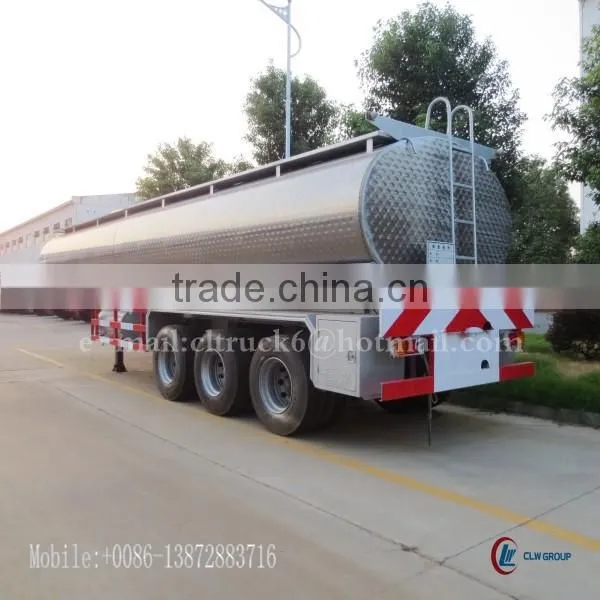

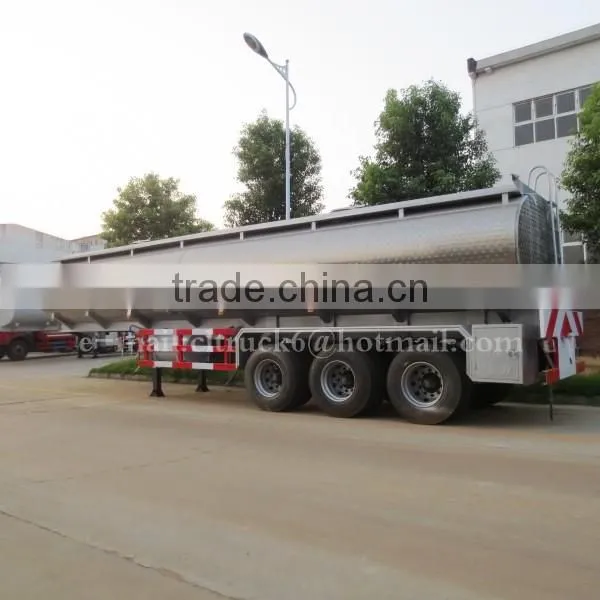

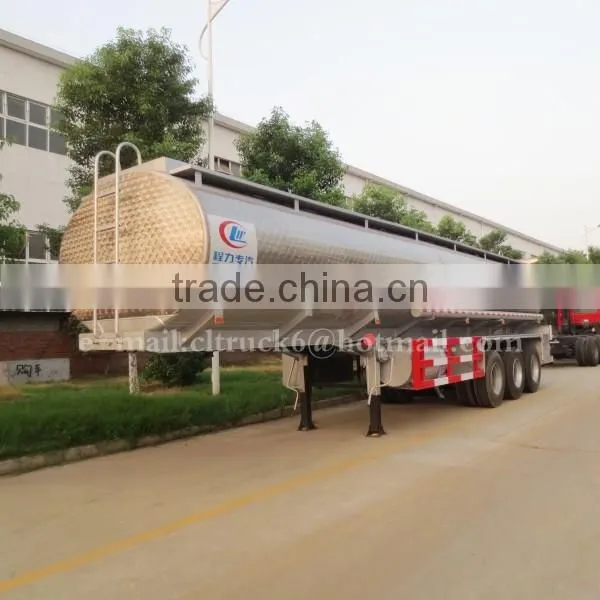

This  Stainless Steel Oil Semi Trailer show as following:



 CLW 3 Axles Stainless Steel Oil Semi Trailer 42000L



CLW 3 Axles Stainless Steel Oil Semi Trailer 42000L



CLW 3 Axles Stainless Steel Oil Semi Trailer 42000L



Ground anti-static tape of this Stainless Steel Oil Semi Trailer show as the following :



CLW 3 Axles Stainless Steel Oil Semi Trailer 42000L

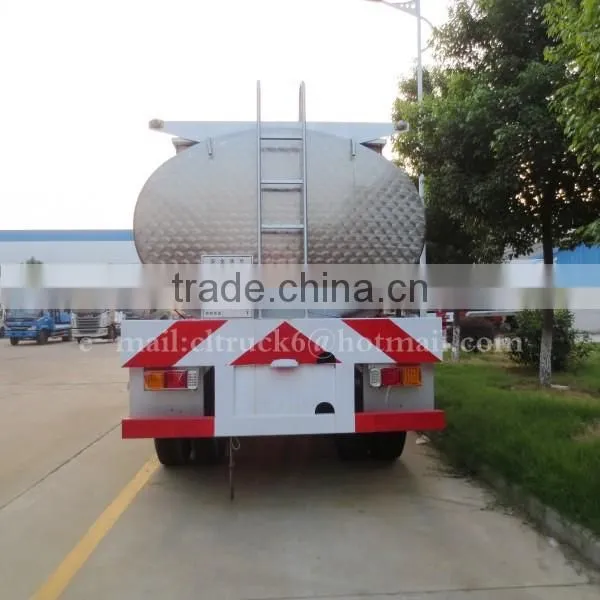

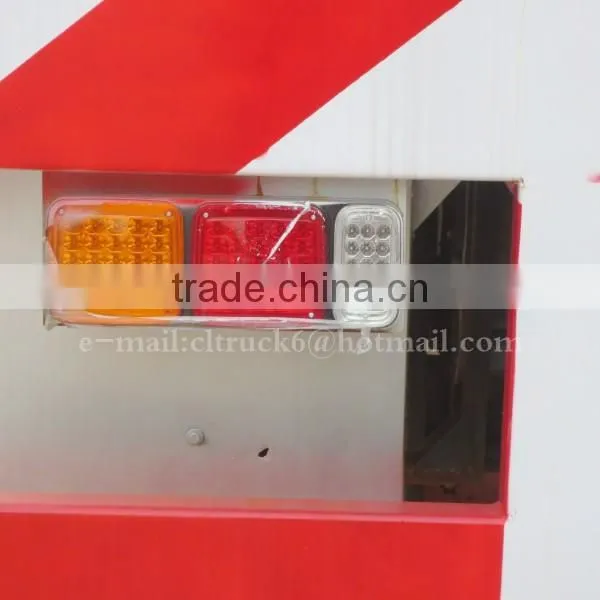

Rear Signal Lights of this Stainless Steel Oil Semi Trailer show as the following :



CLW 3 Axles Stainless Steel Oil Semi Trailer 42000L

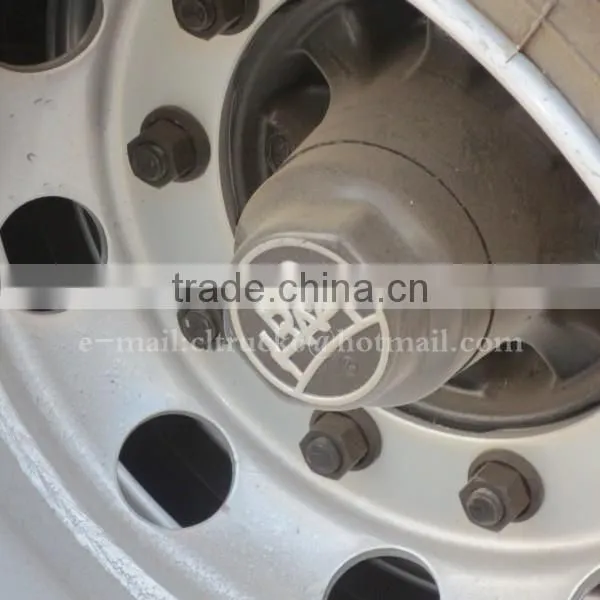

BPW  13ton axles of this Stainless Steel Oil Semi Trailer show as the following :



CLW 3 Axles Stainless Steel Oil Semi Trailer 42000L

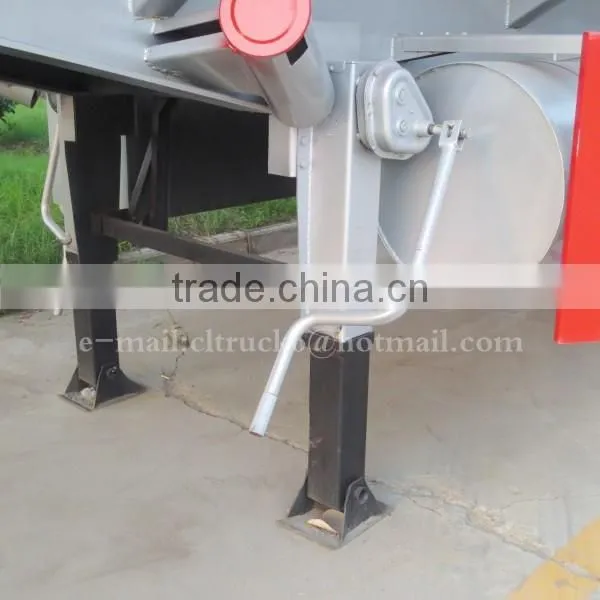

 28Ton FUWA Outrigger of this Stainless Steel Oil Semi Trailer show as the following :



CLW 3 Axles Stainless Steel Oil Semi Trailer 42000L



Fire extinguisher carrier of this Stainless Steel Oil Semi Trailer show as the following



CLW 3 Axles Stainless Steel Oil Semi Trailer 42000L



 Brief Introduction of Company:



       ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.

          Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.

         We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.

            ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.



Our certificates;



CLW 3 Axles Stainless Steel Oil Semi Trailer 42000L



CLW 3 Axles Stainless Steel Oil Semi Trailer 42000L



Production Equipments:




CLW 3 Axles Stainless Steel Oil Semi Trailer 42000L

         CLW 3 Axles Stainless Steel Oil Semi Trailer 42000L        If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:



CLW 3 Axles Stainless Steel Oil Semi Trailer 42000L





CLW 3 Axles Stainless Steel Oil Semi Trailer 42000L
