68hp 4*2 FORLAND 2m3 Mini Fecal Suction Tanker
Mini Fecal Suction Tanker, is called Fecal suction vehicle, mainly used in pumping stool,polluted water,sludge,floating debris in all kinds of city's municipal sanitation, agricuture,factory,district,etc. It have many good features:self-priming, self-discharging, high efficiency.
Basic equipment: inspect fecal window, gravity mouth, cleaning apparatus, fecal suction pipe, oil-water separators, overflow valve Fecal suction gun, special vacuum pump(rating rotate speed=1400r/m, min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, steering:clockwise)
Main Features: self-priming, self-discharging, high efficiency,Time for full suction<5min
Tank material optional:carbon steel, stainless steel, epoxy resin anticorrosive processing(in order to contain partial chemical sewage or industrial wastewater).
Technical Parameter of 68hp 4*2 FORLAND 2m3 Mini Fecal Suction Tanker
Main Technical Parameter | |||
Product Model | FORLAND Mini Fecal Suction Tanker | Overall Dimension(L*W*H)(mm) | 4590×1620×2300 |
Wheelbase(mm) | 2300 | Tank Dimension(L*L axle*S axle)(mm) | 2500×1330×950 |
F/ R suspension(mm) | 990/1300 | Actual tank volume(L) | 2000 |
Curb weight(kg) | 2060 | Number of Axles | 2 |
Approach/ departure angle (° ) | 22/20 | Max Speed (km/h) | 90 |
Cab capacity | 2,3 | Cab Type | Single row,Heater |
Chassis parameter | |||
Chassis Model | BJ1042 | Chassis manufacturer | BEIQI FONTON Automobile Co., Ltd |
Gear Box | 5 shift | Transmission type | Manual |
Steering Type | LHD | Traction Type | 4*2 |
Brake System | Air brake | Number of Tire | 6 with a spare |
Leaf Spring number | 5/3+2,8/6+3 | Tire size/type | 6.00-13 8PR |
Engine parameter | |||
Engine Model |
4A1-68C40
| Engine manufacturer | ANHUI QuanChai |
Fuel type | diesel | Displacement(ml) | 1809 |
Emission stand | Euro 3 | Power(kw) | 50/68hp |
Operation System | Electrically Hydraulic Control | Electric system | 24V |
Equipment & Performance & Features | 1.Basic equipment: inspect fecal window, gravity mouth, cleaning apparatus, fecal suction pipe, oil-water separators, overflow valve, Fecal suction gun, special vacuum pump | ||
2. Tank material: 4mm carbon steel (optional stainless steel, etc) | |||
Warranty | 12 months, from the date of supply | ||

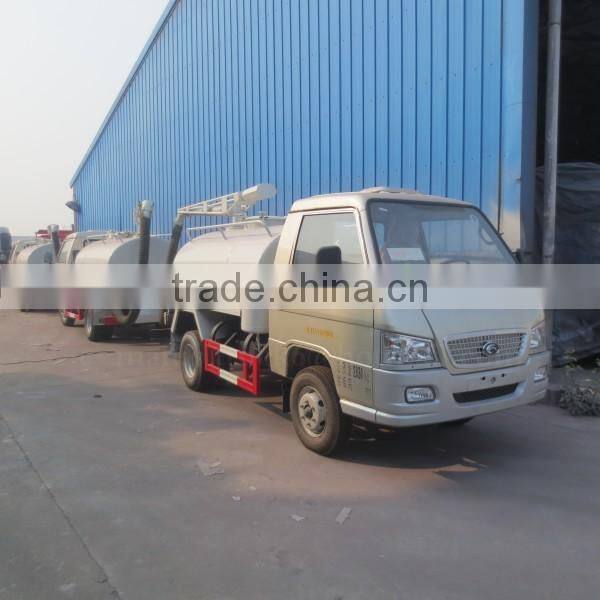

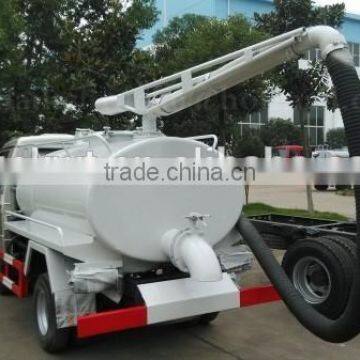

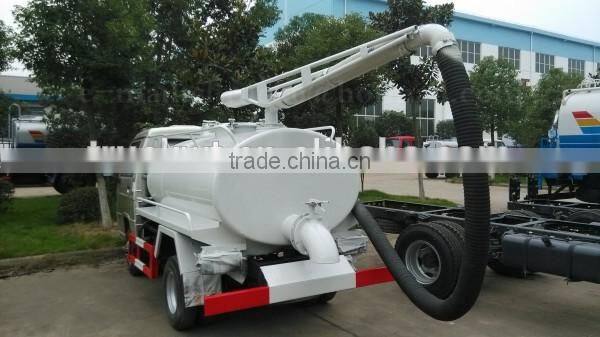

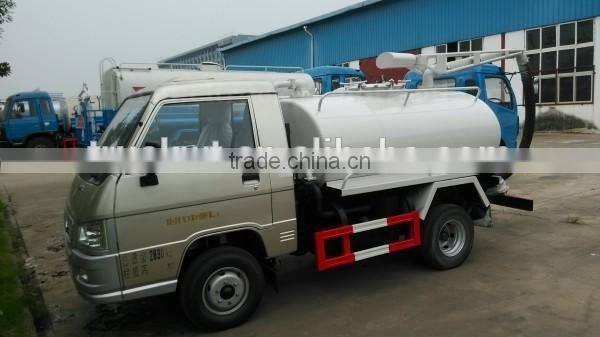

Product Picture of 68hp 4*2 FORLAND 2m3 Mini Fecal Suction Tanker:
Oil separator and Moisture separator
Vacuum Loggers
Hand-washing device
1, Packaging: nude or waxing;
2. Shipping: in the container or Ro-Ro ship or bulk ship according to the customer’ order or requirement;
1. Factory direct supply: reliable quality and fast delivery;
2. Warranty; from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
3. Tracking service: lifelong
4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd , which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. Our leading productions include more than 300 types of trucks such as Water truck, Fecal suction truck, sewage suction truck, Garbage truck, Road sweeper, Fuel tank truck, Van truck, Chemical liquid truck, Concrete mixer truck, Pressure vessel, etc.We have registered trademark "CHENLIWEI" and the products code is “CLW”. We have solid technology, flawless inspection, advanced equipments, reliant quality and flexible modes of operation. What's more, we have roundly passed the certificaton of ISO 9001-2008, the 3C Certification
Since our company was established in Sep.2004, we always strives for the survival by the quality, pursue of development by efficiency. In the past about ten years, we had 30% market share of the sanitation trucks in China market. From 2004 year, we have entered the international market. And we have established long-term cooperative relationship with many countries. In Kyrgyzstan, Papua New Guinea, Libya and Niger, you can find out many fuel trucks, LPG tankers and dump trucks made by our company. In Sudan, Nigeria, Congo and West Africa, you can find out many water trucks, garbage trucks and crane trucks made by our company. In North America, Ghanaian, Kazakhstan and Mongolia, you can find out many dump trucks, crane trucks and freezer trucks made by our company. Tomorrow, we hope we can find out our trucks in your country.
Our certificates:
Production Equipments:
1. Are you manufacturer or trading company?
We are direct manufacturer;
2. Min Order Quantity:
One unit or one sets;
3. Handling Time:
Within one day;
4. Payment Terms:
30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;
5. Specified delivery date from the Date of Order:
Depend on the detailed request and purchase order quantity.
6. Contact Information:
For any question or request, please contact with me freely according to the following information:
