FOTON 11000L Fecal Suction Truck
The fecal suction truck manufactured by Hubei Chengli Special Automobile Co.,Ltd is an ideal and versatile system to handle the sewage,sludge, slurry, industrial effluents(waste oil and chemicals). Utilize the vacuum pump to suction and discharge by gravity. It is easy to operate and works efficiently.
Technical parameters
[Main Technical Parameters] | ||||
Products Name |
Fecal Suction Truck |
Tank Capacity(m3) |
11.1 |
|
Gross Vehicle Weight(Kg) |
15800 |
Rated Payload(Kg) |
8500 |
|
Curb Weight(Kg) |
7105 |
Overall Dimension(mm) |
8350×2470×2980 |
|
Cab Allowed Persons |
3 |
Dive Type |
4x2 |
|
App/Dep Angle(°) |
20/9 |
F/R Suspension(mm) |
1365/2485 |
|
Alex No. |
2 |
Wheelbase(mm) |
4500 |
|
Alex Load(Kg) |
5800/10000 |
Max Speed(Km/h) |
90 |
|
Others |
|
|||
[Chassis Technical Parameters] | ||||
Chassis Model |
BJ5163ELFFD |
Chassis Brand |
FOTON |
|
Overall Dimension(mm) |
8045,7380×2330×2700 |
Tyre No. |
6 |
|
App/Dep Angle(°) |
20/10,20/19 |
Tyre Specification |
9.00-20,10.00-20 |
|
Spring Leaf No. |
10/10+8 |
Front Track(mm) |
1900 |
|
Fuel Type |
Diesel |
Rear Track(mm) |
1800 |
|
Emission Standard |
EUROⅢ |
|||
Engine Model |
CA4DF3-15E3 |
Engine Brand |
FAW |
|
Power(Kw) |
116 |
Displacement(ml) |
4752 |
|

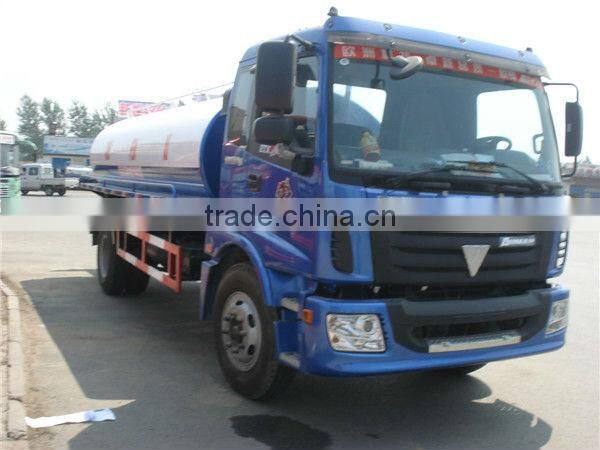

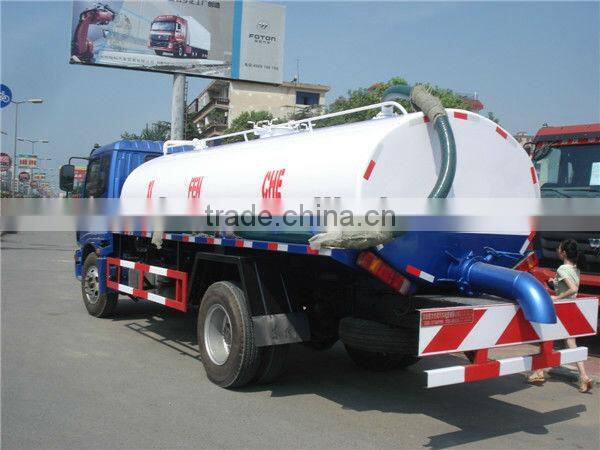

Pictures Show
Factory certification
More trucks we manufacture
1. Water Tanker/Sprinkler Truck/Pesticide Spraying Truck/Dust Removable Truck
2. Garbage Truck/Garbage Compactor/ Sealed Garbage Truck/ Skip Loader/ Self-loader/ Butt-type Garbage Truck/ Hook Loader
3. Sewage Suction Truck/Fecal Suction Truck/ Sewer Cleaning Truck
4. Aerial Working Truck/ Crane Truck
5. Road Wrecker
6. Road Sweeper
7. Oil tanker/ Refuelling Truck
8. LPG Storage Tanker
9. Chemical Liquid Tanker
10. Bulk Cement Tanker
11. Milk Transport Truck
12. Concrete Mixer/ Concrete Pump Truck
13. Tractor Head
14. Asphalt Distributor
15. Fire Fighting Truck
16.Van Truck/ Refrigerator Truck/ Explosion Proof Truck
17. Mobile Stage Truck/ LED Advertising Truck
18. Dump Truck/ Tipper
19. Feed Delivery Truck
20. Semi-trailer/ Flatbed Semi-trailer/ Container Semi-trailer/ Skeleton Semi-trailer/ Low flatbed Semi-trailer/Stake Semi-trailer/LPG tanker Semi-trailer
Contact information
We, Hubei Chengli Special Automobile Co.,Ltd can customize any special truck you are interested. Any detailed information,latest price ,certification, etc. please feel free to contact Ms.Amie Nie
