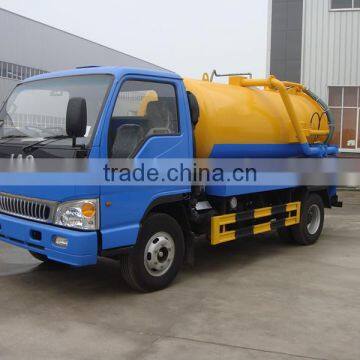

JAC 4CBM sewage suction truck
Sewage suction truck is mainly used for suction, transportation and discharge of sewage from septic tank and sludge from drains.Widely used by municipal environment and sanitation department and residential management.
Basic Equipment:
Imported vacuum pump, Powe-take-off, hydraulic cylinders, multi-way valve , pressure gauges, water-gas seperator , oil-gas seperator, level inspection window, suction hose
Advantages:
1.Tank can be lifted hydraulically to 40-45 degree.Rear door can be opened&closed hydraulically. With full opening design, discharge can be very quick&complete.
2.Overfill system with music horn is euipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.
Detailed Specification:
Main Technical Parameters | |
Product Name |
Sewage Suction Truck |
Gross Vehicle Weight(kg) |
8000 |
Kerb Weight(kg) |
3450 |
Rated Payload(kg) |
4000 |
Tank Capacity(L) |
4,000 |
Tank Material |
Carbon Steel |
Tank Thickness(mm) |
5 |
Drive seat |
R |
Cabin |
Single Cab |
Seating Capacity |
3 |
Chassis Technical Parameters | |
Chassis Brand |
JAC |
Wheelbase(mm) |
3815 |
Transmission |
LC6T46 |
F/R Track(mm) |
1665/1525 |
Steering wheel |
RHD |
Brake system |
Air brake |
Tyre No. |
6 |
Tyre Specification |
7.50R16 |
Max Speed(km/h) |
95 |
Engine Parameters |
|
Fuel Type |
Diesel |
Engine Model |
CY4102BZLQ |
Max Power (kw/rpm) |
88/2800 |
Displacement (cc) |
3856 |
Emission Standard |
Euro II |
Engine Type |
in line-4,inter-cooler turbocharged |
Configuration |
|
Air Conditioner |
include |
Power Steering |
include |
Power Assist of the clutch |
include |
Digital Radio |
include |
Exhaust Braking |
include |
New model cabin |
include |
Product Pictures
Multi-way control valves
Vacuum pressure gauge

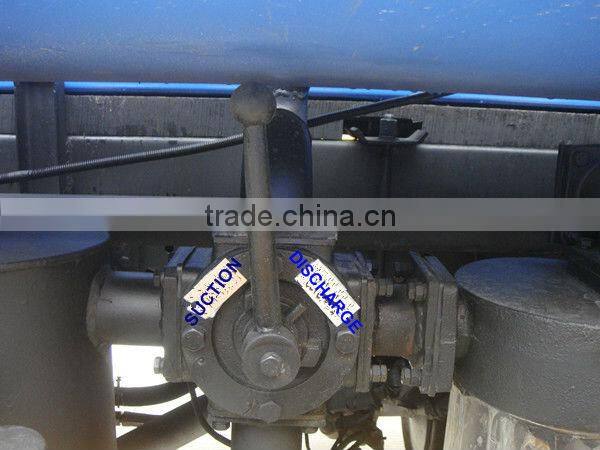

Three-ways valve
