small diesel street sweeper truck with roller brush for sale
The street sweeper truck is also called road sweeper, road sweeping truck, road sweep machine, road sweeping vehicle, etc.The street sweeper truck which made by Chengli Special Automobile Co.,Ltd is an ideal cleaning tool which equipped with powerdevice, cleaning device, suction device, spraying&hydraulic system on Dongfeng chassis,JMC chassis, Qingling chassis, Foton chassis,etc. This truck has large sweep range, low fuel consumption, convenient operation and other advantages.
The sweeper truck for sale is mainly used to sweep the road garbage of street, highway, dock, station, square, cement mill, electric power plant,etc.
1. Street sweeper truck structure drawing
1.Van body assembly 2.Dust suction box assembly 3. Dump cylinder 4.Auxiliary engine battery 5. Sweeper disc assembly 6. Hydraulic Slave 7.Bottom frame 8. Chassis 9. Electro/hydraulic control valve assembly 10.Hydraulic oil tank 11.Auxiliary engine assembly 12. Air blower 13.Fuel tank 14. Radiator 15. Auxiliary fuel-water separator 16.Centrifugal clutch 17. Water pump 18. Magnetic valve 19. Rear door
nical parameters of small street sweeper truck for sale
Main Technical Parameter | ||||
Product Name |
Road Sweeper |
Gross Vehicle Weight(kg) |
6495 |
|
Curb Weight (kg) |
4865 |
Overall Dimension(mm) |
5970x2000x2380 |
|
Rated Payload(kg) |
1500 |
Cab Allowed Persons |
2 |
|
Axle No. |
2 |
Wheelbase (mm) |
3300 |
|
Chassis Technical Parameter | ||||
Chassis Model |
EQ1060TJ20D3 |
Chassis Name |
Truck Chassis |
|
Chassis Brand |
Dongfeng |
Manufacturer |
Dongfeng Automobile Co., Ltd |
|
Overall Dimension (mm) |
5820×1940×2080 |
Tyre No. |
6 with 1 spare tyre |
|
App./ Dep. Angle(º) |
19/15 |
Tyre Spec. |
7.00-16 |
|
Leaf Spring No. |
8/9+5 |
Front Track (mm) |
1506 |
|
Fuel Type |
Diesel |
Rear Track (mm) |
1466 |
|
Drive Type |
4x2 |
Brake System |
Air brake |
|
Steering Type |
Circulate ball |
Gear Box |
5 speed forward and 1 reverse |
|
Engine Technical Parameter | ||||
Engine Model |
CY4102-C3F |
Emission Standard |
Euro III |
|
Displacement ( ml) |
3856 |
Power (KW) |
70 |
|
Cylinder No. |
4 in line |
Engine Type |
Water cooling, four stroke, inter-cooling charged, |
|
Remarks: The sweeping width of dongfeng 4x2 diese street sweeper truck is more than 3 meter, the sweeping speed is 3-15 km/h, max sweeping capacity is 45000m²/h and the max project is 100mm.

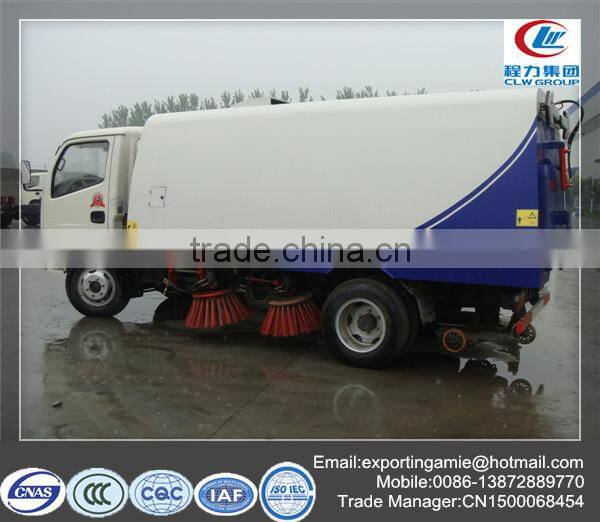

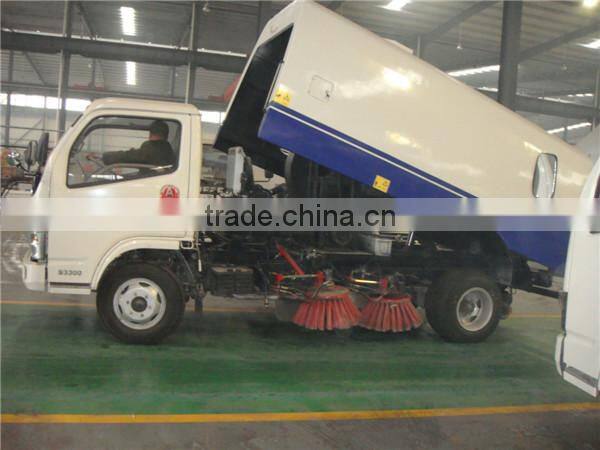

3.small street sweeper pictures
Product Note:
Above parameters of small diesel street sweeper truck for sale is just for reference. As a professional manufacturer of road sweeper truck, we can customize the sweeper truck according to your requriement. Besides street sweeper truck with roller brush, we also produce vacuum street sweeper ,multifunctional floor sweeper,electric sweeper,etc.
Chengli Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our brand i CLW .Our company has ind ependent export authority, and has a lot of overseas clients.
Our leading products include more than 8 series and 100 types of trucks such as water trucks, tank trucks, garbage trucks, fecal suction trucks, sewage suction trucks, dump trucks, van trucks, semi-trailers, wrecker trucks, trucks with cranes, high-altitude operation trucks, training trucks, bulk cement trucks, chemical liquid trucks, fire engines, truck fittings, cement mixers and tractors.
At the same time, we deal with wholesale chassis. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, we have obtained ISO9001,Chinese Top 500 Certificate and CCC certificates (China Compulsory Certification).
Chengli series trucks have occupied the i ling to serve for you, and is looking forward to your coming to visit our company.
More sweeper truck we manufactur
Tips:
1. All of our trucks are new and customized to meet customer's requirement.
2. All of our trucks are with 12 months quality guarantee.
