High efficiency dongfeng 4x2 diesel road sweeper truck
The road sweeper truck is also called road sweeper, street sweeping truck, road sweep machine, road sweeping vehicle, street sweeper,etc.The road street sweeper truck which made by Chengli Special Automobile Co.,Ltd is an ideal cleaning tool which equipped with powerdevice, cleaning device, suction device, spraying&hydraulic system on Dongfeng chassis,JMC chassis, Qingling chassis, Foton chassis,etc. The road sweeper truck we produce has large sweep range, low fuel consumption, convenient operation and other advantages.
The road sweeper truck is mainly used to sweep the road garbage of street, highway, dock, station, square, cement mill, electric power plant,etc.
The sweeping width of dongfeng 4x2 diese street sweeper truck is more than 3 meter, the sweeping speed is 3-15 km/h, max sweeping capacity is 45000m²/h and the max project is 100mm.
1. Road sweeper truck structure drawing
1.Van body assembly 2.Dust suction box assembly 3. Dump cylinder 4.Auxiliary engine battery 5. Sweeper disc assembly 6. Hydraulic Slave 7.Bottom frame 8. Chassis 9. Electro/hydraulic control valve assembly 10.Hydraulic oil tank 11.Auxiliary engine assembly 12. Air blower 13.Fuel tank 14. Radiator 15. Auxiliary fuel-water separator 16.Centrifugal clutch 17. Water pump 18. Magnetic valve 19. Rear door
nical parameters of road sweeper truck
Items |
Descriptions |
Specifications and Types |
General |
Truck Name |
Road sweeper truck |
Drive Type |
4*2 |
|
Gross Vehicle Weight(kg) |
6495 |
|
Curb Weight(kg) |
4865 |
|
Overall Dimensions L*W*H(mm) |
5970×2000×2380 |
|
Engine |
Engine Model |
CY4102-C3F |
Engine Brand |
CHAOCHAI |
|
Fuel Type |
Diesel |
|
Power |
70KW/95HP |
|
Emission Standard |
Euro III |
|
Displacement(ml) |
3856 |
|
Engine Type |
4 cylinders in line,4 stroke,water cooling,charged diesel engine,inter-cooling |
|
Chassis |
Chassis Brand |
DONGFENG |
Cabin |
Single row cab |
|
Front/Rear Axle(kg) |
2595/3900 |
|
Tire No. |
6 |
|
Tire Specification |
7.00-16 Nylon tire |
|
Wheelbase (mm) |
3300 |
|
Axle No. |
2 |
|
Gear Box |
5 speed forward with 1 reverse, manual |
|
Brake |
Air brake |
|
Steering Wheel |
left hand drive,right hand drive is optional |
|
Air conditional |
Optional |
|
Sweeping System |
Dust tank volume(m³) |
3.5 |
Water tank volume(m³) |
0.8 |
|
Tank material |
SUS304 stainless steel |
|
Sweeping width |
More than 3m |
|
Sweeping capacity |
About 45000 square meter per hour |

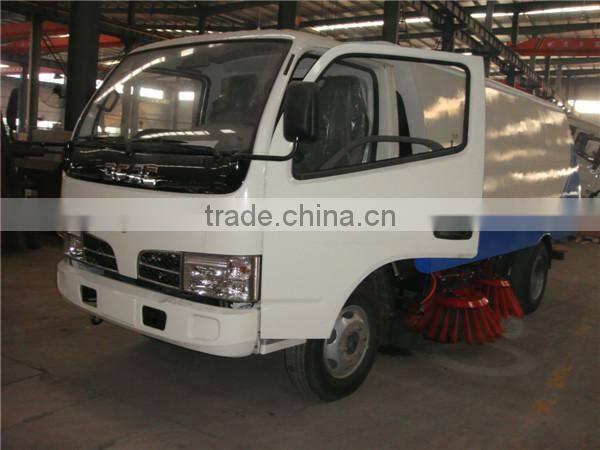

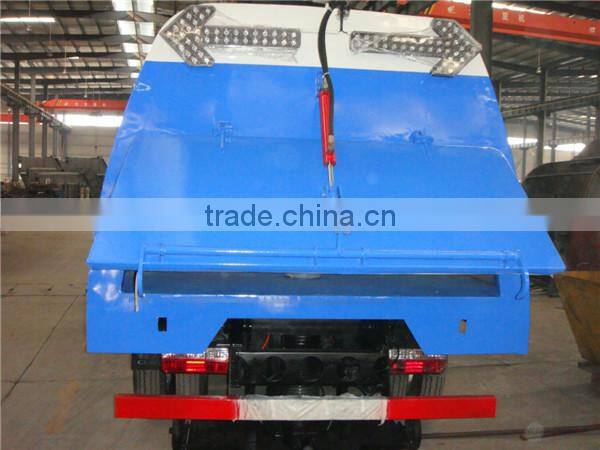

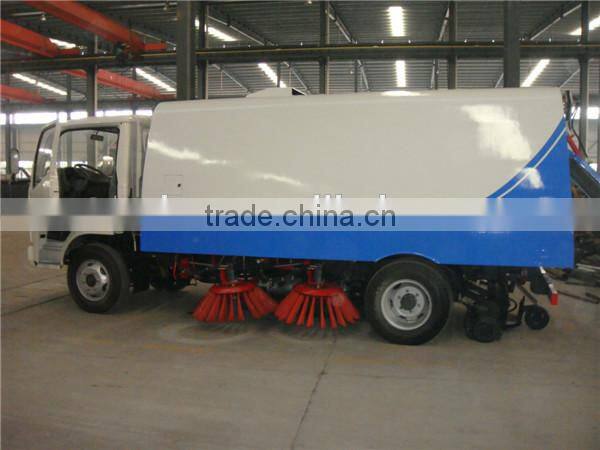

3.Pictures of small dongfeng road sweeper truck
Product Note:
Above parameters of dongfeng 4x2 diesel road sweeper truck is just for reference. As a professional manufacturer of road sweeper truck, we can customize the sweeper truck according to your requriement. Besides street sweeper truck with roller brush, we also produce vacuum street sweeper ,multifunctional floor sweeper,electric sweeper,etc.
Chengli Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our brand is CLW .Our company has ind ependent export authority, and has a lot of overseas clients.
Our leading products include more than 8 series and 100 types of trucks such as water trucks, tank trucks, garbage trucks, fecal suction trucks, sewage suction trucks, dump trucks, van trucks, semi-trailers, wrecker trucks, trucks with cranes, high-altitude operation trucks, training trucks, bulk cement trucks, chemical liquid trucks, fire engines, truck fittings, cement mixers and tractors.
At the same time, we deal with wholesale chassis. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, we have obtained ISO9001,Chinese Top 500 Certificate and CCC certificates.
More sweeper truck we manufacture
Other trucks we produce
1. Water Tanker
2. Garbage Truck
3. Sewage Suction Truck
4. Aerial Working Truck/ Crane Truck
5. Road Wrecker
6. Road Sweeper
7. Oil tanker/ Refuelling Truck
8. LPG Storage Tanker
9. Chemical Liquid Tanker
10. Bulk Cement Tanker
11. Milk Transport Truck
12. Concrete Mixer/ Concrete Pump Truck
13. Tractor Head
14. Asphalt Distributor
15. Fire Fighting Truck
16.Van Truck/ Refrigerator Truck/ Explosion Proof Truck
17. Mobile Stage Truck/ LED Advertising Truck
18. Dump Truck/ Tipper
19. Feed Delivery Truck
20. Semi-trailer
Tips:
1. All of our trucks are new and customized to meet customer's requirement.
2. All of our trucks are with 12 months quality guarantee.
