factory small street sweeping truck for sale
Street sweeping truck is also called road sweeper, road sweeping truck, road sweep machine, road sweeping vehicle, etc.The sweep&suction type road sweeper which made by Chengli Special Automobile Co.,Ltd is a new generation of cleaning tool which equipped with powerdevice, cleaning device, suction device, spraying&hydraulic
system on Dongfeng chassis,JMC chassis, Qingling chassis, Foton chassis,etc. This truck has large sweep range, low
fuel consumption, convenient operation and other advantages. It is mainly used to sweep the road garbage of street,
highway, dock, station, square, cement mill, electric power plant,etc.
1. Street sweeping truck structure drawing
- Van body assembly 2.Dust suction box assembly 3. Dump cylinder
- Auxiliary engine battery 5. Sweeper disc assembly 6. Hydraulic Slave
- Bottom frame 8. Chassis 9. Electro/hydraulic control valve assembly
- Hydraulic oil tank 11.Auxiliary engine assembly 12. Air blower
- Fuel tank 14. Radiator 15. Auxiliary fuel-water separator
- Centrifugal clutch 17. Water pump 18. Magnetic valve 19. Rear door
nical parameters for truck mounted sweeping machine for your reference
Main Technical Parameter | ||||
Product Name |
Road Sweeper |
Gross Vehicle Weight(kg) |
9400 |
|
Curb Weight (kg) |
5705 |
Overall Dimension(mm) |
6700x2290x2500 |
|
Rated Payload(kg) |
3500 |
Cab Allowed Persons |
3 |
|
Axle No. |
2 |
Wheelbase (mm) |
3800 |
|
Chassis Technical Parameter | ||||
Chassis Model |
EQ1090T9ADJ3AC |
Chassis Name |
Truck Chassis |
|
Chassis Brand |
Dongfeng |
Manufacturer |
Dongfeng Automobile Co., Ltd |
|
Overall Dimension (mm) |
6695×2285×2350 |
Tyre No. |
6 with 1 spare tyre |
|
App./ Dep. Angle(º) |
22/13 |
Tyre Spec. |
8.25-16 |
|
Leaf Spring No. |
11/9+7 |
Front Track (mm) |
1831 |
|
Fuel Type |
Diesel |
Rear Track (mm) |
1640 |
|
Drive Type |
4x2 |
Brake System |
Air brake |
|
Steering Type |
Circulate ball |
Gear Box |
5 speed forward and 1 reverse |
|
Engine Technical Parameter | ||||
Engine Model |
CY4102-E3C |
Emission Standard |
Euro III |
|
Displacement ( ml) |
3856 |
Power (KW) |
91 |
|
Cylinder No. |
4 in line |
Engine Type |
Water cooling, four stroke, inter-cooling charged, |
|

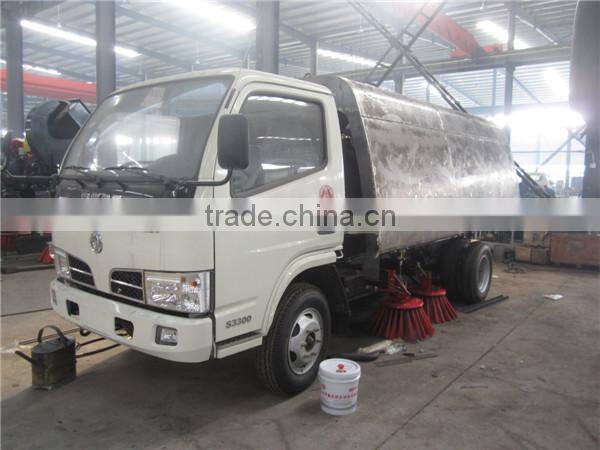

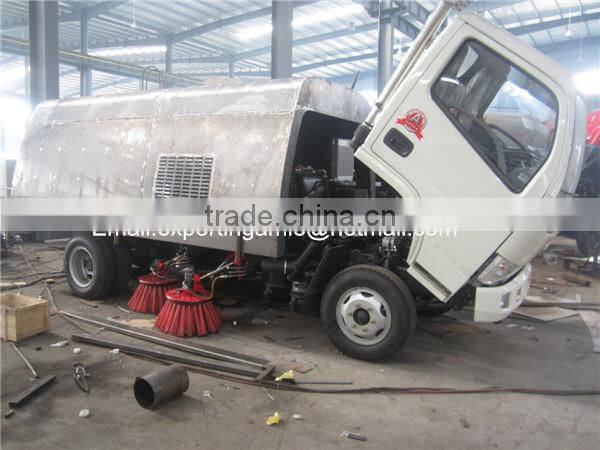

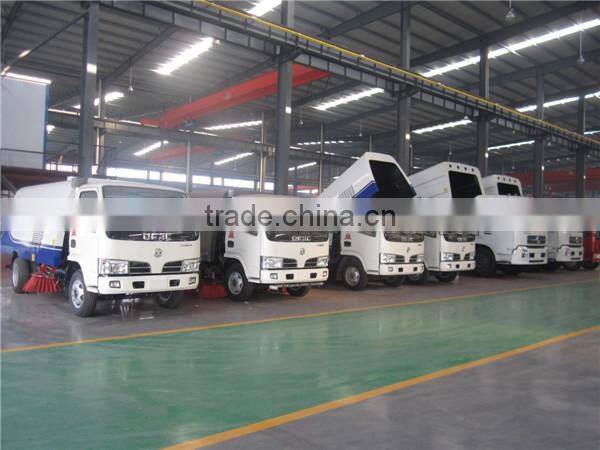

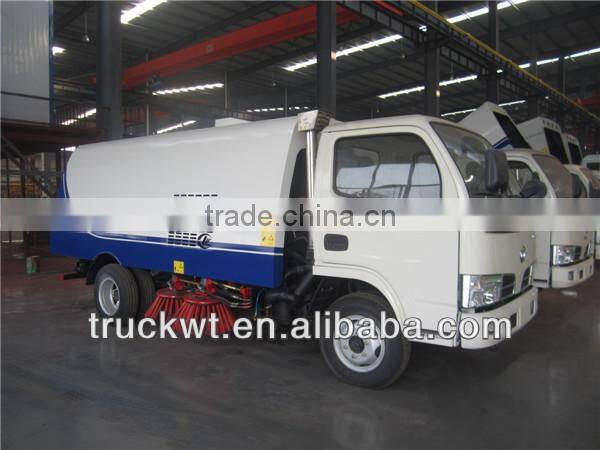

3.small street sweeper pictures
More information of sweeper informations needed, please don't hesitate to let Ms.Amie Nie know by calling at +0086-13872889770
CCC Cerfitication of this CLW5090TSL3 road sweeper
