170hp 4*2 DONGFENG 10ton Refrigeration Box Truck
Refrigeration Box Truck is also called Refrigerator Box Truck , Refrigerated van Truck ,refrigeration transport truck, insulation truck, refrigeration van truck, freezer truck, mechanical refregerated truck,etc. It is fully enclosed truck which is mainly used in transporting frozen or fresh goods,such as frozen foods,milk products, vegetable,fruit,vaccine, medicines,etc. It usually equips with refrigeration unit and polyurethane heat insulation case. It is refrigeration special transport trucks.
Product Note:
1. "CLW" refrigeration truck adop fully enclosed composite structure, inside and outside FRP, middle polyurethane foam heat insulation material, all-around is bonded together with high stength glue ,overall thickness is 8cm.(optional 20cm)
2. Appearance of smooth, flame retardant type insulation material , food-grade gelcoat, seamless whole panel
3. "CLW" seried refrigeration truck have features such as corrosion-resistant, good insulation properties, high strength ,light weight,good chemical stability, long life,etc.
4. This Refrigeration Box Truck adopt DONGFENG 4*2 truck chassis , with good quality America Thermo King refrigerator unit, Min temperature be dropped to -18°C, specially design for transporting refrigerated foods or goods , etc
Main parameter
Whole Truck main technical parameter | |||
Product Model | DONGFENG Refrigeration Box Truck | Overall Dimension(L*W*H)(mm) | 7765×2550×3950 |
Curb Weight(kg) | 5715 | Compartment Dimension(mm) | 5505×2400×2400 |
Wheelbase(mm) | 3950 | Max Speed (km/h) | 90 |
Cab capacity | 2 | Cabin type | DONGFENG 145 single sleeper |
Chassis Technical Parameter | |||
Chassis Model: | EQ1162 | Chassis Manufacturer: | DONGFENG Automobile Co., Ltd |
Gear box | DONGFENG 6 forward and 1 reverse | Transmission type: | Manual |
Axle number | 2 | Traction Type: | 4*2 |
Steering type | LHD or RHD with power steering | Brake System | air brake |
Tire size | 9.00-20,9.00R20 | Number of Tire | 6 with a spare |
Engine specification | |||
Engine Model: |
B170 33
| Engine Brand | DONGFENG |
Emission stand | Euro 3 | Displacement(ml) | 5900 |
Fuel type: | Diesel | Power(kw) | 125(170hp) |
Warranty | 12 months, from the date of supply | ||
other Equipment or performances | 1. Don’t open at the top, rear door opening , | ||

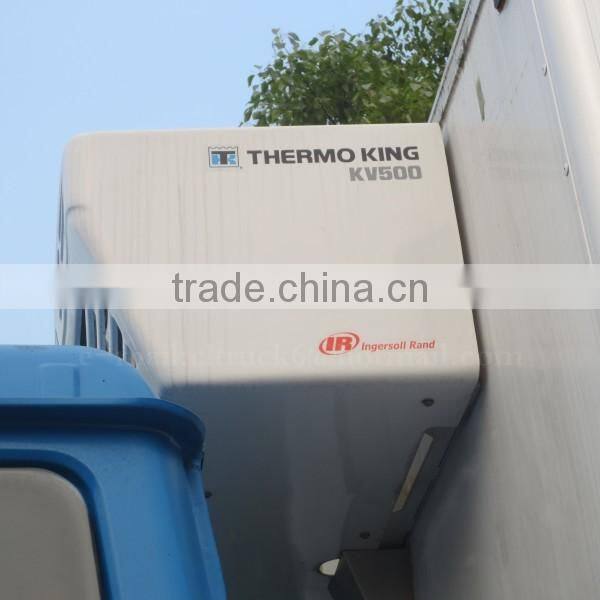

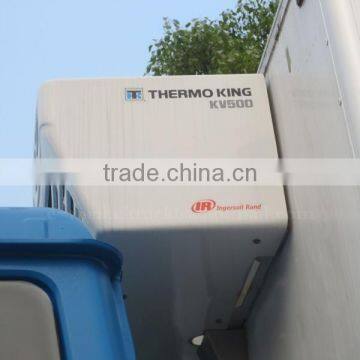

2. Equipped with America Thirmo King refrigeration unit ,minimum temperature can be dropped to -18 °C. | |||
3. Body material: inner , outer FRP, 8 cm polyurethane foam middle, With ventilation slot on all side | |||
4. Equipped with stainless door frame and accessories | |||
Warm tips:
A. Refrigeration unit Brand Optioanl : American CARRIER, Thirmo King, South Korea hanya, China Songhan, hanxue,etc.
B. Minimum temperature optional: -5 °C to -18 °C
C. The refrigeration units that we select have simple structure, convenient operation , reliable working, low energy consumption ,large refrigerating capacity, small noise , easy installation and maintenance and other advantages, it will sure you use safe!

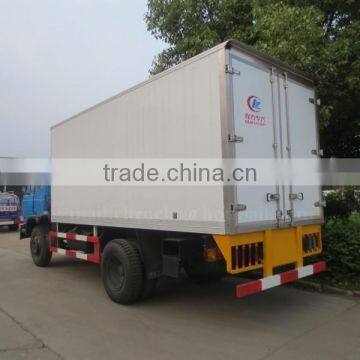

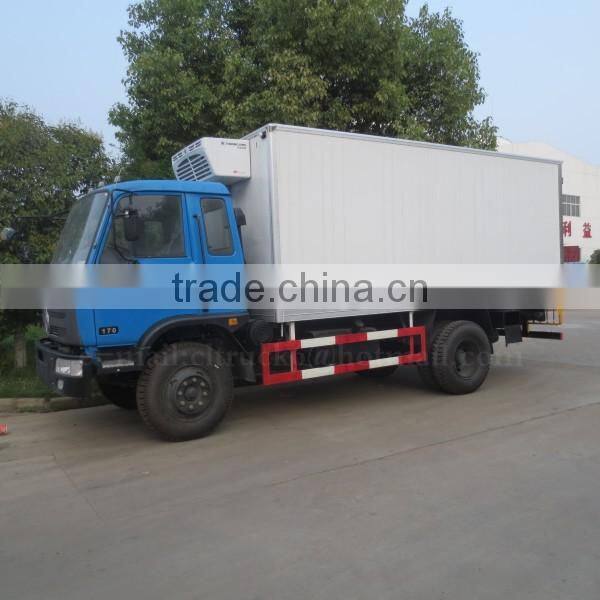

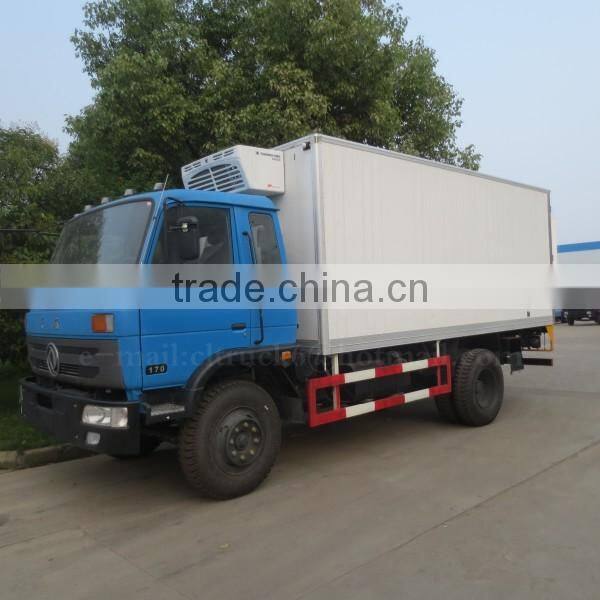

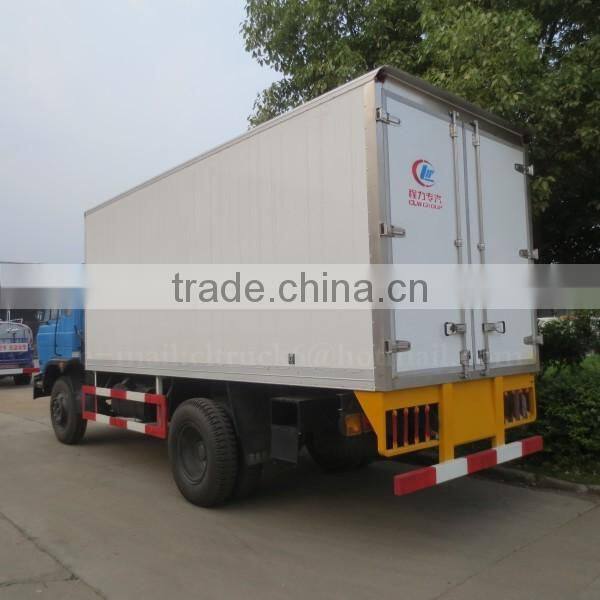

Multi-faceted Show of 170hp 4*2 DONGFENG 10ton Refrigeration Box Truck:
1, Packaging: nude or waxing;
2. Shipping: Ro-Ro ship or bulk ship according to the customer’ order or requirement
1. Factory direct supply: reliable quality and fast delivery;
2. Warranty; from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
3. Tracking service: lifelong
4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.
Brief Introdution of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
Production Equipments:
Product Catalogue:
1. Are you manufacturer or trading company?
We are direct manufacturer;
2. Min Order Quantity:
One unit or one sets;
3. Handling Time:
Within one day;
4. Payment Terms:
30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;
5. Specified delivery date from the Date of Order:
Depend on the detailed request and purchase order quantity.
6. Contact Information:
For any question or request, please contact with me freely according to the following information:
