170 hp 4*2 DONGFENG Insulated Truck 10 ton
DONGFENG Insulated Truck is also called Refrigerated van Truck, refrigeration transport truck, insulation truck, refrigeration van truck, freezer truck, mechanical refregerated truck,etc. It is fully enclosed truck which is mainly used in transporting frozen or fresh goods,such as frozen foods,milk products, vegetable,fruit,vaccine, medicines,etc. It usually equips with refrigeration unit and polyurethane heat insulation case. It is refrigeration special transport trucks.
Product Note:
1. DONGFENG Insulated Truck adop fully enclosed composite structure, inside and outside FRP, middle polyurethane foam heat insulation material, all-around is bonded together with high stength glue ,overall thickness is 8cm.(optional 10cm or 20cm)
2. Appearance of smooth, flame retardant type insulation material , food-grade gelcoat, seamless whole panel
3. "CLW" seried refrigeration truck have features such as corrosion-resistant, good insulation properties, high strength ,light weight,good chemical stability, long life,etc.
4. Factory direct sale,professional, This Truck adop DONGFENG 4*2 truck chassis with 170hp engine, economical, practical, good insulation effect
Main parameter of 170 hp 4*2 DONGFENG Insulated Truck 10 ton
Whole truck Main Technical Parameter | |||
Product Model | DONGFENG Insulated Truck | Overall Dimension(L*W*H)(mm) | 7100×2480×3500 |
Wheelbase(mm) | 3950 | Body internal Dimension(L*W*H)(mm) | 4850×2150×2400 |
F/ R suspension(mm) | 1280/2020 | Number of Axles | 2 |
Actual Payload(kg) | Approx 10000 | Approach/ departure angle (° ) | 30/32 |
Curb weight(kg) | 5705 | Max Speed (km/h) | 85 |
Cab capacity | 3 | Cab Type | One and half row, air conditioning |
Chassis parameter | |||
Chassis Model | EQ1162 | Chassis manufacturer | DONGFENG Motor Co., Ltd |
Gear Box | 6 shift | Transmission type | Manual |
Steering Type | LHD with power steering | Traction Type | 4*2 |
Brake System | air brake | Number of Tire | 6 with a spare |
Leaf Spring number | 9/11+8 | Tire size/type | 9.00-20 |
Engine parameter | |||
Engine Model | B170 33 | Engine manufacturer |
DONGFENG |
Fuel type | diesel | Displacement(ml) | 5900 |
Emission stand | Euro 3 | Power(kw) | 125(170hp) |
Superstructure Parameter | 1. Body material: inside and outside FRP, inner 8cm polyurethane foam | ||
2. Body color: white or optional | |||
Warranty | 12 months, from the date of supply | ||
Warm tips:
A. Refrigeration unit Brand Optioanl : American CARRIER ,THERMO KING, South Korea hanya, China Songhan, hanxue,etc.
B. Isulation temperature range : 5 °C to 15 °C
C. The refrigeration units that we select have simple structure, convenient operation , reliable working, low energy consumption ,large refrigerating capacity, small noise , easy installation and maintenance and other advantages, it will sure you use safe!

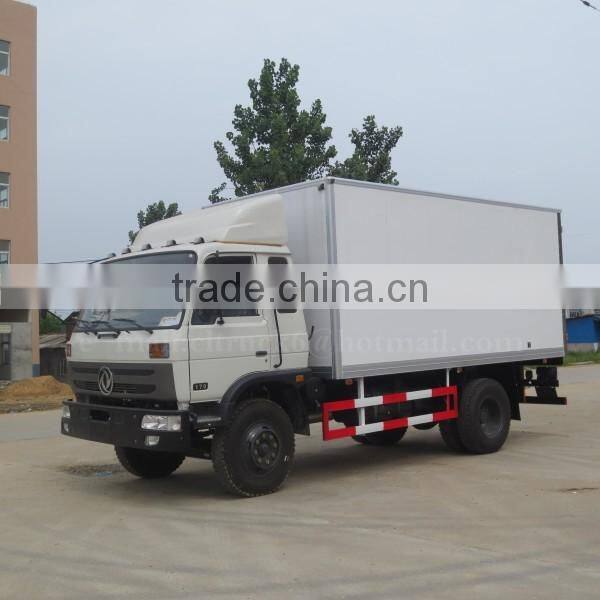

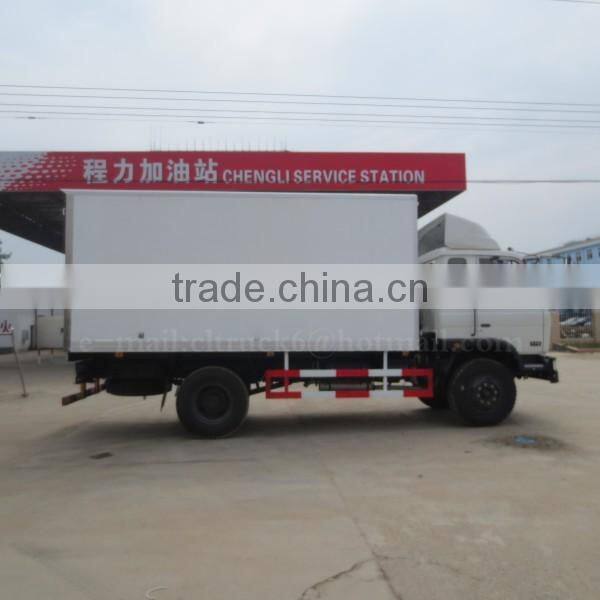

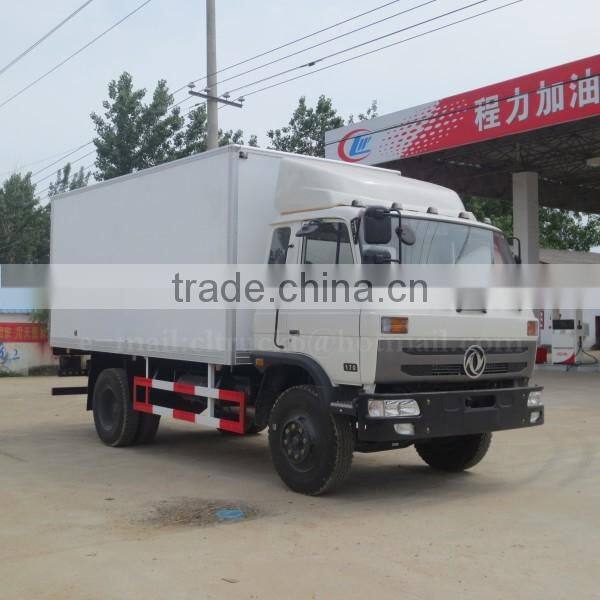

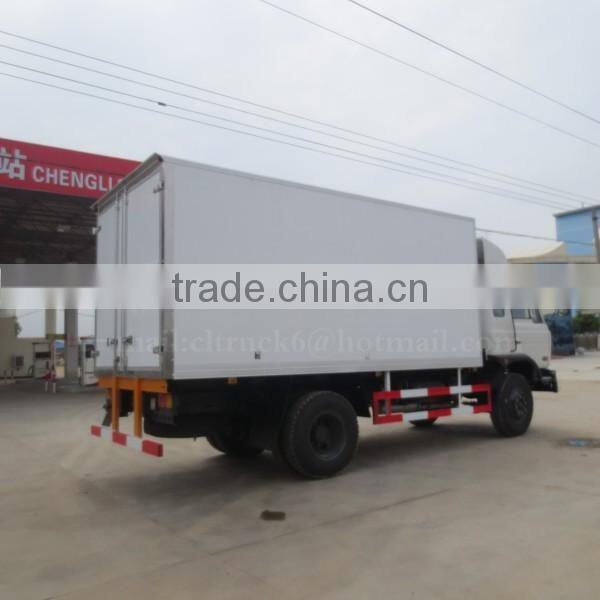

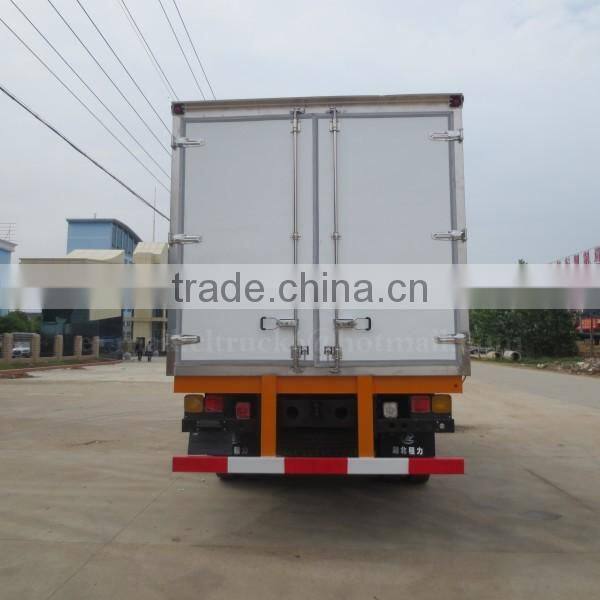

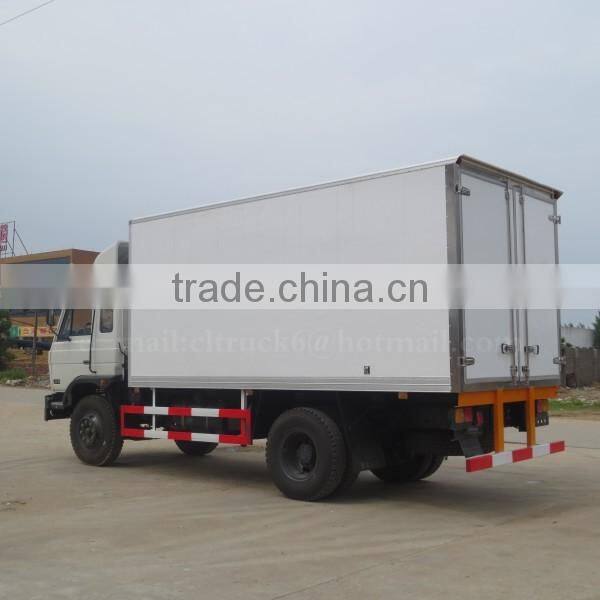

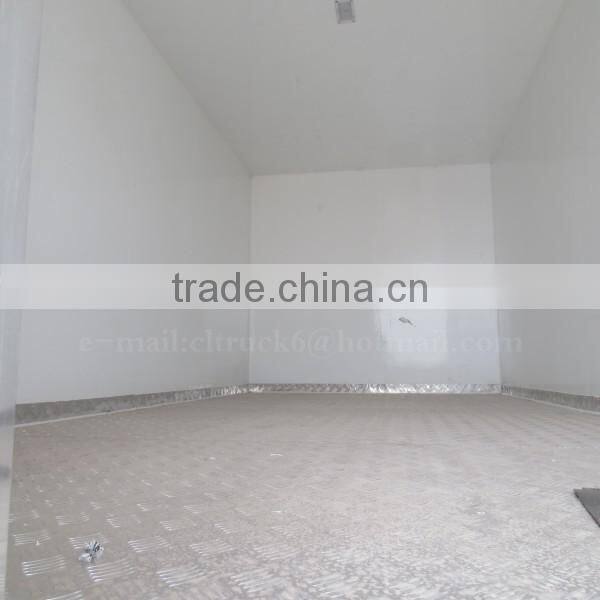

Product Picture of 170 hp 4*2 DONGFENG Insulated Truck 10 ton :
Brief Introdution of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
Production Equipments:
Contact Information:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please check as below:
