NANJING IVECO 4*2 Refrigerated Freeze Truck 9m3
Refrigerated Freeze Truck is also called Refrigerator Box Truck ,Refrigerated van Truck refrigeration transport truck, insulation truck, refrigeration van truck, freezer truck, mechanical refregerated truck,etc. It is fully enclosed truck which is mainly used in transporting frozen or fresh goods,such as frozen foods,milk products, vegetable,fruit,vaccine, medicines,etc. It usually equips with refrigeration unit and polyurethane heat insulation case. It is refrigeration special transport trucks.
Product Note:
1. "CLW" refrigeration truck adop fully enclosed composite structure, inside and outside FRP, middle polyurethane foam heat insulation material, all-around is bonded together with high stength glue ,overall thickness is 10cm.(optional 20cm)
2. Appearance of smooth, flame retardant type insulation material , food-grade gelcoat, seamless whole panel
3. "CLW" seried refrigeration truck have features such as corrosion-resistant, good insulation properties, high strength ,light weight,good chemical stability, long life,etc.
4. Factory direct sale,professional, adop IVECO4*2 whole truck chassis,Easy to use, Min temperature be dropped to -18°C
Main technical parameter of NANJING IVECO 4*2 Refrigerated Freeze Truck 9m3
Product Name | IVECO Refrigerated Freeze Truck | Overall Dimension(L*W*H)(mm) | 5990×2000×3000 |
Load Volume(m3) | 9 | Compartment Dimension(mm) | 3350×1630×1700 |
Gross weight (kg) | 4200 | Approach/ departure angle (° ) | 20/10.5 |
Payload(kg) | 795 | Cab capacity | 3 |
Curb weight(kg) | 3210 | Max Speed (km/h) | 90 |
Chassis Technical Parameter | |||
Chassis Model: | NJ5046XXYNS | Chassis Manufacturer: | Nanjing Automobile Group Co., Ltd |
Brake System | Air brake | Transmission type: | Manual with 5 shift |
Front/ rear suspension(mm) | 1000/1680 | Leaf Spring number: | -/4+3 |
Axle number | 2 | Front/Rear axle load(Kg) | 1600/2600 |
Wheelbase(mm) | 3310 | Front/Rear tread(mm) | 1695/ 1540 |

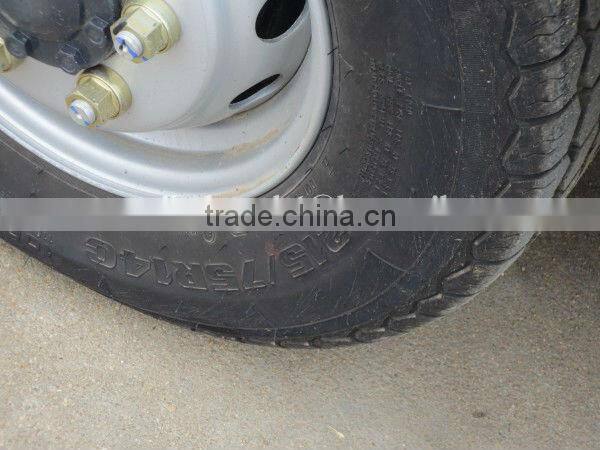

Tire size | 6.50R16C | Traction Type: | 4*2 |
Engine specification | |||
Engine Model: | SOFIM8140.43S3 | Engine Brand | Nanjing Iveco Automobile Co., Ltd |
Emission stand | Euro 3 | Displacement(ml) | 2798 |
Fuel type: | Diesel | Power(kw) | 92(125hp) |
Warranty | 12 months, from the date of supply | ||

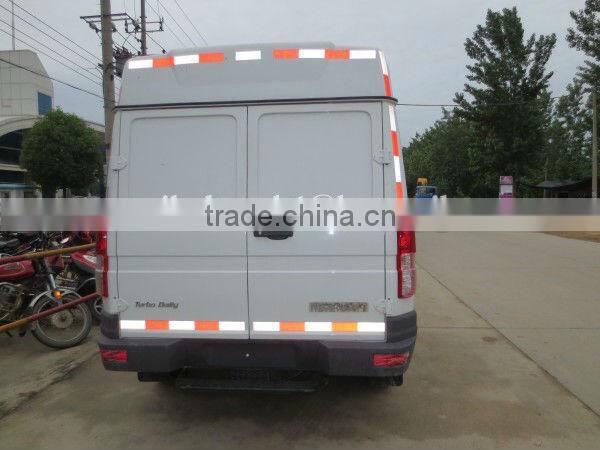

Equipments or performance | 1.Don’t open at the top, and open rear door(Full Size Double Opening) | ||

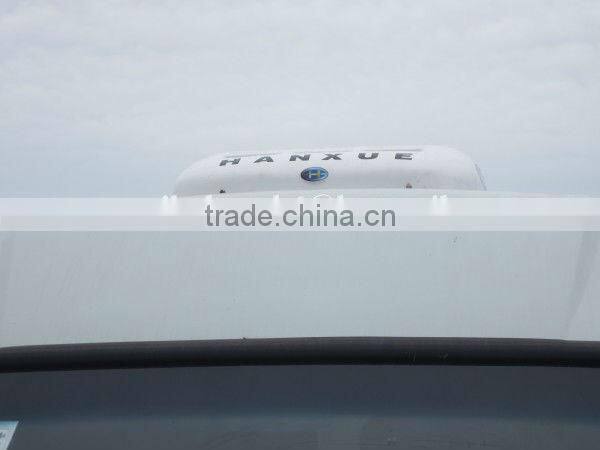

2.Equipped with HANXUE refrigeration unit(or optional) | |||
3. Minimum temperature can be dropped to -18 °C. | |||
4. Material: FRP outside, FRP or Color plate inside, polyurethane foam middle. | |||
Warm tips:
Refrigeration unit Brand Optioanl : American kaili, dalengwang, South Korea hanya, China Songhan, hanxue,etc.
Minimum temperature optional: -5 °C to -18 °C
The above information is just for your reference, if you have different request,please feel free to advise us , We’ll manufacture the trucks as per your request. The refrigeration units that we select have simple structure, convenient operation , reliable working, low energy consumption ,large refrigerating capacity, small noise , easy installation and maintenance and other advantages, it will sure you use safe!

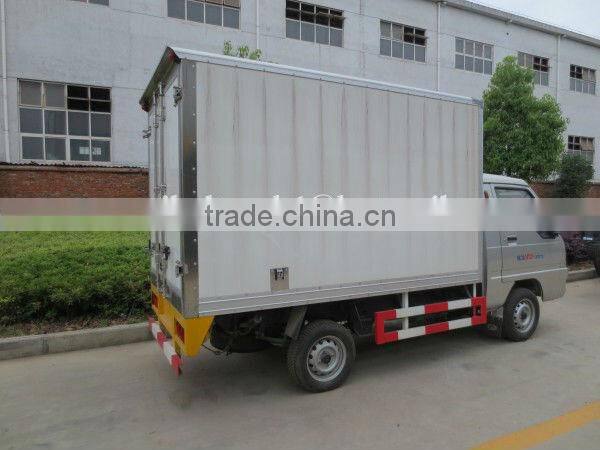

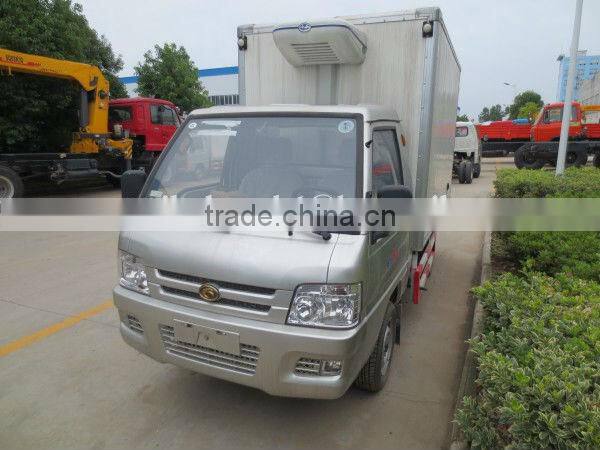

Picture of Refrigerated Freezed Truck show as following:
More picture of Refrigerated Freezed Truck show as following:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
Production Equipments:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
