82Hp 4*2 JAC Frozen Box Truck 2 Ton

82Hp 4*2 JAC Frozen Box Truck 2 Ton photo-1
US$ 13,000 - 16,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
JAC
Model:
HFC1020
Place of Origin:
Hubei,China(mainland)
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name JAC
Model HFC1020
Place of Origin Hubei,China(mainland)
Transmission Type Manual
Condition New
Emission Standard Euro 4
Fuel Type Gasoline
Dimensions (L x W x H) (mm) 4850*1640*2580
Box Dimensions (L x W x H) (mm) 3100*1520*1650
Temperature Range -18 °C-25°C
Gross Vehicle Weight 3150

     82Hp 4*2 JAC Frozen Box truck 2 Ton







                        82Hp 4*2 JAC Frozen Box truck 2 Ton





           Frozen Box truck is also called  Refrigerator Box Truck ,Refrigerated van Truck  refrigeration transport truck, insulation truck, refrigeration van truck, freezer truck, mechanical refregerated truck,etc. It is fully enclosed truck which is mainly used in transporting frozen or fresh goods,such as frozen foods,milk products, vegetable,fruit,vaccine, medicines,etc. It  usually equips with refrigeration unit and polyurethane heat insulation case. It is refrigeration special transport trucks.



Product Note:



1. "CLW" refrigeration truck adop fully enclosed composite structure, inside and outside FRP, middle polyurethane foam heat insulation material, all-around is bonded together with high stength glue ,overall thickness is 10cm.(optional 20cm)



2.  Appearance of smooth, flame retardant type insulation material , food-grade gelcoat, seamless whole panel



3.  "CLW" seried refrigeration truck have features such as corrosion-resistant, good  insulation properties, high strength ,light weight,good chemical stability, long life,etc.



4.  Factory direct sale,professional, adop JAC 4*2 truck chassis with 82hp gasoline engine, economical, practical, Min temperature be dropped to -18°C



Main parameter of   82Hp 4*2 JAC Frozen Box truck 2 Ton





Product Model

JAC Frozen Box truck

Overall Dimension(L*W*H)(mm)

4850×1640×2580

Curb weight(kg)

1480

Body Dimension(mm)

3100×1520×1650

Wheelbase(mm)

2600

Axle number

2

Steering Type

LHD

Max Speed (km/h)

90

Cab Type

Single row, flat proof

Cab capacity

3

Chassis Technical Parameter

Chassis Model:

HFC1020

Chassis Manufacturer:

Anhui JAC Automobile Co., Ltd

Gear Box

5 shift

Transmission type:

Manual

Traction Type:

4*2

Brake System

oil brake

Tire size

6.00-13 8PR,175R14 8PR

Number of Tire

6 with a spare

Engine specification

Engine Model:

        LJ474Q3E2

Engine Brand

LiuZhou Wuling

Emission stand

Euro 4

Displacement(ml)

1298

Fuel type:

Diesel

Power(kw)

60.5(82hp)

Superstructure equipment and performance

1. Don’t open at the top, rear door opening

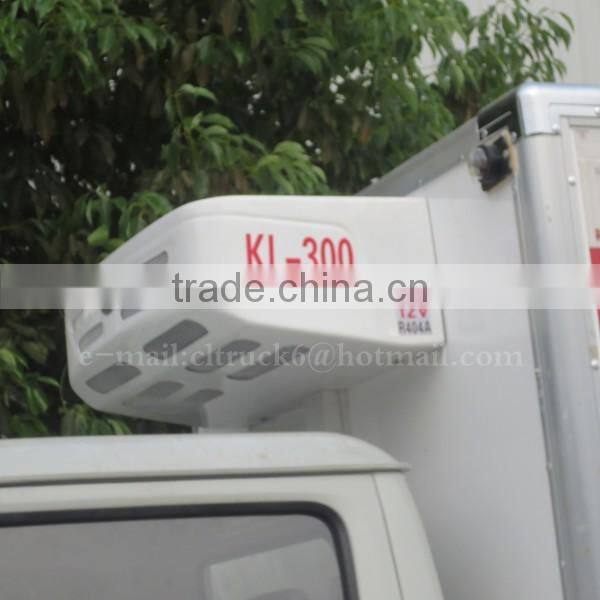

2. Equipped with High quality independentrefrigeration unit

3. Minimum temperature can be dropped to -5 °C.

4. Material: FRP inside and outside, 8cm polyurethane foam middle,

5. Equipped with Stainless door frames and door accessory



Multi-faceted Show of   82Hp 4*2 JAC Frozen Box truck 2 Ton :



82Hp 4*2 JAC Frozen Box truck 2 Ton



82Hp 4*2 JAC Frozen Box truck 2 Ton



 82Hp 4*2 JAC Frozen Box truck 2 Ton

82Hp 4*2 JAC Frozen Box truck 2 Ton





More picture of  Frozen Box truck show as following:



82Hp 4*2 JAC Frozen Box truck 2 Ton





  82Hp 4*2 JAC Frozen Box truck 2 Ton



  82Hp 4*2 JAC Frozen Box truck 2 Ton
