Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Pressure Vessel > 25000 Liter Lpg Skid

25000 Liter Lpg Skid

US$ 10,000 - 20,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Hubei, China

Brand Name:

CLW

Contact Supplier Request Quote Chat Now

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Or any port of China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW

Dimension(L*W*H) 7008*2224*2814

Capacity 25000 liter

Weight 6020KG

After-sales Service Provided Engineers available to service machinery overseas

25000 liter lpg skid

LPG Tank, LPG gas storage tank, LPG gas cylinder tank. LPG tank Truck, LPG mobile tank Trailer.

CLW Group_ChengLi Special Automobile Co.,LTd, which is a famous manufacturer for petroleum industry.

We produce LPG gas cylinder tank from 100 liter to 500 liter

LPG tank for storage from 5000 liter to 120000 liter

LPG tank truck with gas refilling device from 5000 liter to 35000 liter

LPG mobile tank trailer from 30000 liter to 60000 liter, which also could install refilling device.

Introduction

25000 liter lpg skid

Product Description

25000 liter lpg skid, above ground type, China standard or ASME standard

25000 liter lpg skid

Item	Unit	Specification
Product	Model	CLW25-12-12
Loading object	Gas	Propane Gas
Material		Q345R
Designed loading Parameter	Option	Q345R, 16MnIII, Q370R
	Kg/m3	420~ 500
Dimension	mm	700822242814
Net Weight	Kg	6020
Designed Pressure	Mpa	1.77
Max Working Pressure	Mpa	<=1.6
Designed Temperature	C	-20~50
Volume	m³	100
Body thick	mm	12
Cover thick	mm	12
Man Hole	mm	450
Top Safety Valve Port	mm	80
Life Year	Year	10
Input and output
Liquid input Port	mm	DN50 ( 2 Inch)	2.5Mpa
Liquid Output Port	mm	DN80 (3 Inch)	2.5Mpa
Bottom Air gas input Port x2	mm	DN50 (2 Inch)	2.5Mpa
Waste Liquid Output Port	mm	DN80 (3 Inch)	2.5Mpa
Top Gas Let Out Port	mm	DN80 (3 Inch)	2.5Mpa
Liquid Level Indicator Port	mm	DN20	2.5Mpa
Essential Device for option
Safety Valve, Temperature Gague, Pressure Gauge
Option~ flange
Production Standard
China GB 150 Pressure Vessel Manufacturer Standard, Or ASME Standard
Designed Valid Year, at least 10 year

Photo showing

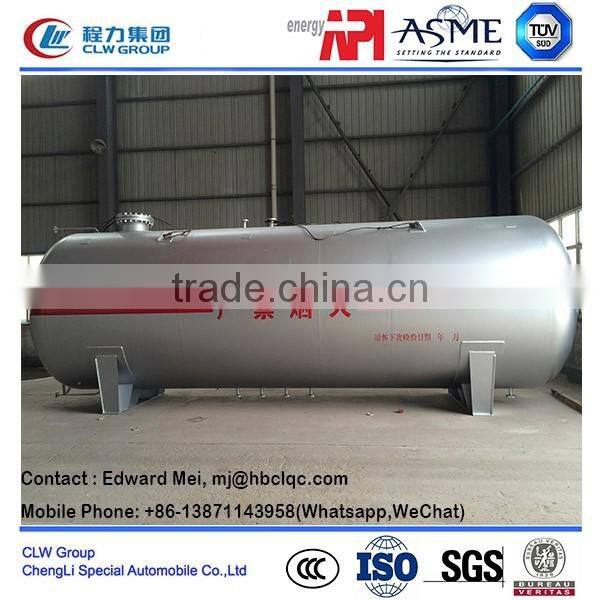

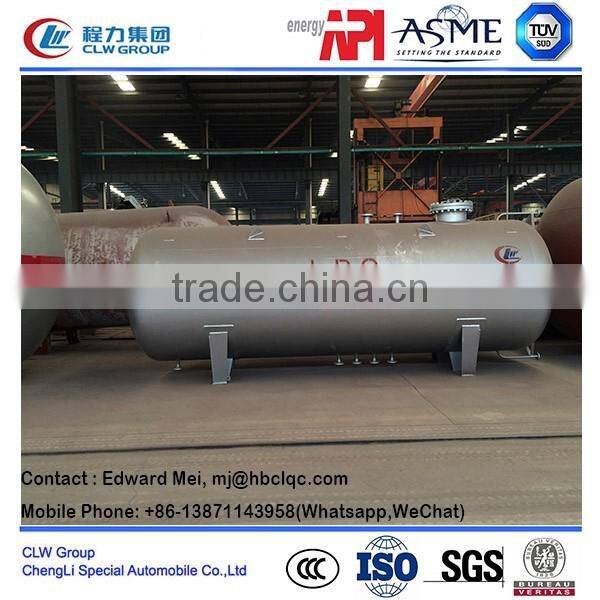

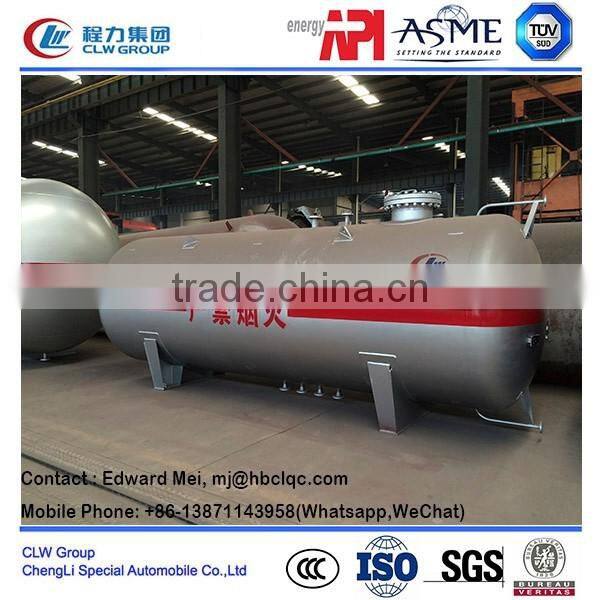

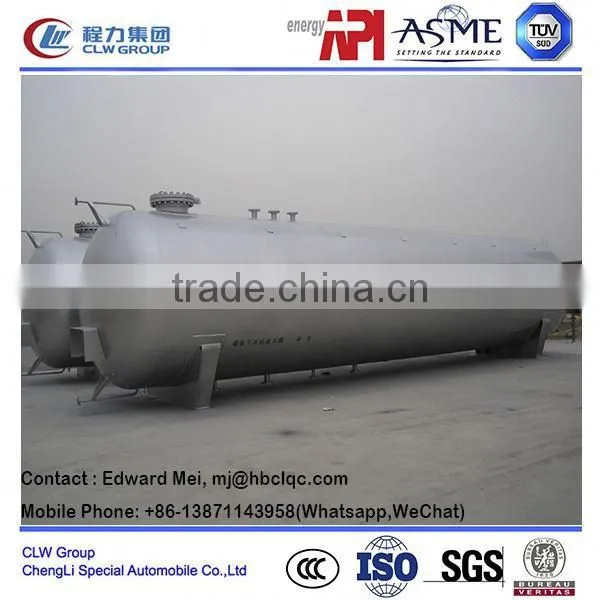

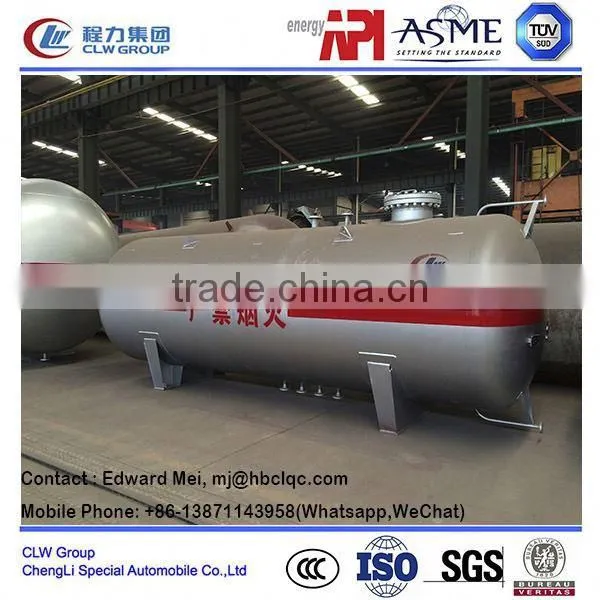

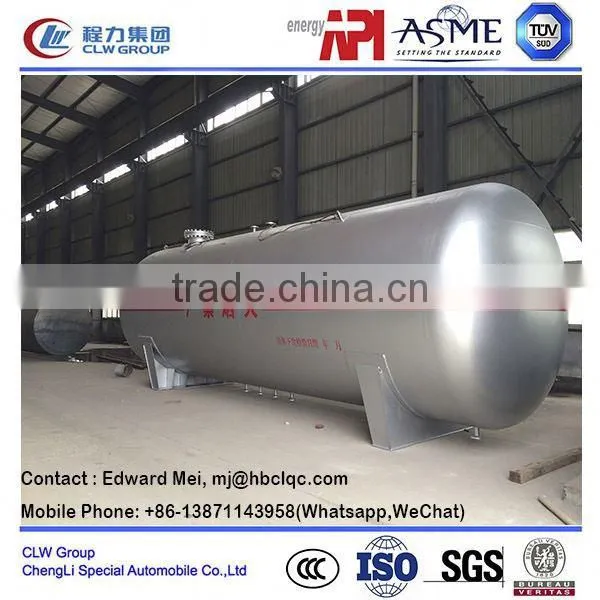

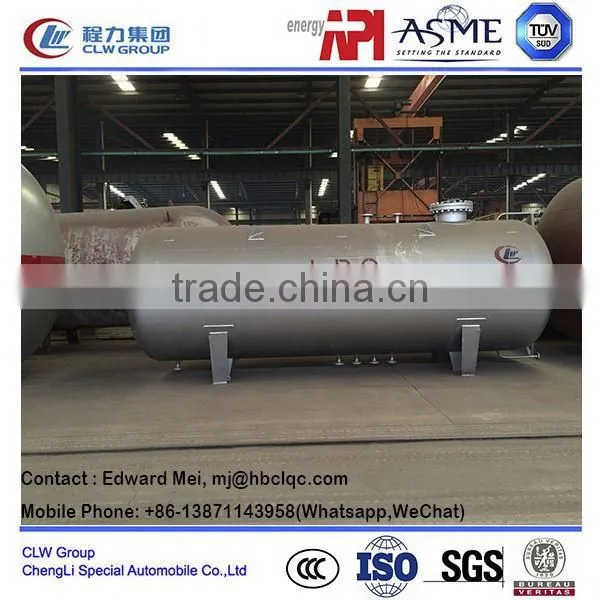

25000 liter lpg skid,LPG gas storage tank

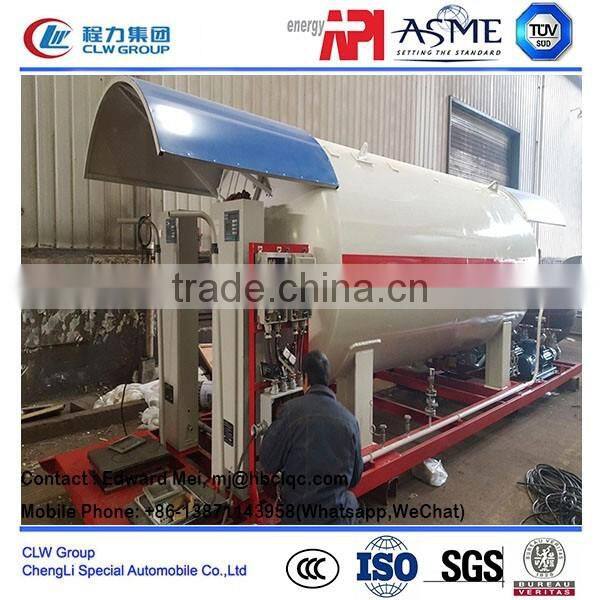

This tank is mainly used for LPG gas storage, propane gas, if for self business, there is more design for option.LPG skid tank design, LPG filling station
25000 liter lpg skid

Packaging & Shipping

Transporting mainly by Bulk ship,

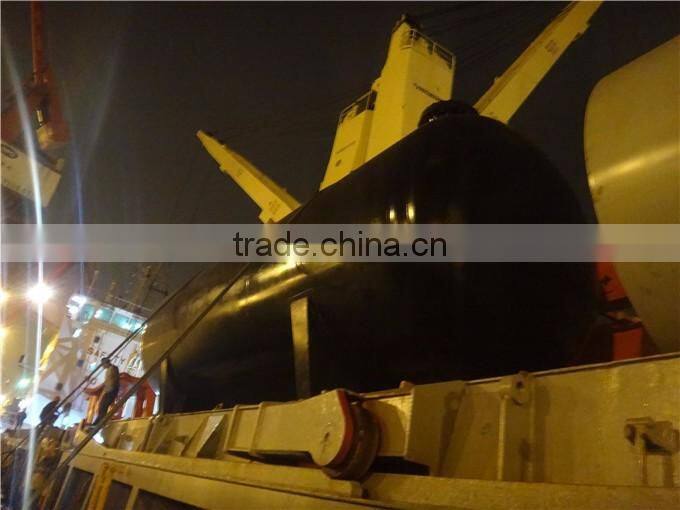

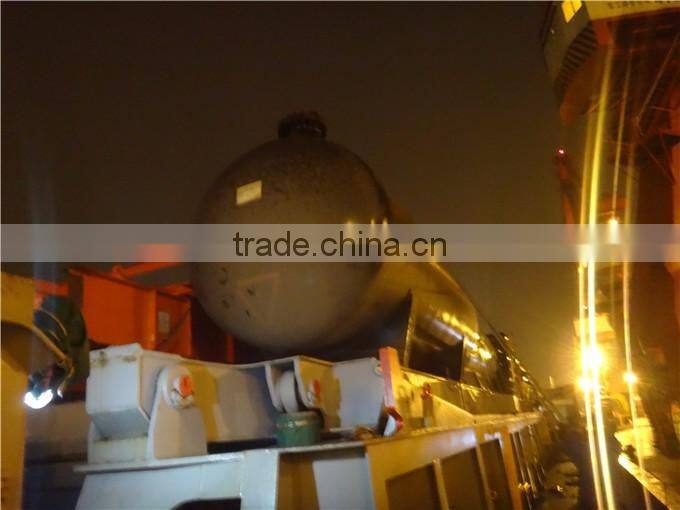

1. Bulk Ship loading photo showing.

3. Special loading method, Some truck could loading into a container, GP type or HQ type container.
