good quality 56 cubic meters shaded lpg gas tanker semi trailer
- 200 Set / Sets per Month
- any port in China
- T/T Credit Card
- windturbine blade lifter trailer
- Modular Trailer
- Nozzle 0433171832,DLLA140P1340 Fuel Injector Nozzle for Construction Machinery
- Three-axle stake semi trailer/stake semi trailer/storage/stake truck/stake high bed cattle semi trailer/ semi trailer
- Three-axle side wall semi trailer/Semi trailer/Cargo Semi trailer/Semi trailer
- Mini tractor tipping trailer
Product Details
OEM No.: | available | Max Payload: | 23520KG | Size: | 12700*2500*3975 |
Place of Origin: | Hubei, China | Brand Name: | CLW | Model Number: | CLW9390GYQ |
Product Description
good quality 56 cubic meters shaded lpg gas tanker semi trailer
Brief introduction of lpg gas tanker semi trailer
The lpg gas tanker semi trailer is also called lpg trailer, lpg gas tank trailer, lpg tank trailer,propane gas transportation trailer, lpg tank semi trailer, lpg gas tanker semi
trailer, lpg transportation trailer,lpg gas tank trailer,etc. It is mainly used to transport
lpg gas, such as propane, liquid ammonia,etc.
Our lpg tank semi trailer are made of lpg gas cylinder special material, they are Q345R or Q370R . It is equipped with pressure gauge,safety relief valve,emergency brake valve,cut off valve, thermometer, inspectionmanhole,drain valve, toolbox,etc.
We, Chengli Special Automobile Co.,Ltd is a professional special vehicle manufacturer in China. We are a real lpg tank trailer, lpg tank truck, lpg storage tank factory.
The lpg storage tank we produce is from 5m3 to 120m3
The lpg tank semi trailer we produce is from 40.5m3 to 59.52m3
The lpg gas truck we produce is from 5m3 to 35.5m3
The production processing and inspection of CLW lpg tank is very strict.Our lpg tank is 100% x-ray test , hydraulic test and export over all the world. The service time of our lpg tank is more than 15 years.The semi-trailer axles can be FUWU brand, BPW brand,etc. The tyres can be steel wire tyre, tubeless tire, Nylon tyre. The landing leg of our semi-trailer can be Jost brand, FUWA brand,etc. The kingpin diameter of our semi-trailer can be 90mm or 50mm.
Technical Parameters of 56m3 liquid propane gas transportation semi trailer
Item | Specification |
Truck Brand | CLW (our brand) |
Tank Capacity(L) | 56,000 |
Loading Medium | LPG propane |
Design Pressure(MPa) | 1.61 |
| |
Design Temperature(degree Celsius) | 50 |
Overall Dimension(mm) | 12700x2500x3975 |
Tank Material | Q370R |
Gross Vehicle Weight(kg) | 40000 |
Payload(kg) | 23520 |
Curb Weight(kg) | 15480 |
Axle No. | 3 |
Axle Specification | 13T FUWA axle |
Wheelbase(mm) | 6865+1310+1310 |
Landing Gear | 28T FUWA |
King Pin | 2.5'' ,3.5'' is optional |
Tire Specification | 12.00R22.5 12PR |
Tire Number | 12 tires |
Leaf Spring No. | -/7/7/7 |
Axle Load(kg) | -/24000(parallel installed) |

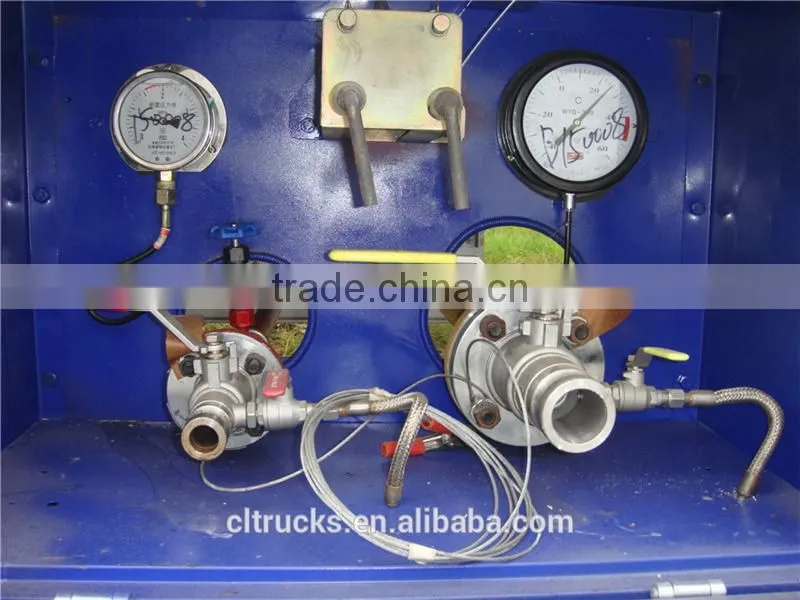

Basic equipments: ABS, Emergency valve, Pressure gauge, safety relief valve,emergency brake valve,inspection manhole,drain outlet, control box | |
Optional :Tank Shape: cylindrical, global |

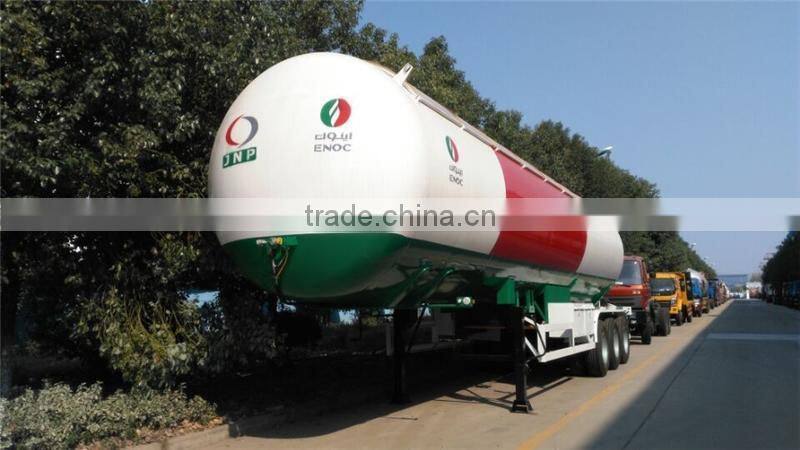

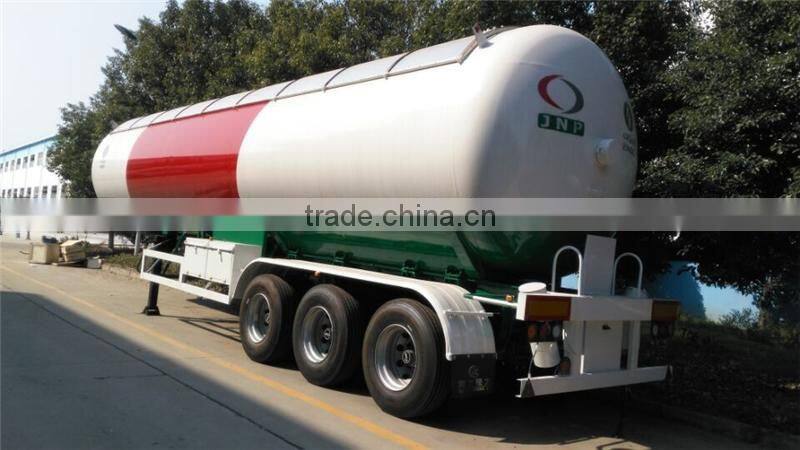

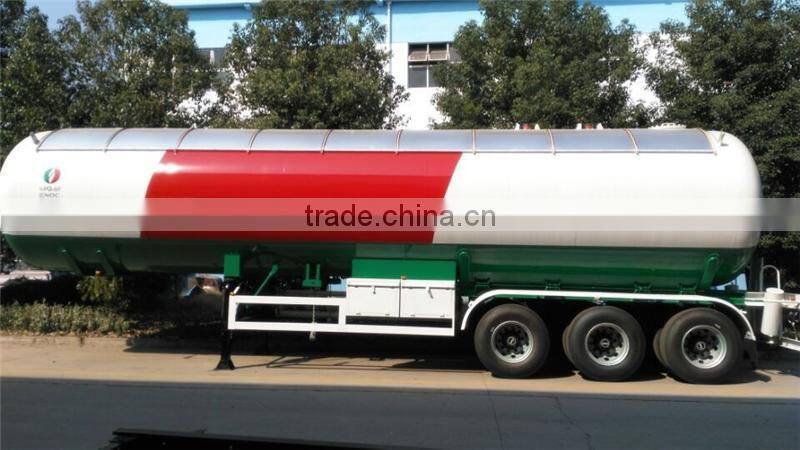

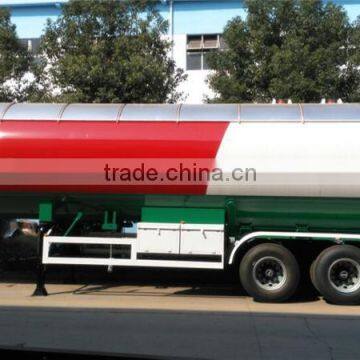

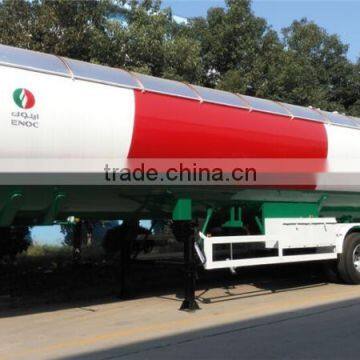

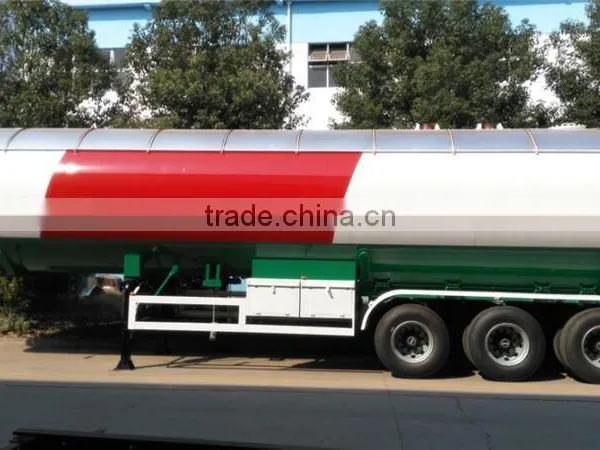

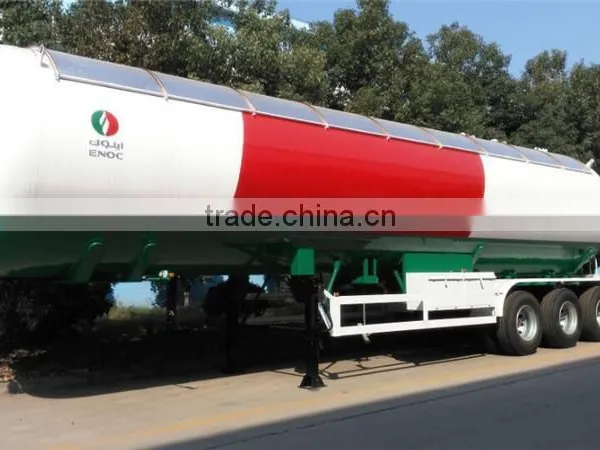

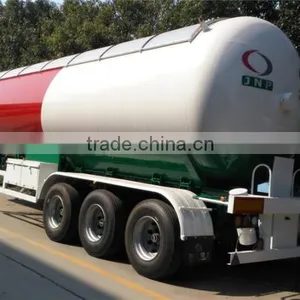

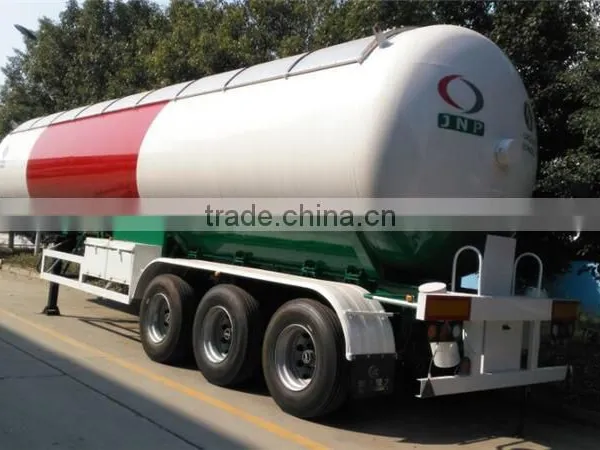

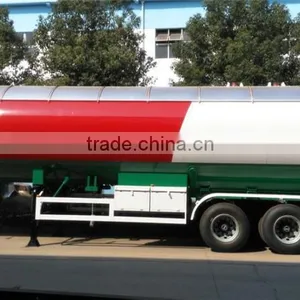

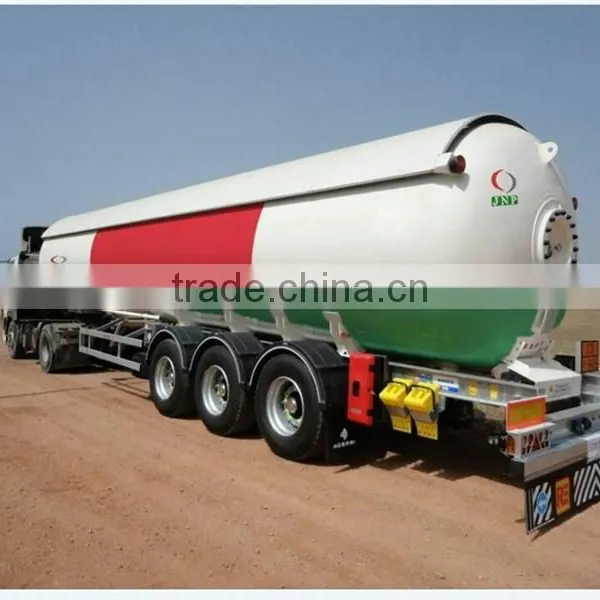

3 axles 56000 liters lpg gas transport semi trailer for sale
Above lpg semi trailer pictures and lpg trailer technical parameters is just for reference. More details or lpg trailer price, please feel free to contact me.
More lpg gas transportation semi tariler
Besides lpg semi trailer, we also produce lpg tank, lpg transportation truck, lpg tank container, lpg dispenser truck, skid lpg gas station.

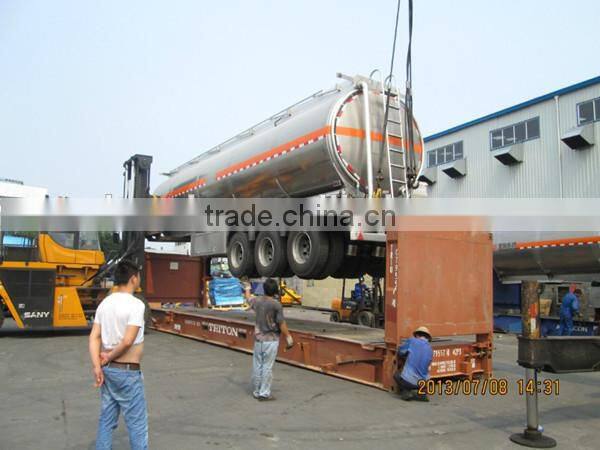

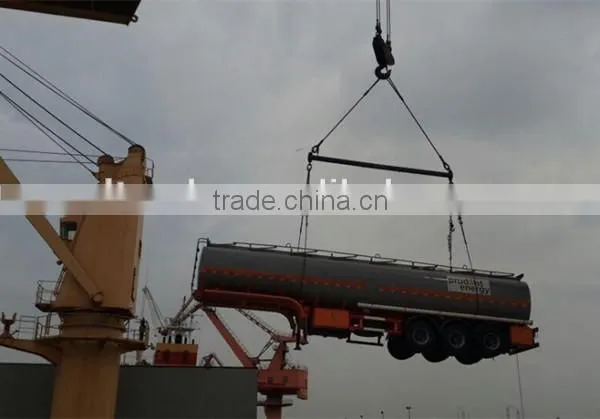

Packaging of lpg semi trailer
Our lpg tank trailer is also nude with wax when export to freign country. They are usually shipped by open container and bulk carrier ship.
We, Chengli Special Automobile Co., Ltd., were established in 2004. We are a professional manufacturer and exporter that is concerned with the design, development and production of special trucks, including LPG trucks, cement mixer trucks, water trucks, refrigerator trucks, cargo trucks,garbage truck, oil tanker truck,wrecker towing truck, truck mounted crane and others.
We are located in Suizhou City, Hubei Province, in the middle of China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
Covering a large area, we now have over 1000 employees and an annual sales figure that exceeds USD 5 Million. We are currently exporting 30%-40% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001:2008 certification and Chinese TOP 500 Certificate.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Africa, Southeast Asia, Middle and South America, the Middle East and other regions.

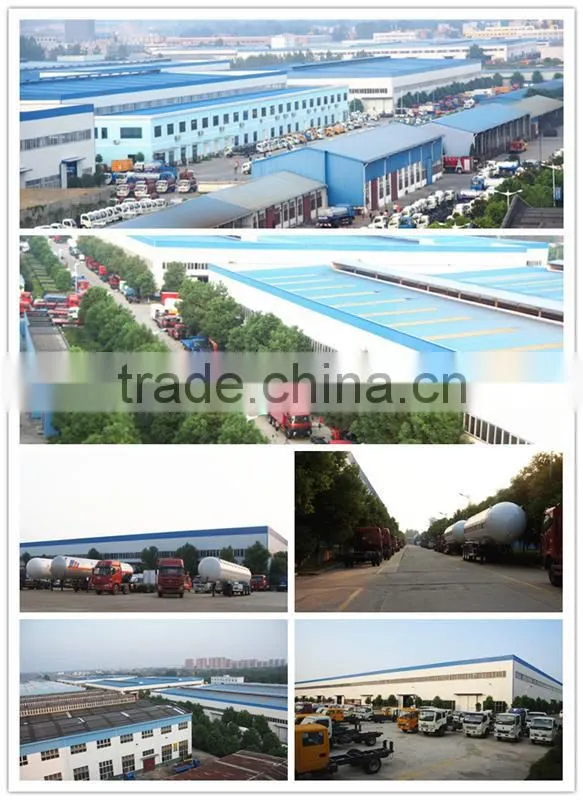

Chengli Factory Show

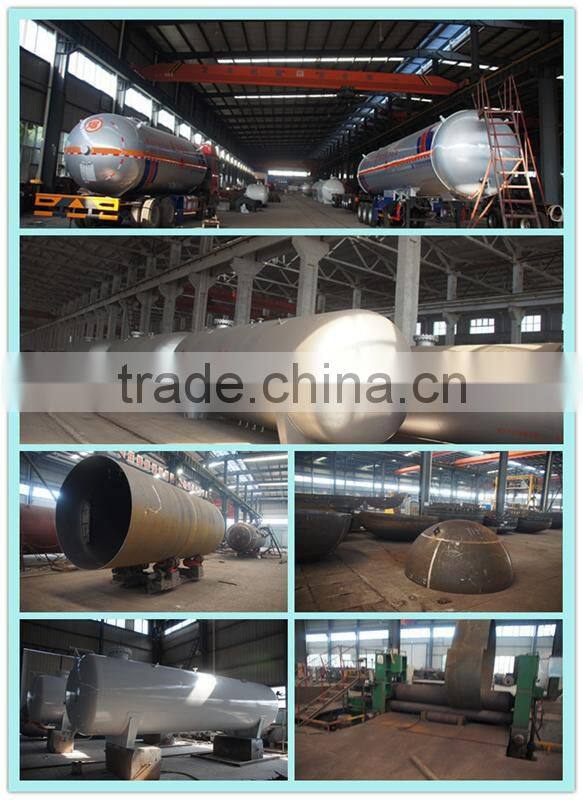

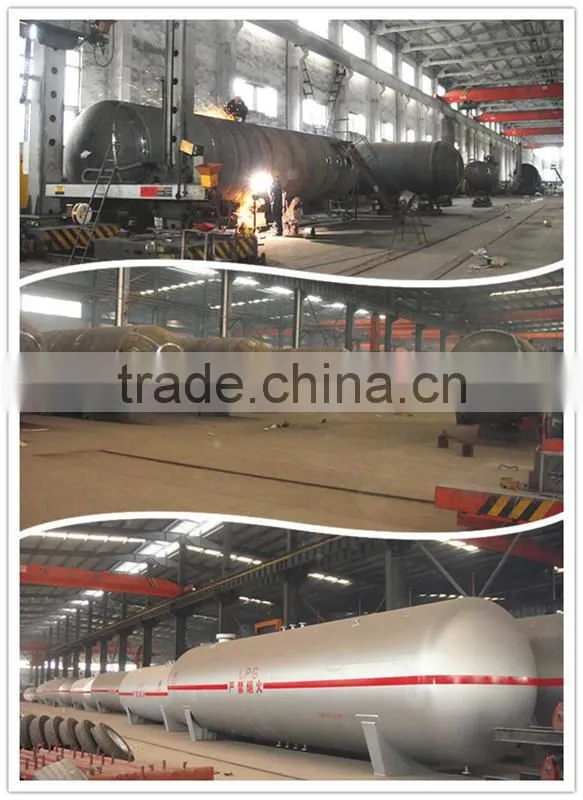

LPG tank workshop Show
If you are interested in our lpg tank, lpg semi trailer, lpg gas transport truck, please feel free to contact me for more details, latest lpg tank price, lpg truck picures.
