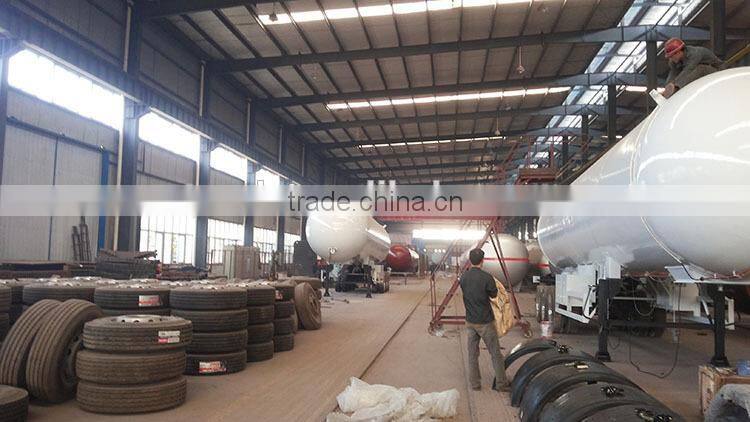

Currently our company produce the lpg tank, lpg tank trailer,lpg tank truck to loading and transporting.
The LPG tank volume from 5~120 m3 for above ground, 5~100 m3 for underground.

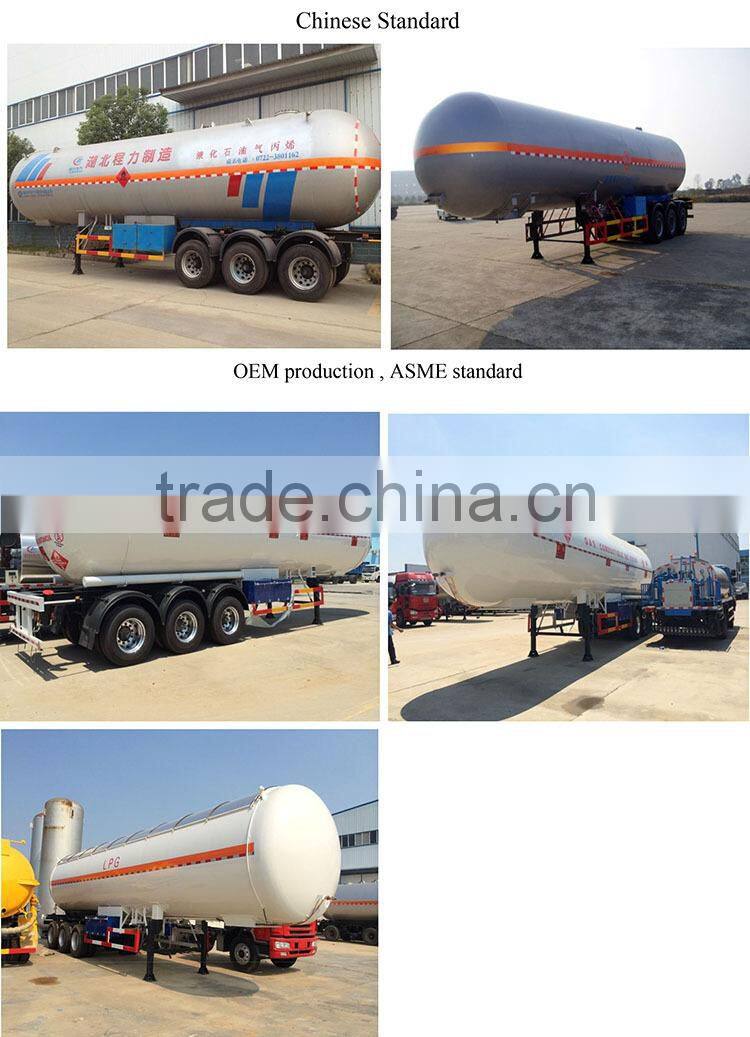

The LPG tank trailer volume from 30~60 m3 with two axles or three axles.
The LPG tank truck with the volume from 5~35 m3.

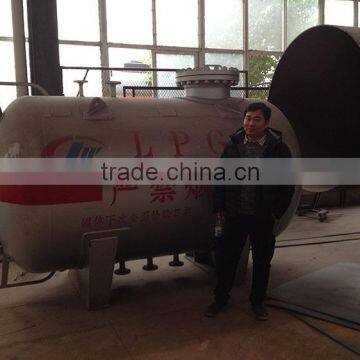

25m3 lpg storage tank, gas lpg cylinder, lpg cooking gas cylinder,high pressure lpg gas cylinder
25m3 lpg storage tank, gas lpg cylinder, lpg cooking gas cylinder,high pressure lpg gas cylinder
Items | Unit | Parameter | |||||||||||||||
Product | LPG Tank | ||||||||||||||||
Model | GLG1600-10 | GLG2100-20 | GLG2400-32 | ||||||||||||||
Loading subject | propane | propane | propane | ||||||||||||||
Whole Dimension | mm | 5940*1620*2040 | 6724*2024*2614 | 7508*2428*2600 | |||||||||||||
Tank Dimension | mm | DN1600*10 thick*5940 length | DN2000*12 thick*6724 length | DN2400*14 thick*7508 length | |||||||||||||
Tank Volume | m 3 | 10 cubic meter | 20 cubic meter | 32 cubic meter | |||||||||||||
Curb Weight | kg | 3165 | 5150 | 7410 | |||||||||||||
Designed pressure | Mpa | 1.77 | 1.77 | 1.77 | |||||||||||||
Working pressure | Mpa | <= 1.6 | <= 1.6 | <= 1.6 | |||||||||||||
Working temperature | C | <= 50 | <= 50 | <= 50 | |||||||||||||
Water testing pressure | Mpa | 2.22 | 2.22 | 2.22 | |||||||||||||
Air testing pressure | Mpa | 1.77 | 1.77 | 1.77 | |||||||||||||
Tank materia | Q345R , 16 Mnlll, Q370R | ||||||||||||||||
Manufacturer Standard | China GB 150 pressure vessel manufacturer standard. | ||||||||||||||||
Remark | Equipment with Safety Valve, Liquid gage, Pressure gage, Temperature gage, Urgent cut off valve, | ||||||||||||||||
25m3 lpg storage tank, gas lpg cylinder, lpg cooking gas cylinder,high pressure lpg gas cylinder

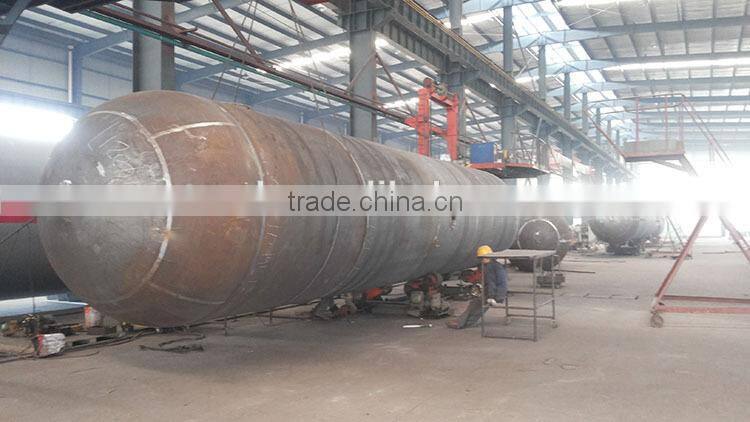

Materials rolled into tank, Q345R, Q370R, 16MnIII,

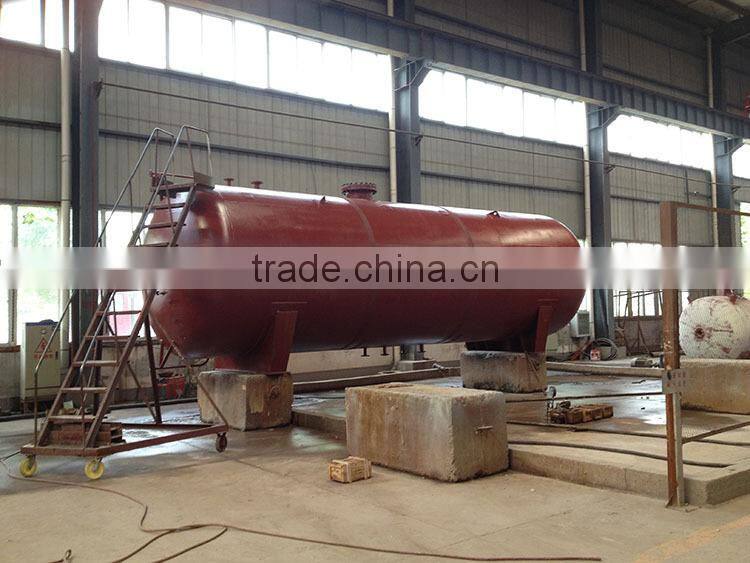

Water Pressure testing.

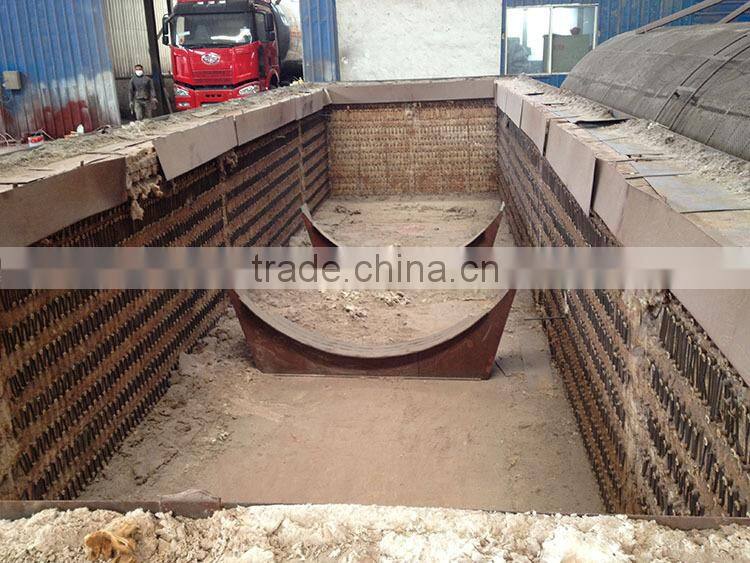

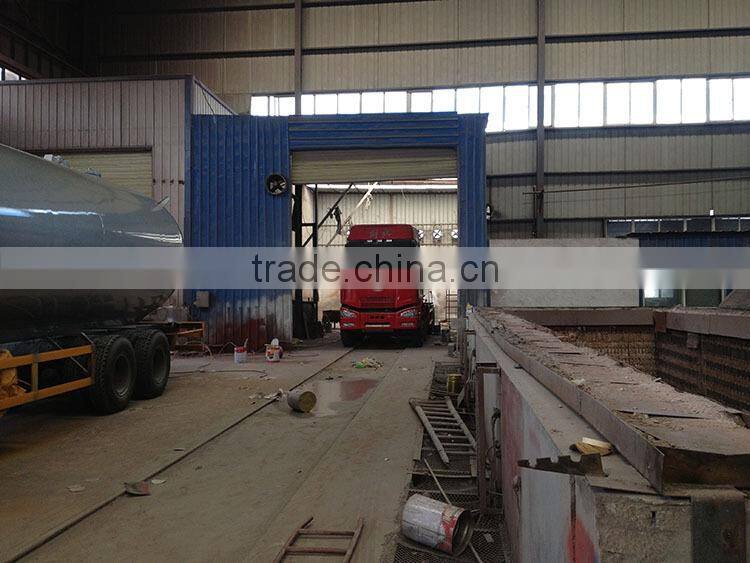

Tank heating testing room.

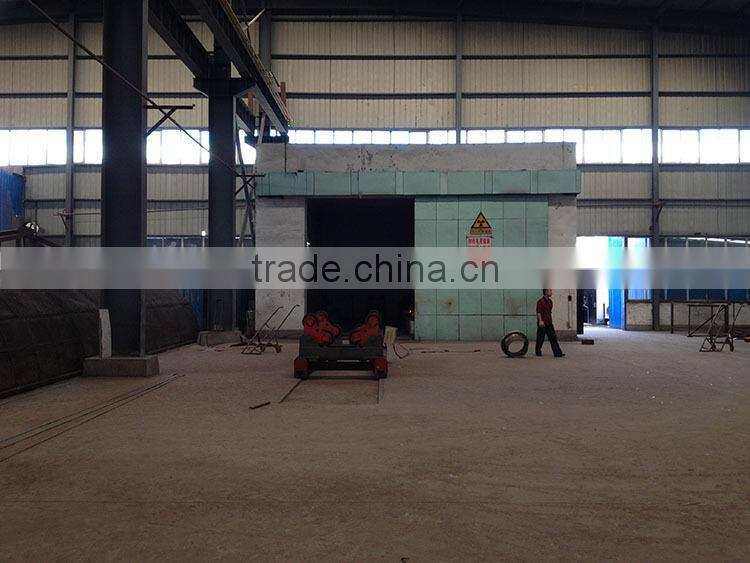

X-ray testing for the tank side cover welding.
-----------------------------------------------------------
Manufacturer Standard: GB150, China. which is stricter than ASME standard.
We also could produce the product according the ASME standard.
-----------------------------------------------------------
Certificate: CCC, ISO, BV, which is showing on our website.
-----------------------------------------------------------
25m3 lpg storage tank, gas lpg cylinder, lpg cooking gas cylinder,high pressure lpg gas cylinder
Welcom for you inquiry.
...
