dongfeng 4x2 small oil tanker for sale
Introduction of our small oil tanker
1. Tank material : we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic CNC vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Optional: reading meter before outlet and inlet,self-discharge valve at rail or side of tank body, compatment quantity according to the demand.

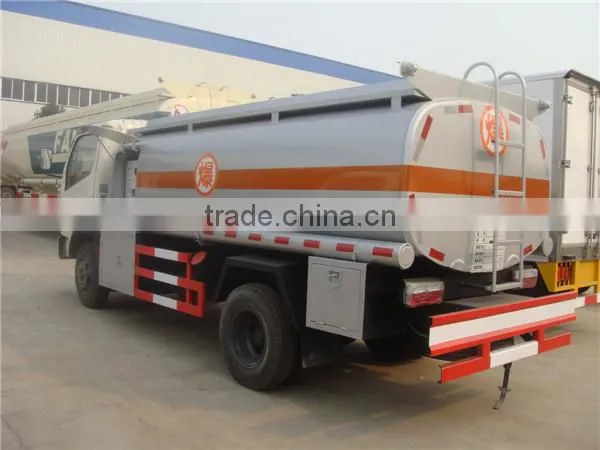

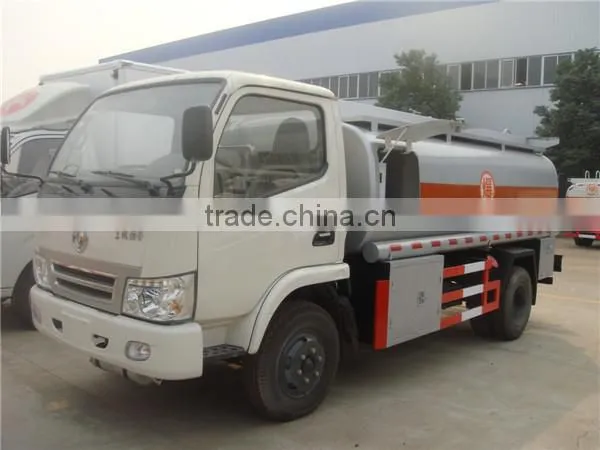

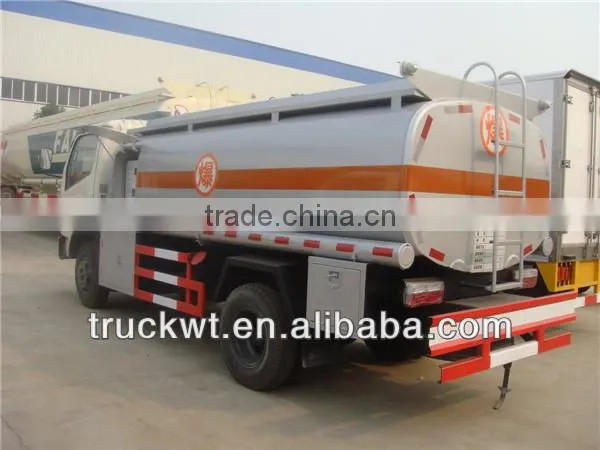

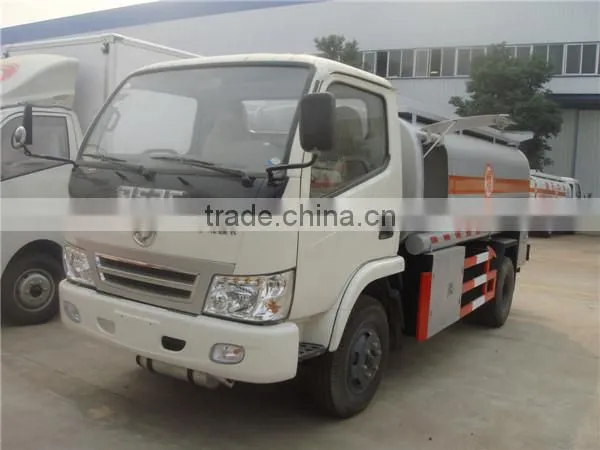

Dongfeng 4x2 small oil tnaker Pictures show
Oiling Machine of this small oil tanker
Technical parameters
Main Technical Parameter | |||
Product Name |
Oil Tanker |
Gross Vehicle Weight (kg) |
4495 |
Fact Payload (kg) |
4200 |
Curb Weight (kg) |
3950 |
Tank Capacity(L) |
7495 |
Cab Allowed Persons |
2 |
Axle No. |
2 |
Wheelbase (mm) |
3300 |
Appr/Dep Angle(º) |
17/13 |
F/R Suspension(mm) |
1032/1663 |
Axle Load(kg) |
1675/2820 |
Max Speed(km/h) |
80 |
Chassis Technical Parameter | |||
Chassis Model |
EQ1040TJ20D3 |
Chassis Name |
Truck Chassis |
Chassis Brand |
DONGFENG |
Manufacturer |
Dongfeng Automobile Co.,LTD |
Overall Dimension (mm) |
5820×1940×2080 |
Tyre No. |
6 with 1 spare tyre |
App./ Dep. Angle(º) |
19/15 |
Tyre Spec. |
7.00-16 |
Leaf Spring No. |
8/9+5 |
Front Track (mm) |
1506 |
Fuel Type |
Diesel |
Rear Track (mm) |
1442 |
Drive Type |
4x 2 |
Brake System |
Air brake |
Engine Technical Parameter | |||
Engine Model |
CY4102-C3F |
Emission Standard |
Euro III |
Displacement ( mL ) |
3856 |
Power |
70Kw/95hp |
Cylinder No. |
4 in line |
Engine Type |
Inter-cooling charged, water cooling |
|
Remarks:*** Basic equipments: PTO, gear pump, access ladder,
anti-slip walkway, handrail, manhole, fire extinguisher, side lamps and reflective stickers etc.
***Optional: Emergency valve, Refueling machine, flow meter, rolling hose, nozzle, compartment quantity;
epoxy coating inside the tanker; Tank material: carbon steel, stainless steel, aluminums alloy…..
Bottom loading system….. | |||
More photoes, parameters, latest price or other informations of our oil transport truck, please don't hesitate to let me know.
Producing Licence of our oil tanker truck

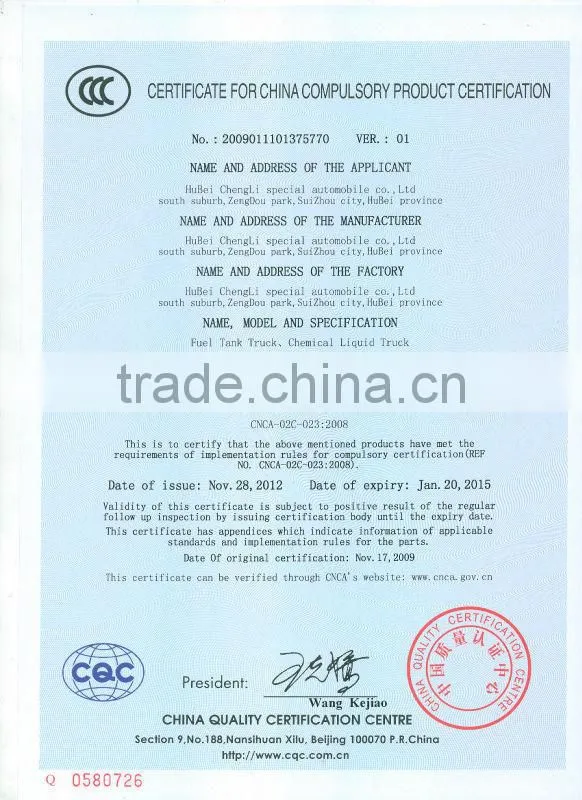

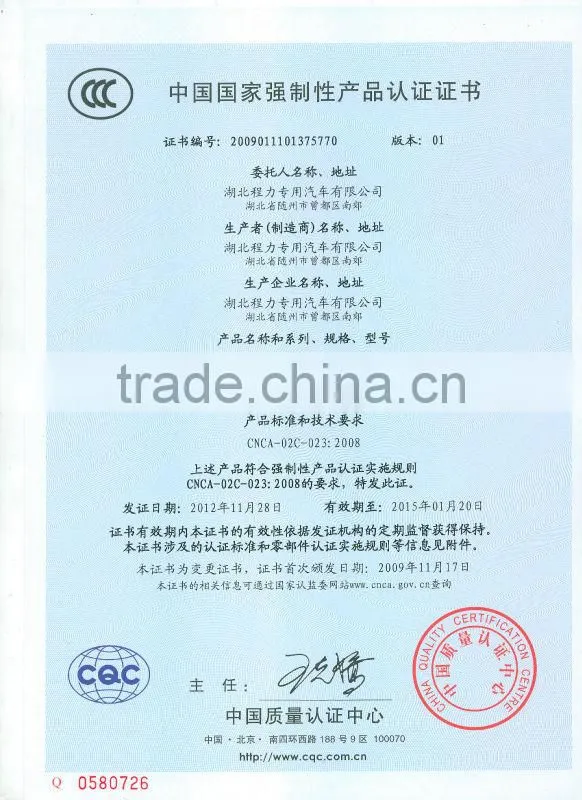

China Compulsory Certification of our oil transport truck
More trucks we offer
1. Water Tanker/Sprinkler Truck/Pesticide Spraying Truck/Dust Removable Truck
2. Garbage Truck/Garbage Compactor/ Sealed Garbage Truck/ Skip Loader/ Self-loader/ Butt-type Garbage Truck/ Hook Loader
3. Sewage Suction Truck/Fecal Suction Truck/ Sewer Cleaning Truck
4. Aerial Working Truck/ Crane Truck
5. Road Wrecker
6. Road Sweeper
7. Oil tanker/ Refuelling Truck
8. LPG Storage Tanker
9. Chemical Liquid Tanker
10. Bulk Cement Tanker
11. Milk Transport Truck
12. Concrete Mixer/ Concrete Pump Truck
13. Tractor Head
14. Asphalt Distributor
15. Fire Fighting Truck
16.Van Truck/ Refrigerator Truck/ Explosion Proof Truck
17. Mobile Stage Truck/ LED Advertising Truck
18. Dump Truck/ Tipper
19. Feed Delivery Truck
20. Semi-trailer/ Flatbed Semi-trailer/ Container Semi-trailer/ Skeleton Semi-trailer/ Low flatbed Semi-trailer/Stake Semi-trailer/LPG tanker Semi-trailer
Contact Information
Further information, please feel free to contact me or visit our factory in China. We will offer you our best service.
