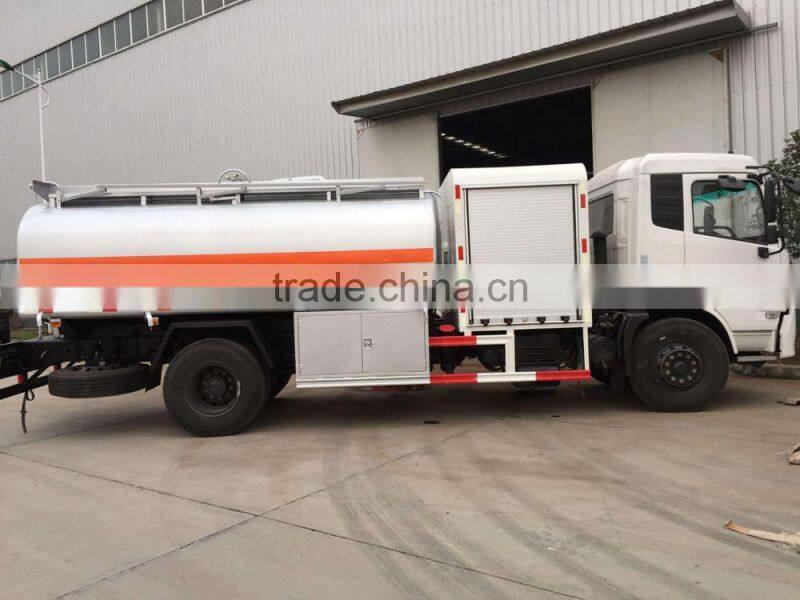

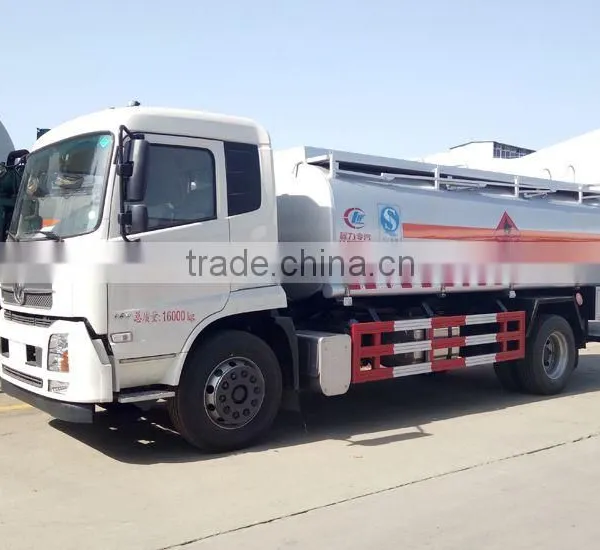

Chinese Manufacture Dongfeng Gasline Transport / Refueling Truck
| Technology Specifications | ||
| General | ||
| Product Name | Chinese Manufacture Dongfeng Gasline Transport / Refueling Truck | |
| Drive Type | 4*2 | |
| Gross Weight(kg) | 18000 | |
| Curb Weight (kg) | 6800 | |
| Approx.Overall Dimensions (mm) | 8370×2500×3250 | |
| Engine | ||
| Engine Model | ISB210 40 | |
| Engine Brand | Cummins | |
| Fuel Type | Diesel | |
| Power | 155kw/210HP | |
| Emission Standard | Euro 4 (Euro 3 and Euro 5 are optional) | |
| Displacement(ml) | 6700 | |
| Engine Type | 6 cylinders in line, inter cooler, supercharged diesel engine | |
| Chassis | ||
| Chassis Brand | Dongfeng | |
| Chassis Model | DFH1180BX | |
| Max speed(km/h) | 80 | |
| Cabin | One row with single sleeper, titled, flat roof,with ac; 3 people | |
| Tire No. | 6+1 | |
| Tire Specification | 10.00R20 | |
| Springs number | 7/9+6,8/10+8 | |
| Front/ Rear overhang(mm) | 1430/2240 | |
Fuel comsumption(L/100Km): | 28.9 | |
| Axle No. | 2 | |
| Approch/ Departure angle( ° ) | 20/16 | |
| Front/ Rear thread(mm) | 1880/1800 | |
| Wheelbase(mm) | 4700 | |
| Steering Wheel | Left hand drive with power-assisted (RHD is optional) | |
| Gear Box | 6 speed forward with 1 reverse, manual | |
| Brake | Air brake with ABS | |
| Tank | ||
| Tank Volume(L) | 14000 | |
| Tank size(mm) | 5600×2200×1500 | |
| Tank Shape | Rectangular | |
| Tank Material | 5mm Carbon Steel(Stainless steel is optional, 6mm thickness is optional) | |

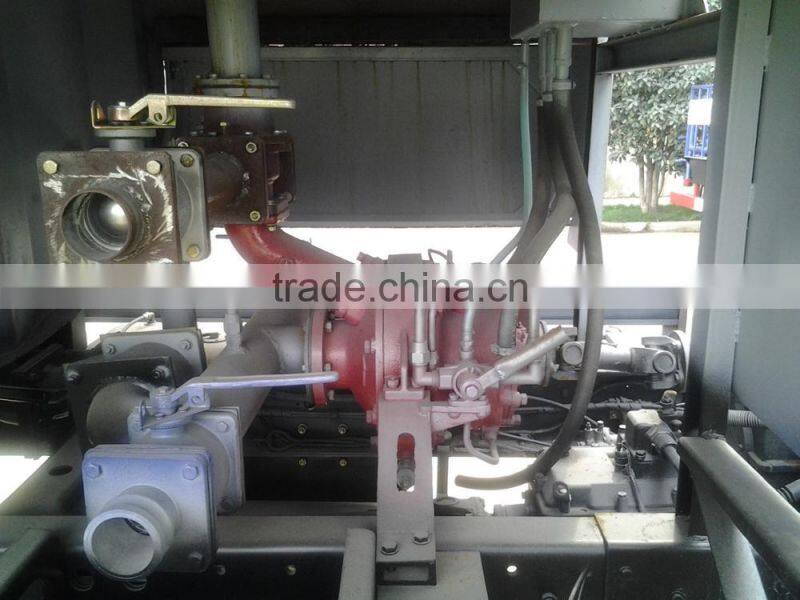

| Refueling equipments | Equipped with refueling machine,hose reel, oil gun, pump, 2 nos oil hose | |
Chinese Manufacture Dongfeng Gasline Transport / Refueling Truck
Chinese Manufacture Dongfeng Gasline Transport / Refueling Truck
Chinese Manufacture Dongfeng Gasline Transport / Refueling Truck
Chinese Manufacture Dongfeng Gasline Transport / Refueling Truck
--- Packing: Waxed or nude, and covered with tarpaulin.
--- Shipping: small type can be shipped in 20"GP,40"GP,or 40"HQ, big type can be
shipped in bulk ship or RO-ROshipping, or according to your requirement.
CLW GROUP
ChengLi Special Automobile Co.,Ltd, is the headquarter of CLW GROUP. We are the biggest manufacture of Special Purpose Vehicles in Suizhou city. And Suizhou city is the biggest Chinese production base of special purpose vehicles.
CLW is our trademark. As the biggest manufacture in Suizhou city, we have been awarded many honors, for example, CLW Group is the 19th in the top 100 private enterprises in Hubei province. CLW Group is also 500 private enterprises in China."High-tech enterprises in Hubei province", " Best credit enterprises".CLW sprinkler truck was named "Hubei famous brand"; "CLW" won the Hubei famous brand, A Well-Known Trademark in China.
Our leading products include Water truck, Fire truck, Garbage truck, LPG vessel/truck/trailer, Refrigerator truck, Dump truck, Concrete mixer truck , Sewage truck, Crane Truck, Van truck, etc.
With high quality and low price, our products are widely exported to Africa, Asia and South America every year.
1. Is your company a factory or trading Company?
We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Could you customize exactly according to my requirements?
Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
3. Do you provide certification that we need?
We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
4. What service can I get from you?
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
5. Any more questions,please feel free to contact me directly!
