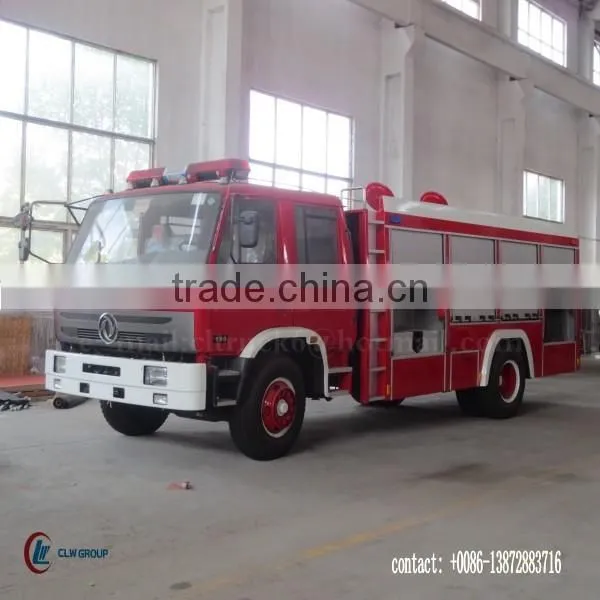

190 hp 4*2 DONGFENG Fire Fighting Truck 6 ton
DONGFENG Fire Fighting Truck , is also known as a firetruck, is used exclusively as extinguishing or other emergency rescue vehicle Fire truck is currently most main tool for fire deprtments to fight fire , and is the most basic mobile firefighting equipment. According to the different types of extinguishing media, fire truck can be divided into water tank fighting truck, foam fighting truck, dry powder fighting truck, etc. We can manufacture kinds of fighting truck from 0.5ton to 22ton, and we also can manufacturer rescue Fire truck, communication command truck, inflatable Fire truck. etc.
Product Notes:
1 DONGFENG 4*2 two-row chassis
2 Extinguishing Media:water or foam,volume:6000 L
3 Euro 3 Engine 190hp
4 Factory direct sale, reliable quality and competitive price
Main parameter of 190 hp 4*2 DONGFENG Fire Fighting Truck 6 ton
Main Technical Parameter | |||
Product Name | DONGFENG Fire Fighting Truck | Overall Dimension(L*W*H)(mm) | 7900×2470×3390 |
Wheelbase(mm) | 4500 | Tanker volume(l) | 6000 |
F/ R suspension(mm) | 1205/2135 | Front/Rear tread(mm) | 1940/1860 |
Curb weight(kg) | 8380 | Number of Axles | 2 |
Approach/ departure angle (° ) | 25/15 | Max Speed (km/h) | 85 |
Cab capacity | 2+4 | Cab Type | Flat proof, two row |
Chassis parameter | |||
Chassis Model | EQ1141KJ | Chassis manufacturer | DONGFENG Automobile Co., Ltd |
Gear Box | DONGFENG 6 shift | Transmission type | Manual |
Steering Type | Steering wheel(LHD) | Traction Type | 4*2 |
Brake System | Air brake | Number of Tire | 6 with a spare |
Leaf Spring number | 8/10+8 | Tire size/type | 10.00-20,10.00R20 |
Engine parameter | |||
Engine Model | B190 33 | Engine manufacturer | DONGFENG |
Fuel type | diesel | Displacement(ml) | 5900 |
Emission stand | Euro 3 | Power(kw) | 140(190hp) |
Operation System | Electrically Hydraulic Control | Electric system | 24V |

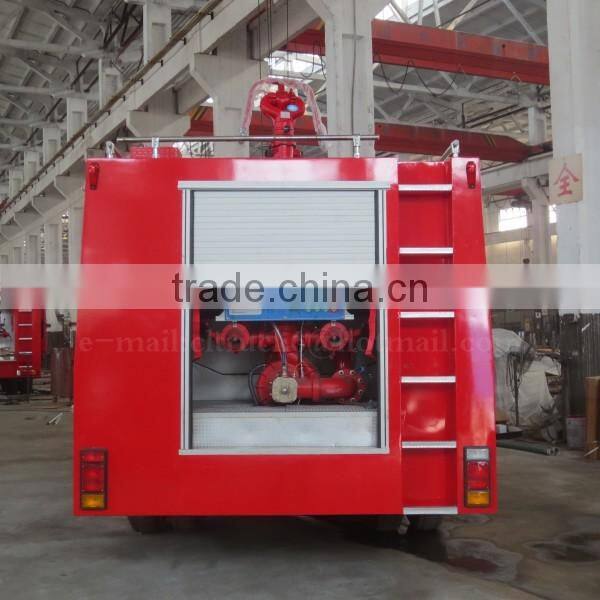

Superstructure Equipment & Performance | 1.equipped CB10/40 fire pump(rear)(diversion time≤35s) | ||
2.Water tanker volume: 6m3, tanker material: high quality carbon steel | |||
3.equipped with PS40 type fire monitor,(pressure:1.0MPa,flow:40L/s,shot range≥60m,rotation angle: left or right 360°,up or down-30°~80°) | |||
4.cab type: two-row, steel structure | |||

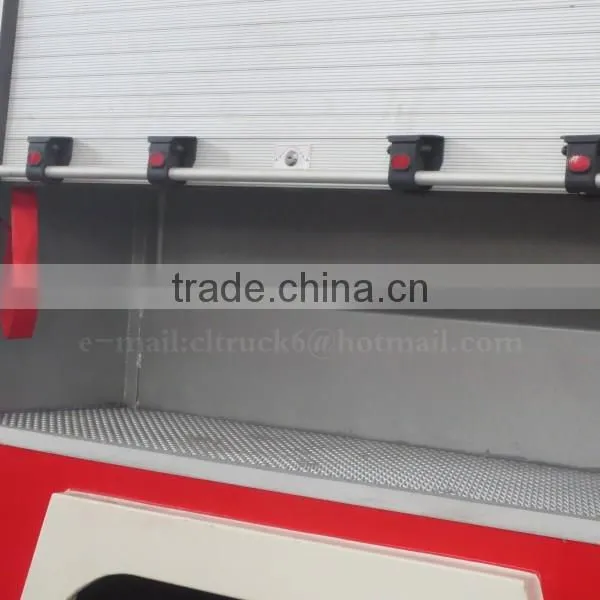

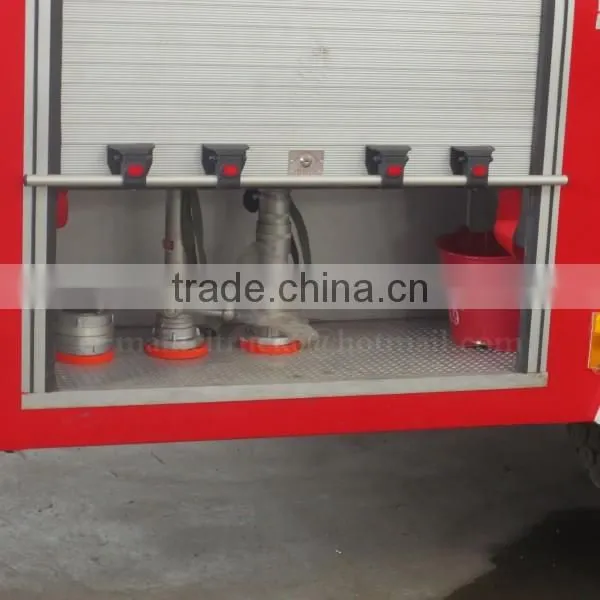

5 steel pump room/equipments box ,5-9 Aluminum curtain door | |||

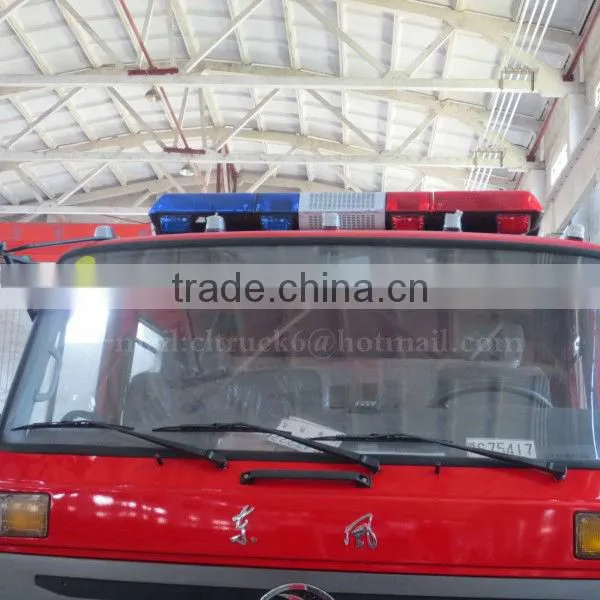

6 other equipment: 1600mm long rows of lights in the top of cab | |||
Warranty | 12 months, from the date of supply | ||

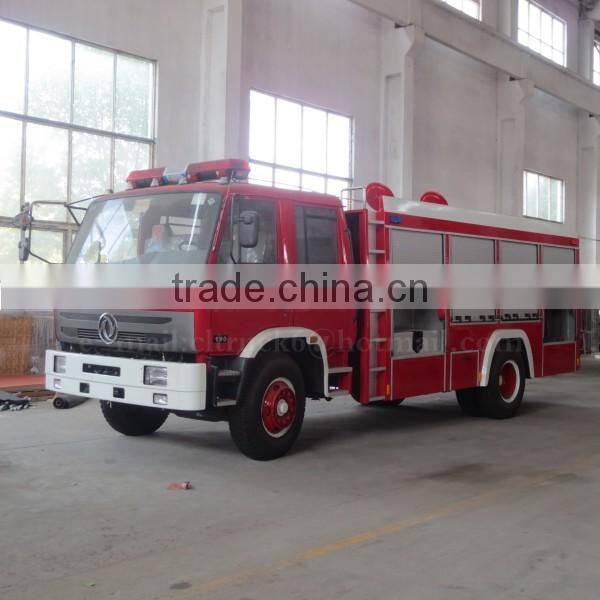

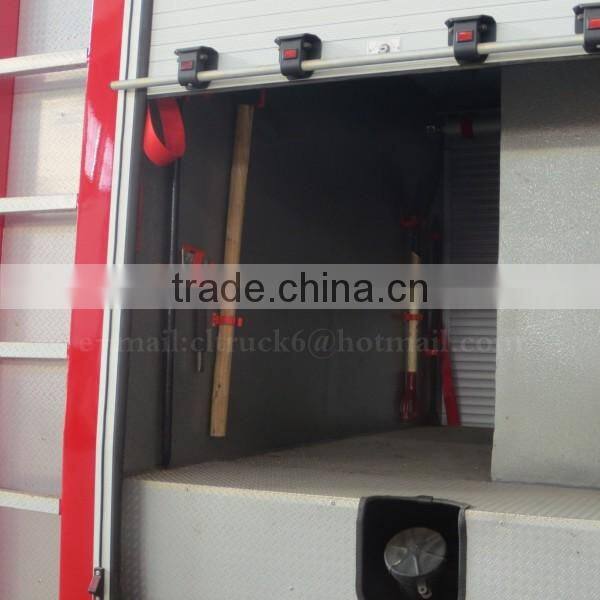

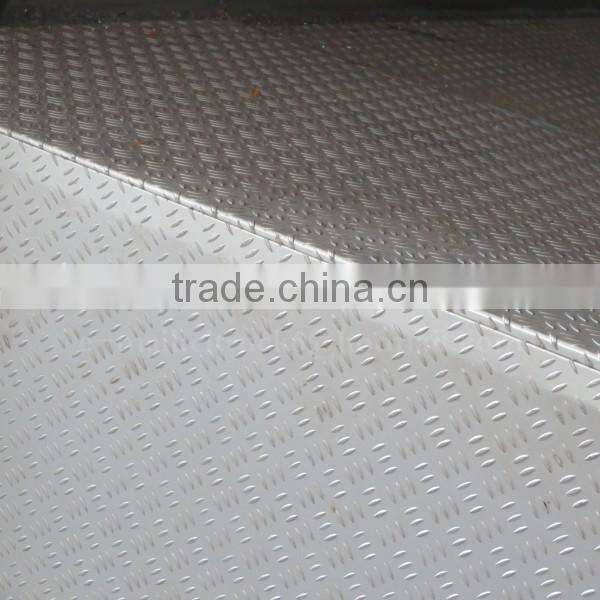

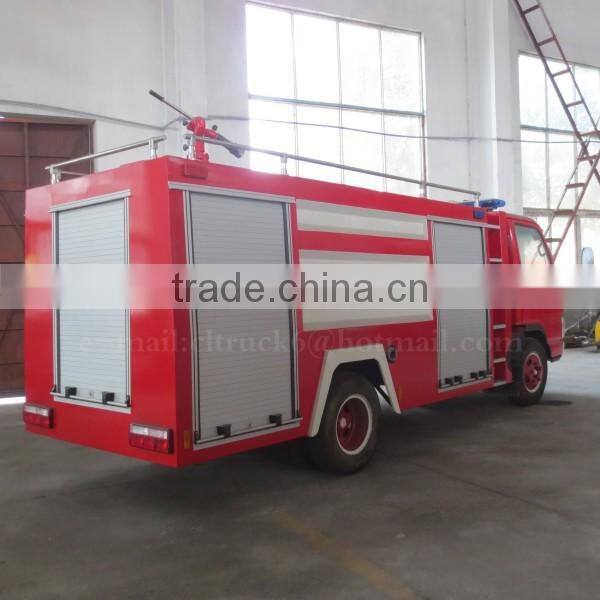

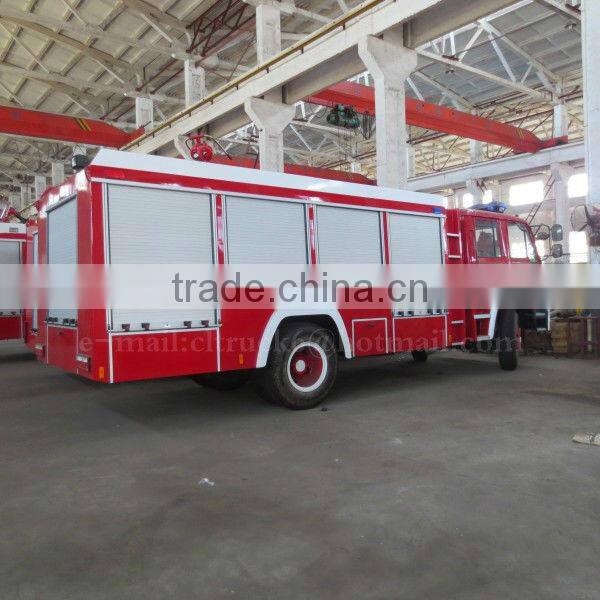

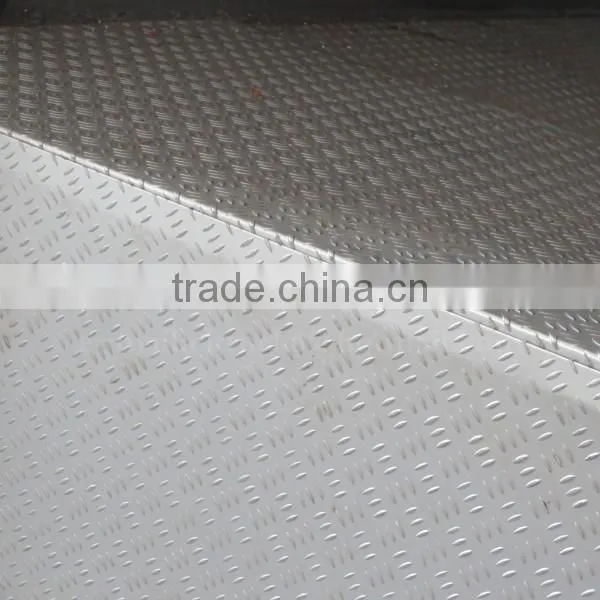

More picture of 190 hp 4*2 DONGFENG Fire Fighting Truck 6 ton:
Our Certificates:
Our production equipments:
Contact Information:
The above information is just for your reference, if you have any other questions or need more truck picture or detailed information, please feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please check my contact information as below
