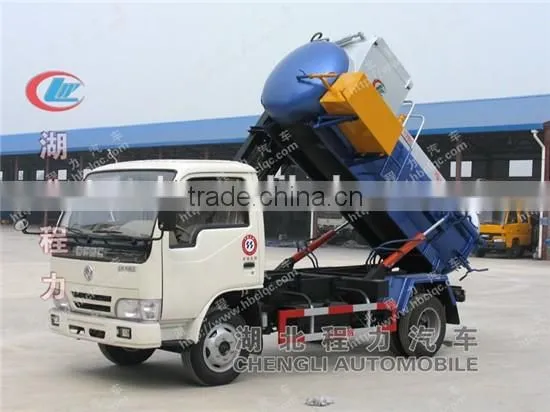

Sewage suction tank Truck, Fecal Suction Truck

Model Number:CLW5050GXW

Chassis model: EQ1061T14DJ2A

Overall dimensions: 5,600 x 1,890 x 2,340mm

Fact cubage: 2.96m3

Body internal dimensions: 3,100 x 1,480 x 950mm

Wheel base: 3,000 mm

F/R track base: 1,404/1,458

Approach/departure angle: 19/15°

Exhaust/hp: 3,298mL/70kW

Maximum speed: 95km/h

Tire specification: 6.50 - 16

Engine type: 4100QBZL

Traction system: 4 x 2

Transmission :5 speed with over drive

Number of axles: 2

Electric system: 24V

Operation control system

Electrically hydraulic control

Allowable passengers in cab: 2

Equipment:

a)Equipped with vacuum pump (rating rotate speed 1,400rpm, minimum rotate speed 800rpm, maximum suction lift 6m, vacuum 500mm Hg, clockwise)

b)Equipped with power take off, transmission shaft, fecal tank, pipe network, fecal pipe for observing and clean out equipment

Time for full suction: 5min

Production cycle: 6 - 7 days
