Home > Products > fecal suction truck > fecal tanker truck with 5m3

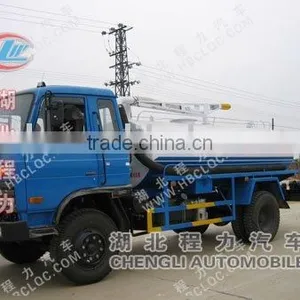

fecal tanker truck with 5m3
- 20 Set / Sets per Month
- ANY PORT IN CHINA
- T/T L/C D/P D/A
- Compaction Technology Garbage Service Truck Afety And Reliability
- Heavy Duty Compactor Truck Durable Construction Automated Production
- Versatile Mounting Options Waste Treatment Automated Loading
- Kaili Wind Brand Garbage Vehicle Compaction Technology
- For Garbage Collection Manganese Steel Construction Garbage Collection Truck
- Compression Refuse Collector Manganese Steel Construction 5 Cubic Meter Capacity
Product Details
Transmission Type: | Manual | Condition: | New | Emission Standard: | Euro 3 |
Fuel Type: | Diesel | Tank Volume: | 8000L | Dimension (L x W x H): | 6950*2480*3000 |
Place of Origin: | Hubei, China | Brand Name: | CLW | Model Number: | CLW5090GXE3 |
Horsepower: | 180 | Gross Vehicle Weight: | 14490 |
Product Description
Specifications
fecal tanker truck with 5m3Fecal capacity 8000L
Fecal suction lift =>6m
Fecal tank 3600*1900*1200
Yuchai engine
Fecal suction truck
Fecal Suction Truck:
mainly used for cleaning urban and rural public convenience. Suction-type is best.
To improve human living environment, fecal suction truck can reduce secondary pollution in urban and rural.
We can produce all kind of different tonnage of , we have light, medium and large capacity hopper of suction truck.
According to your needs, choosing the fecal suction truck which one is your want to buy.
Item | unit | parameter | |
Vehicle model |
| CLW 5090GXE3 Fecal suction truck | |
Chassis model |
|
| |
Horse Power | hp | 180 | |
Overall dimensions | mm | 7890×2470×3080 | |
Fact cubage | L | 10500 | |
GVW | kg | Approx 14490 | |
Rated loading capacity | Approx 7000 | ||
Mass in working order | Approx 7295 | ||
Body internal dimensions | mm | 5000×2200×1350 | |
Wheel base | 4500 | ||
F/R track base | 1940/1860 | ||
Approach/departure angle | ° | 34/18 | |
Exhaust/hp | ml/hp | 5880/180 | |
Max speed | km/h | 90 | |
Tire specification | 10.00-20 | Engine type | EQB180-20 |
Traction system | 4*2 | transmission | 6-speed with over drive |
Number of axles | 2 | Electric system | 24v |
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 |
Equipment | Equipped with vacuum pump(rating rotate speed=1400r/m, min rotate speed800r/m, max suction lift6m, vacuum500mmHg, clockwise) Equipped with power take off, transmission shaft, fecal tank, pipe network, fecal pipe for observing and cleanout equipment Time for full suction5min Cabin with a bed. Strong engine, high-speed. | ||
Engine | DONGFENG Cummins, diesel engine. | ||
Production cycle | 5-7 days | ||
Warranty | 12 month, from the date of supply |
fecal suction truck , sewage suction truck , suction truck. fecal suction truck with 6M3. suction tanker truck. fecal tanker truck
Contact Us
- Chengli Special Automobile Co., Ltd.
- Contact namePeter Yu
- Phone86-27-0086-13871143958
- Address3104 Room,7th building,fanhai Soho district, Wuhan City, Hubei Province Wuhan,Hubei
