Home > Products > concrete mixer truck > Cement Mixer Truck, Concrete Mixer Truck, 5~6 Cbm Mixer Drum.

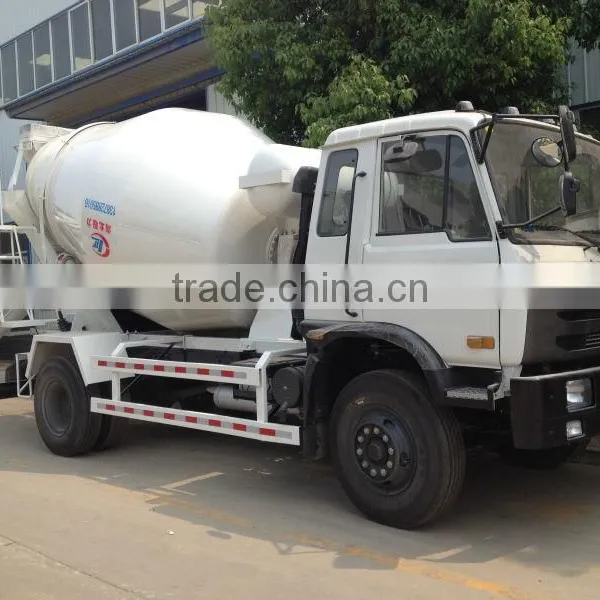

Cement Mixer Truck, Concrete Mixer Truck, 5~6 Cbm Mixer Drum.
US$ 10,000 - 50,000
/ Unit
1 Unit(Min. Order)
- Shanghai
You May Like
-
28 m Truck Mounted Concrete Pump
-
Howo 8 Cbm Cement Mixer Truck, Concrete Mixer Truck, Concrete Truck Drum Mixer
-
Shacman Cement Mixer Truck, Concrete Mixer Truck,8~9 Cbm Drum
-
25m3 Concrete Tank Trucks for Sale, 25000 Liters Cement Tank Trucks for Sale, 6000 Gallons Concrete Tank Trucks for Sale
-
8~10 m3 Shacman Concrete Mixer Truck, 8000~10000 Liter Shacman Concrete Truck, 8~10 Cbm Shacman Mixer Drum Tank Truck
-
Hino 5~6 Cbm Cement Mixer Truck, Hino 5~6 Cbm Concrete Mixer Truck ,Hino 5~6 Cbm Drum Mixer Truck
Product Details
| Condition | New | Place of Origin | Hubei, China | |
| Brand Name | CLW | Model Number | CLW5352GJB | |
| Weight | 25000 | Dimension(L*W*H) | 9250*2496*3935mm | |
| Power(W) | 247 | Certification | ISO,CCC | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
concrete truck:
| Vehicle model | Concrete Truck CLW5352GJB | ||||||
| Chassis model | EQ3121GLJ1 | Engine make | Cummins Engine | ||||
| Overall dimension | 8200*2480*3050mm | Engine type | B170-33 | ||||
| Tank dimension | / | Exhaust/hp | 8300/195 | ||||
| GVW | 15000 kg | Traction system | 4x2 | ||||
| Effective mix capacity | 6 m3 | Transmission | 6-speed with over drive | ||||
| Approach/departure angl | 27/13° | Max speed | 90km/h | ||||
| Number of axles | 2 | Wheelbasc | 4500mm | ||||
| F/R Axle Capacity | 3450/9000 kg | Tire size | 11.00-20,11.00R20 | ||||
| Hydraulic system | Italy ARK Motor Hydraulic pump, TOP68 Reducer | ||||||
| German AKG Radiator | |||||||
| Feeding speed | more than 3m3/min | Discharge speed | more than 2 m³/min | ||||
| Discharge residual rate | no more than 0.8% | Mixing container obliquity | 13 ° | ||||
| Drum rotation speed | 0-16/min | Stirring blade | Internal two set Archimedes spiral | ||||
| Water tank capacity | 350L | Waster supplying style | water air pressure | ||||
| Numerous chassis makes and models available,If you have problem its our please to help. | |||||||
....
