Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Concrete Machinery > 28 m Truck Mounted Concrete Pump
28 m Truck Mounted Concrete Pump
US$ 10,000 - 150,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
CLW
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Howo 8 Cbm Cement Mixer Truck, Concrete Mixer Truck, Concrete Truck Drum MixerUS$ 10,000 - 50,000MOQ: 1 Unit -
Shacman Cement Mixer Truck, Concrete Mixer Truck,8~9 Cbm DrumUS$ 10,000 - 55,000MOQ: 1 Unit
-
25m3 Concrete Tank Trucks for Sale, 25000 Liters Cement Tank Trucks for Sale, 6000 Gallons Concrete Tank Trucks for SaleUS$ 10,000 - 50,000MOQ: 1 Unit
-
8~10 m3 Shacman Concrete Mixer Truck, 8000~10000 Liter Shacman Concrete Truck, 8~10 Cbm Shacman Mixer Drum Tank TruckUS$ 10,000 - 45,000MOQ: 1 Unit
-
Hino 5~6 Cbm Cement Mixer Truck, Hino 5~6 Cbm Concrete Mixer Truck ,Hino 5~6 Cbm Drum Mixer TruckUS$ 10,000 - 90,000MOQ: 1 Unit
Condition
New
Place of Origin
Hubei, China
Brand Name
CLW
Model Number
CLW
Weight
16000
Dimension(L*W*H)
10380X2500X3998
Power(W)
96kw
Certification
CCC, ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
28 m concrete pump truck, 28 m dongfeng concrete pump truck,truck mounted concrete pump
Cement mixer truck, concrete mixer truck, which is used for concrete making and transporting.
The cement mixer truck with four main parts. concrete pump, speed reducer,Temperature controller,hydraulic motor,Currently our company produce the concrete mixer truck with the mixer drum from 1000 liter~6000 liter.
Product Description
28 m concrete pump truck, 28 m dongfeng concrete pump truck,truck mounted concrete pump
| Item | Unit | Description | ||||||||
| Model | Dongfeng brand concrete pump truck | |||||||||
| Dimension | mm | 10350*2500*3550 | ||||||||
| Gross Weight | kg | 16000 | ||||||||
| Wheel Base | mm | 5200 | ||||||||
| F/R track base | mm | 1810 / 1940 | ||||||||
| F/R Axle-load | Kg | 5000 / 11000 | ||||||||
| Approach/Departure angle | . | 33/19 | ||||||||
| Traction system | 4x2 | Tire Specification/Number | 9.00-20 / 6 +1 Units | |||||||
| Max speed | 90 km/h | Number of axles | 2 | |||||||
| Engine model | YC6J180 | Emission/kw | 7260 ml/ 134Kw, 180 Hp | |||||||
| Diesel, 6 cylinder , direct-line, turbocharge and water cooling. | ||||||||||
| Engine Manufacturer | GuangXi YuChai Engine Power Co.,Ltd | |||||||||
| Steering | Power | Transmission | 6F&1R | |||||||
| Cab passenger | 3 | Electric System | 24V | |||||||
| Dirve system | left hand or Right hand | |||||||||
| Air Condition | Option | Radio, CD. | ||||||||
| Concrete pump specification | ||||||||||
| Power | 60 M3 /H | |||||||||
| Ourput port pressure | 9-11 Mpa | |||||||||
| flowing Concrete | 40 mm | |||||||||
| Concrete slump | 14 ~ 23 cm | |||||||||
| Pump output time | 26 times/ min | |||||||||
| Pump rated work pressure | 30 Mpa | |||||||||
| concrete bucket volume | 500 L | |||||||||
| Concrete Duct diameter | 125 mm | |||||||||
| Working range | 28 m height, radius 25 m | |||||||||
| working angle | 360 degree | |||||||||

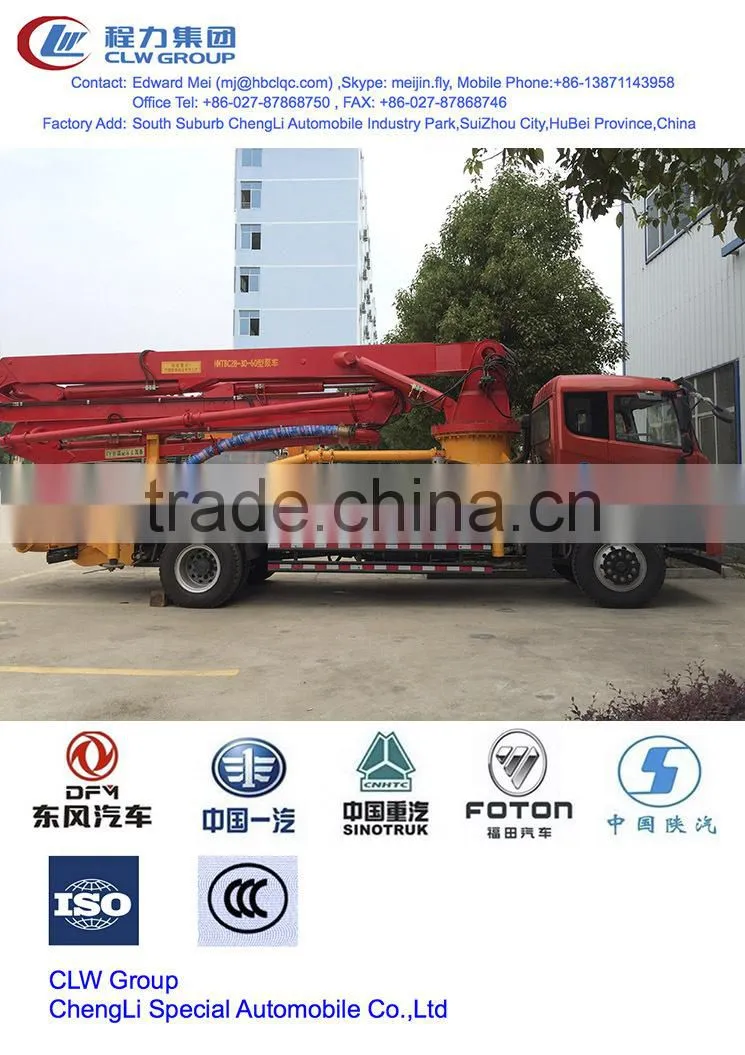

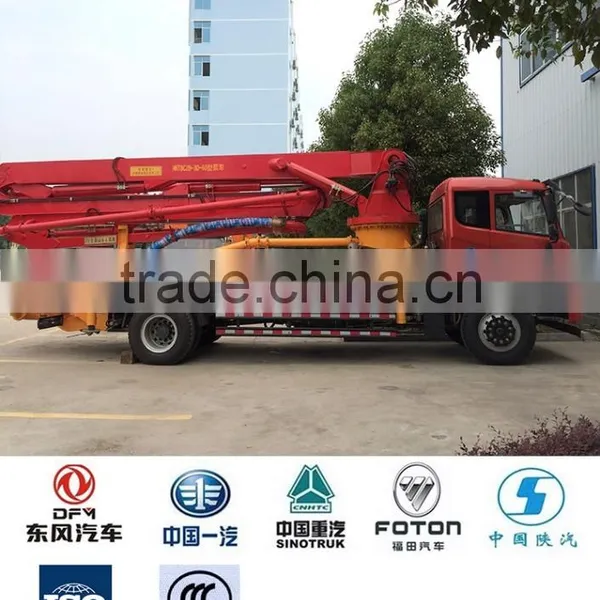

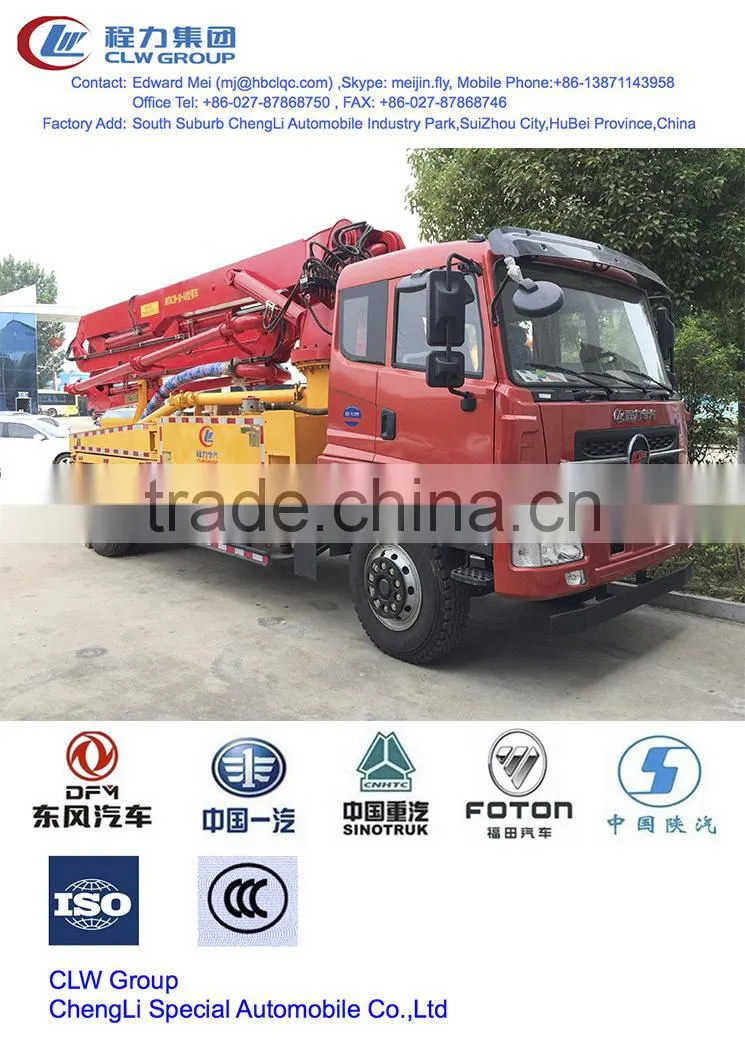

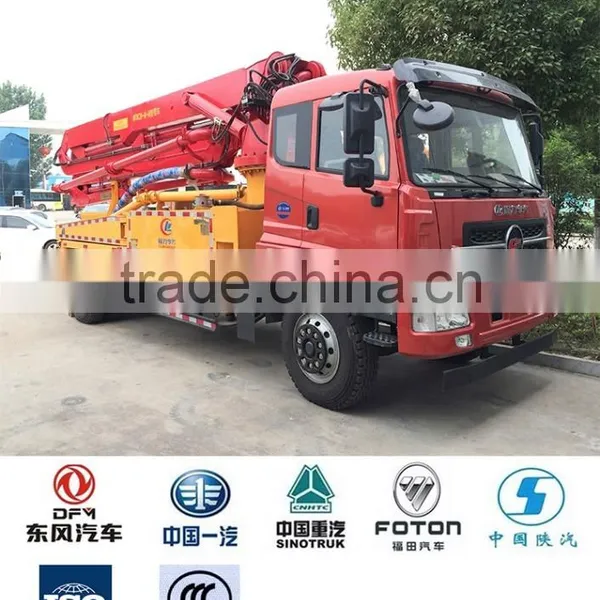

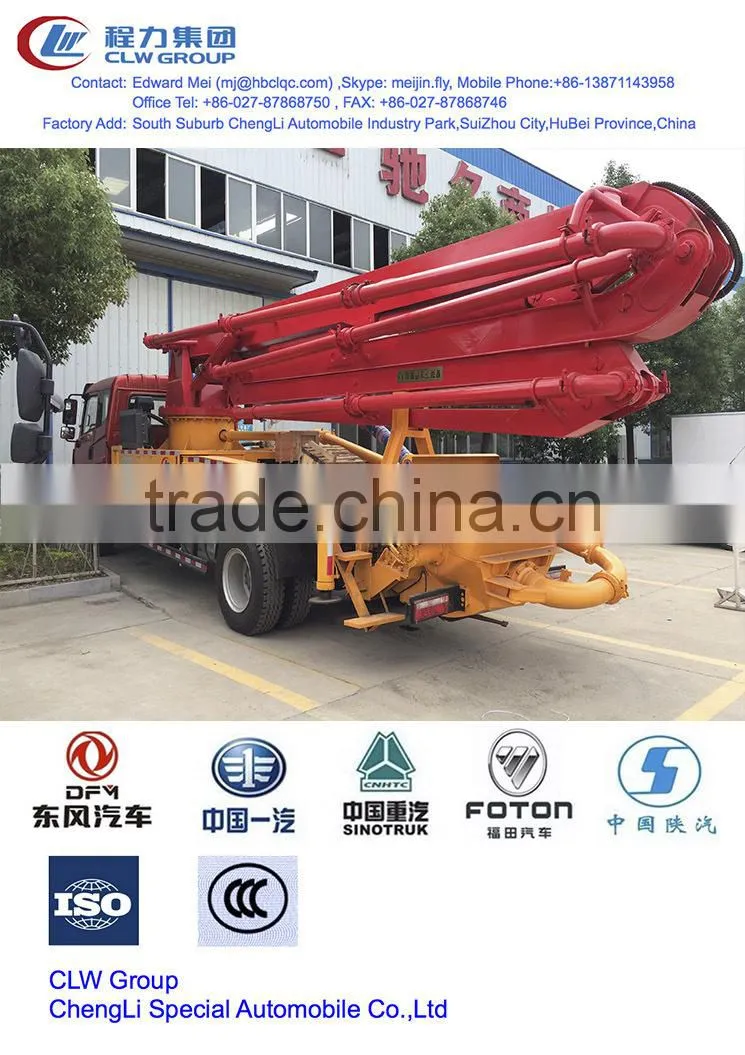

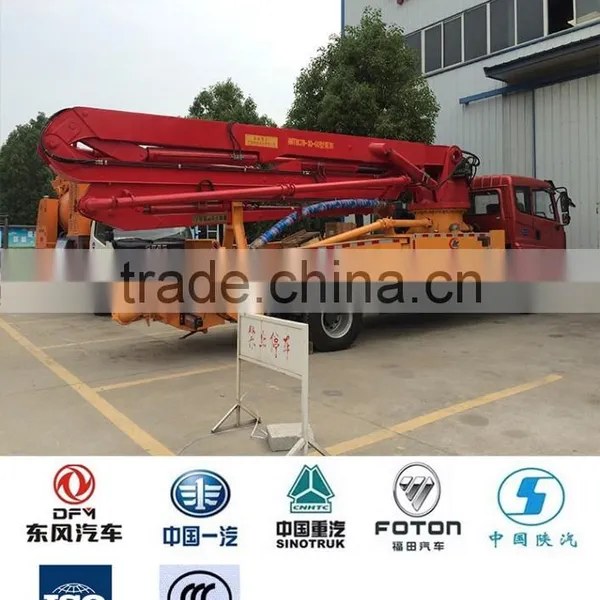

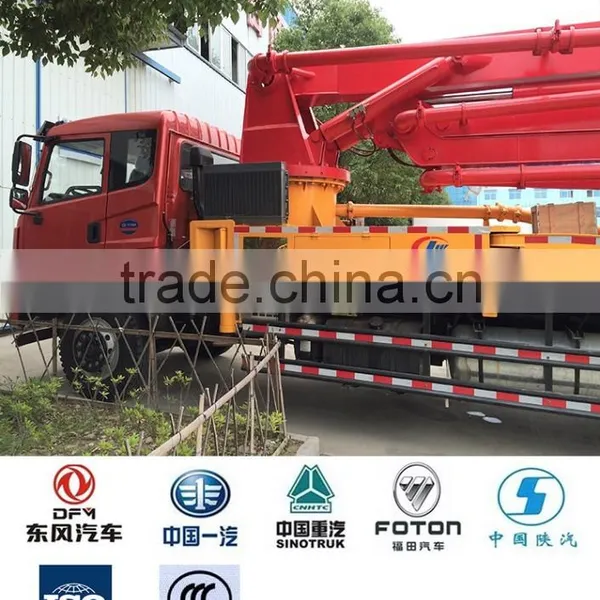

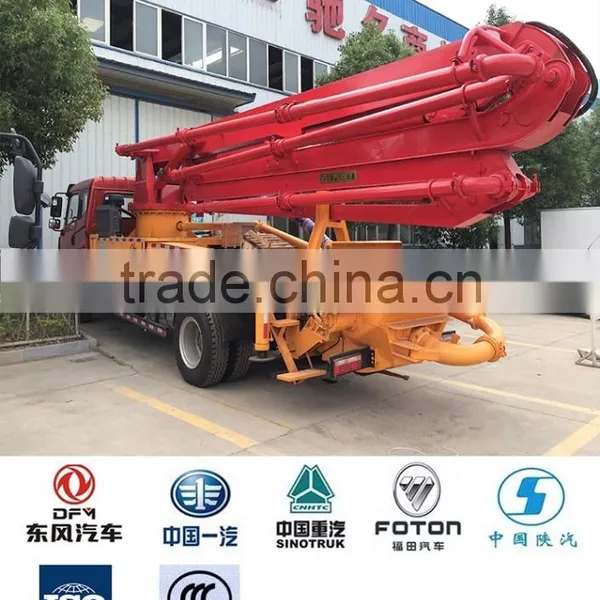

More photos showing
28 m concrete pump truck, 28 m dongfeng concrete pump truck,truck mounted concrete pump
Related product show
28 m concrete pump truck, 28 m dongfeng concrete pump truck,truck mounted concrete pump
...
....
