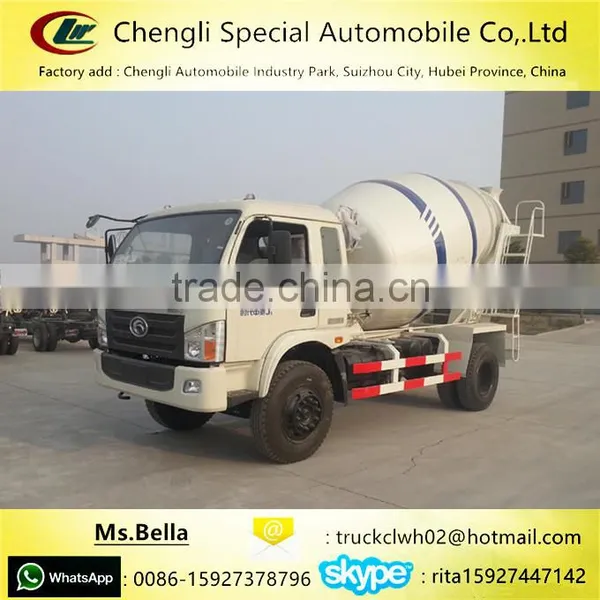

5m3 Small Concrete Mixer FOTON Concrete Mixer Truck
US$ 16,000 - 21,900
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
CLW
Payment & Shipping
Payment Methods:
Port of Shipment:
ANY PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
9m3 Concrete Mixer Truck for Sale, 10 Wheels Concrete Mixer Truck for Sale,US$ 10,000 - 40,000MOQ: 1 Unit -
5 Cbm Concrete Mixer Truck, 5000L Cement Mixer Truck, 5000 Liter Drum Mixer TruckUS$ 10,000 - 50,000MOQ: 1 Unit
-
Dongfeng 5~6 Concrete Mixer Truck, 5~6 m3 Cement Mixer Truck, 5000~6000 Liters Concrete Mixer Drum Tank Truck.US$ 10,000 - 50,000MOQ: 1 Unit
-
Chinasino Truck Bulk Concrete Truck, 35 Cbm Bulk Concrete Tank Truck for Sale, Howo 35000L Cement Tank Truck for SaleUS$ 10,000 - 45,000MOQ: 1 Unit
-
Cement Mixer Truck, Concrete Mixer Truck, 5~6 Cbm Mixer Drum.US$ 10,000 - 50,000MOQ: 1 Unit
Condition
New
Place of Origin
Hubei, China
Brand Name
CLW
Model Number
BJ5142GJB-G1 FOTON concrete mixer truck
Weight
13560 KG
Dimension(L*W*H)
7125*2480*3450 mm
Power(W)
96KW
Certification
ISO, CCC
Warranty
12 monthes, 12 months
After-sales Service Provided
Overseas third-party support available

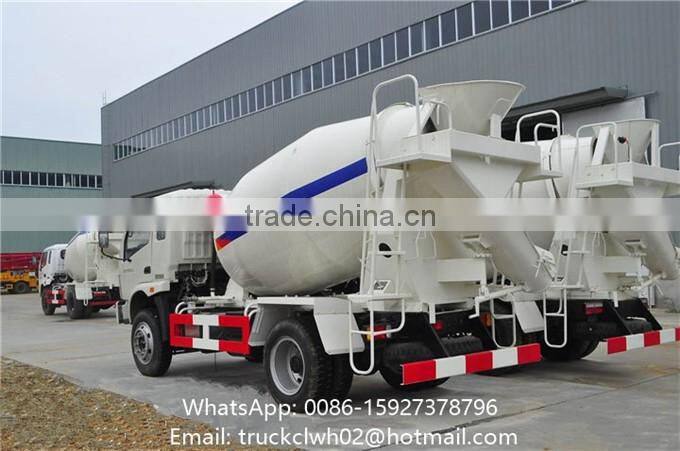

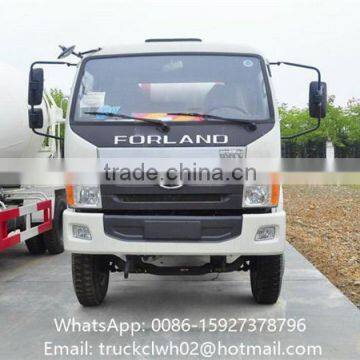

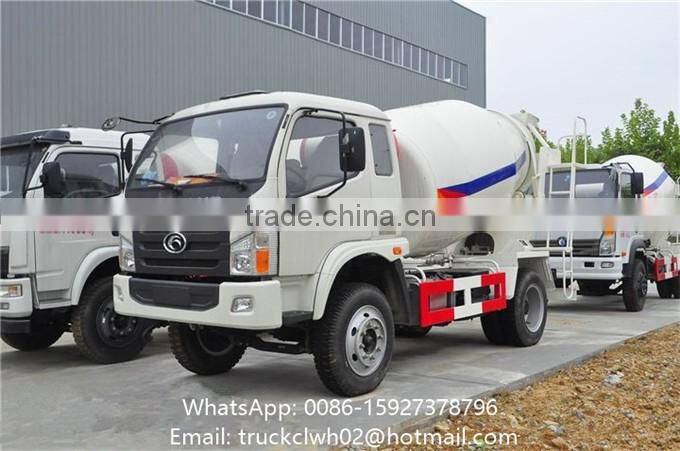

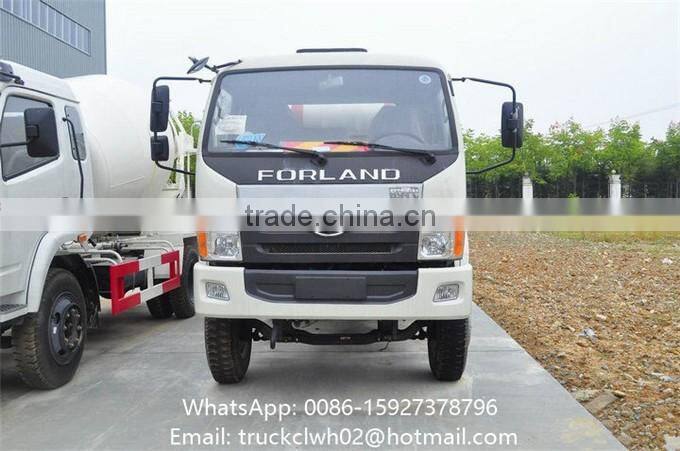

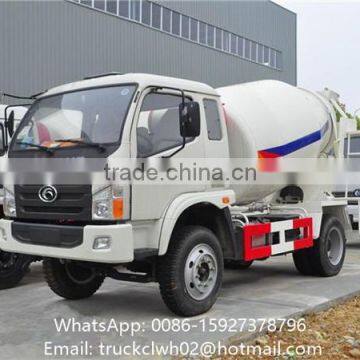

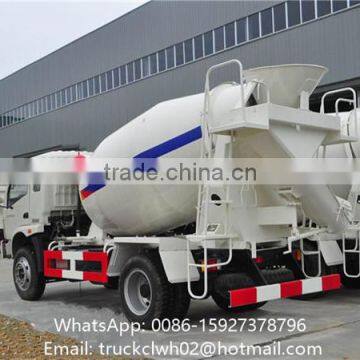

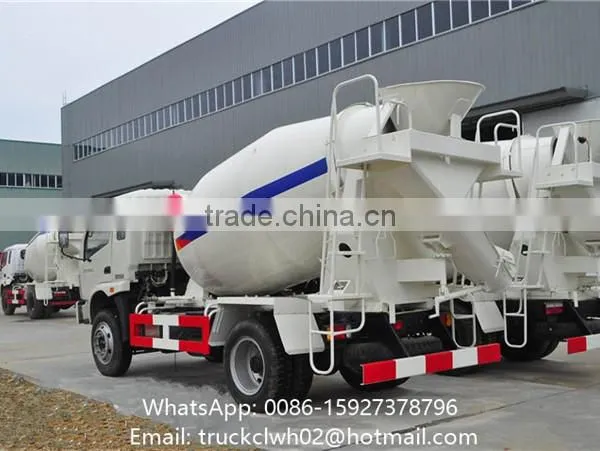

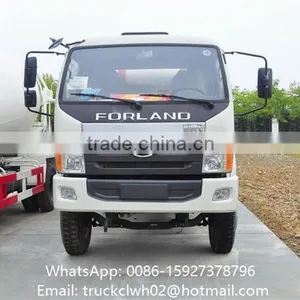

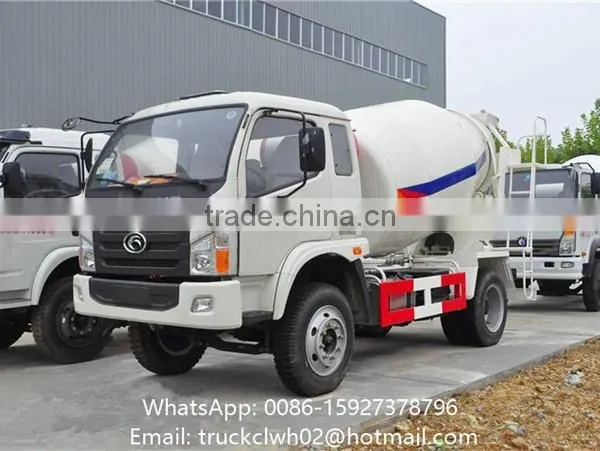

5m3 Small Concrete Mixer FOTON Concrete Mixer Truck.
Product Description

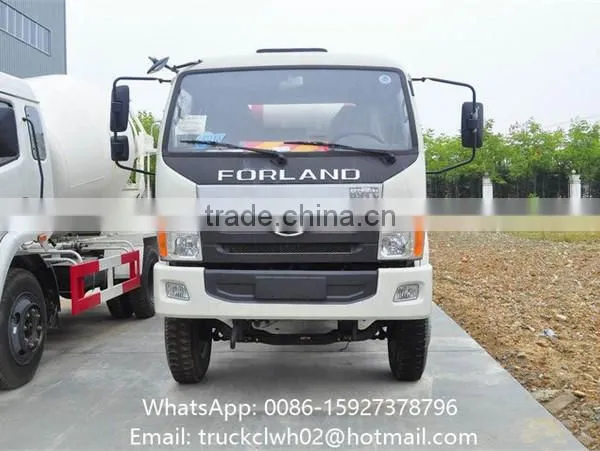

CLW supply FOTON FORLAND Concrete Mixer Truck
| Items | Descriptions | Specifications and Types | |||||
| General | Truck Name | FORLAND 5m3 concrete mixer truck | |||||
| Drive Type | 4*2 | ||||||
| Overall Dimensions L*W*H(mm) | 7125*2480*3450 | ||||||
| Chassis | Brand | FORLAND | |||||
| Chassis Model (Model No. ) | BJ5142GJB-G1 | ||||||
| Tire | 8.25-20 | ||||||
| Engine | Engine model and emission | YC4D130-33(Euro 2) | |||||
| Engine type | Four-cylinder/in-line/ water-cooling/ four-stroke/supercharged intercooling/ diesel engine | ||||||
| Displacement(ml)/Power(kw) | 4200/96 | ||||||
| Fuel type | diesel | ||||||
| Gearbox | Gearbox type | 145HF | |||||
| Gearbox speed |
5-Speed with deputy variable speed& 1 reverse gear |
||||||
| Brake | Service brake type | Drum type, air pressure double loop braking | |||||
| Parking brake type | Energy storage spring rear wheel braking | ||||||
| Basic parameters | wheelbase(mm) | 3600 | |||||
| Axles No. | 2 | ||||||
| Gross weight | 13560 | ||||||
| Payload weight | 7505 | ||||||
| Kerb weight | 5860 | ||||||
| Leaf spring No. | 9/11+9 | ||||||
| Approaching/Departure Angle(° ) | 29/20 | ||||||
| Front/Rear Trace(mm) | 1790/1725 | ||||||
| Front/Rear Suspension(mm) | 1245/1980 | ||||||
| Performance | Max speed(km/h) | 80 | |||||
| Maximum gradeablility (%) | ≥30% | ||||||
| Minimum ground clearance(mm) | 190 | ||||||
| Minimum turning radius (m) | 6.9 | ||||||
|
Standard configuration |
Radio,spare wheel,adjustable steering wheel,Power steering | ||||||
Packaging & Shipping
Concrete mixer truck packing and shipping: , shipping in Container ; in RO/RO ship; in Bulk carrier ship. According to your request.
Our Services
Company Information
Chengli Special Automobile Co.Ltd is located in Hubei Province, China, which is the largest special automobile manufacturer in Hubei.
Location is near Wuhan Tianhe airport, convenient to pick up clients to visit our factory.
Factory covers an area of 8 hectares, more than 6000 employees.
China top 500 private manufacturing enterprises
Factory overview
FAQ
Welcome to visit our factory
