12cbm Dongfeng Da Lishen 6x4 340hp cement mixer truck
1.Technical Paramters of 12cbm Dongfeng 6x4 340hp cement mixer truck
Main Technical Parameter | ||||
Product Name |
Concrete Mixer Truck |
Gross Vehicle Weight (kg) |
25000 |
|
Rated Payload (kg) |
11950 |
Curb Weight (kg) |
12920 |
|
Tank Capacity(m³) |
10 |
Cab Allowed Persons |
2 |
|
Axle No. |
3 |
Wheelbase (mm) |
3650+1350 |
|
Chassis Technical Parameter | ||||
Chassis Model |
DFL5250GJBA |
Chassis Name |
Concrete Mixer Chassis |
|
Chassis Brand |
DONGFENG |
Manufacturer |
Dongfeng Automobile Co.,LTD |
|
Overall Dimension (mm) |
8800×2500×3930 |
Tyre No. |
10 with 1 spare tyre |
|
App./ Dep. Angle(º) |
25/30 |
Tyre Spec. |
11.00R20 |
|
Leaf Spring No. |
8/12 |
Front Track (mm) |
1986 |
|
Fuel Type |
Diesel |
Rear Track (mm) |
1860,1820 |
|
Drive Type |
6x 4 |
Brake System |
Air brake |
|
Steering Wheel |
LHD |
Gear Box |
FAST 9 speed forward and 1 reverse |
|
|

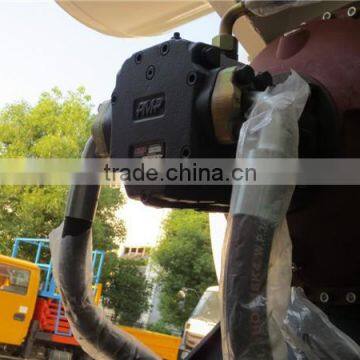

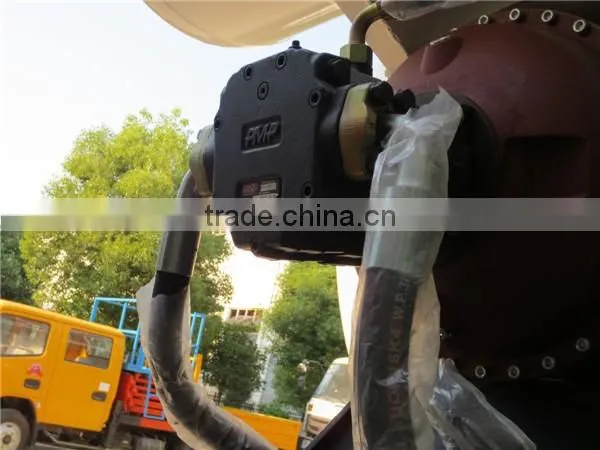

Remarks: 1.Equipped with Italy PMP reducer,hydraulic motor & pump. 2. Tank material is Q345. | ||||
Engine Technical Parameter | ||||
Engine Model |
ISLe340 30 |
Emission Standard |
Euro III |
|
Displacement ( mL ) |
8900 |
Power |
250KW/340HP@2100RPM |
|
Cylinder No. |
6 in line |
Engine Type |
inter-cooling charged, electric control system |
|

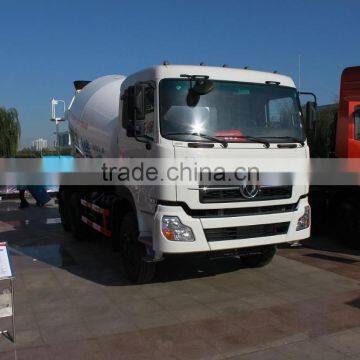

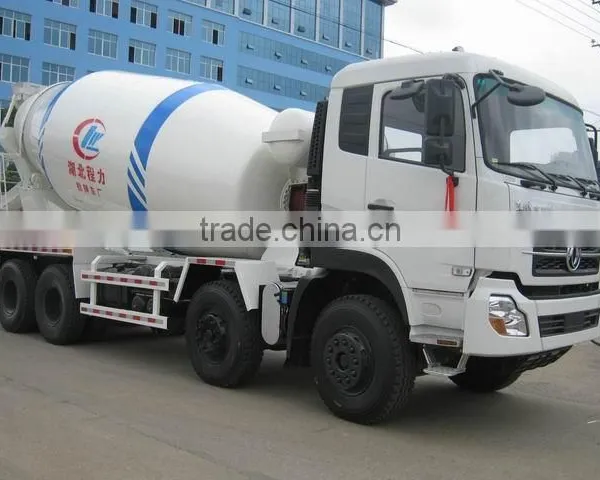

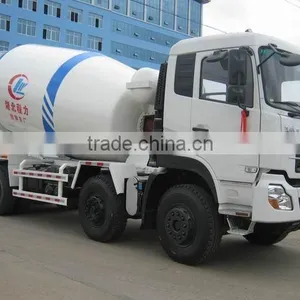

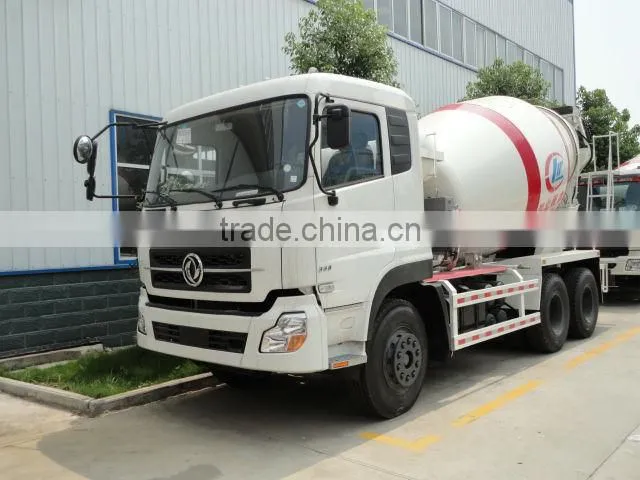

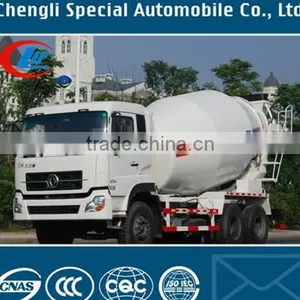

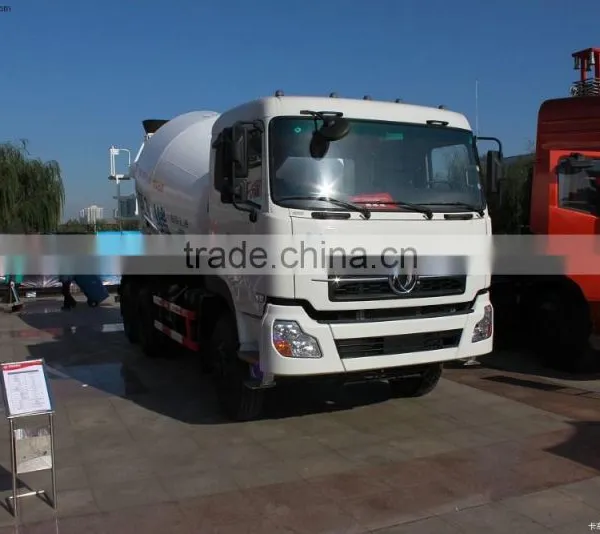

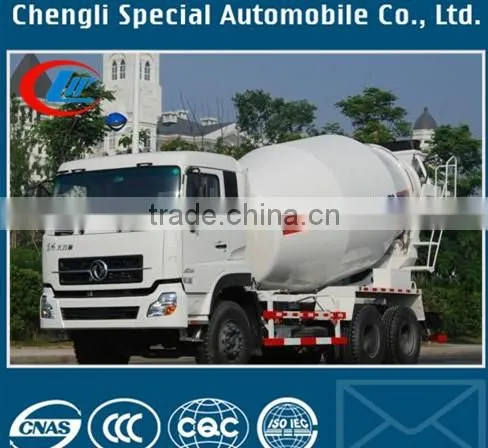

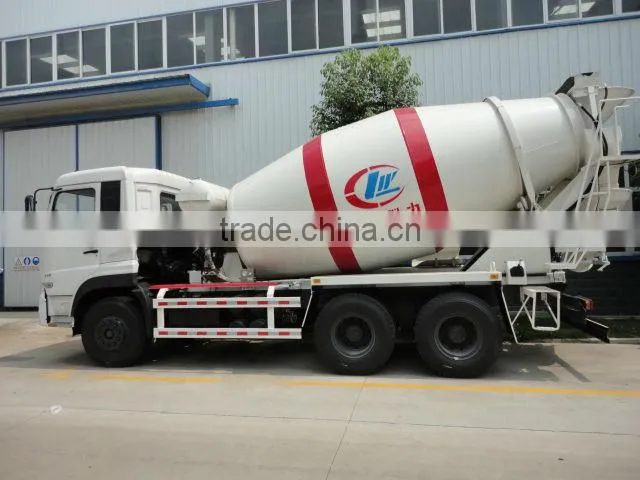

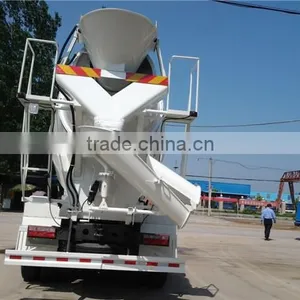

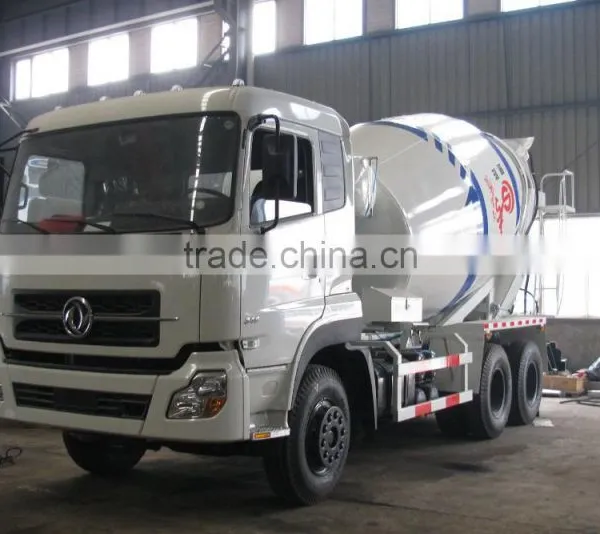

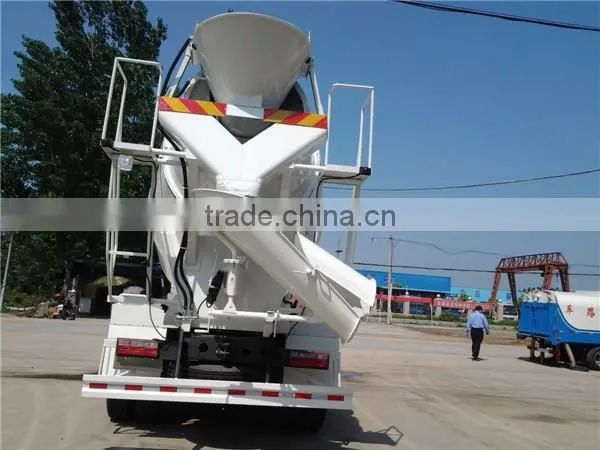

2.Pictures

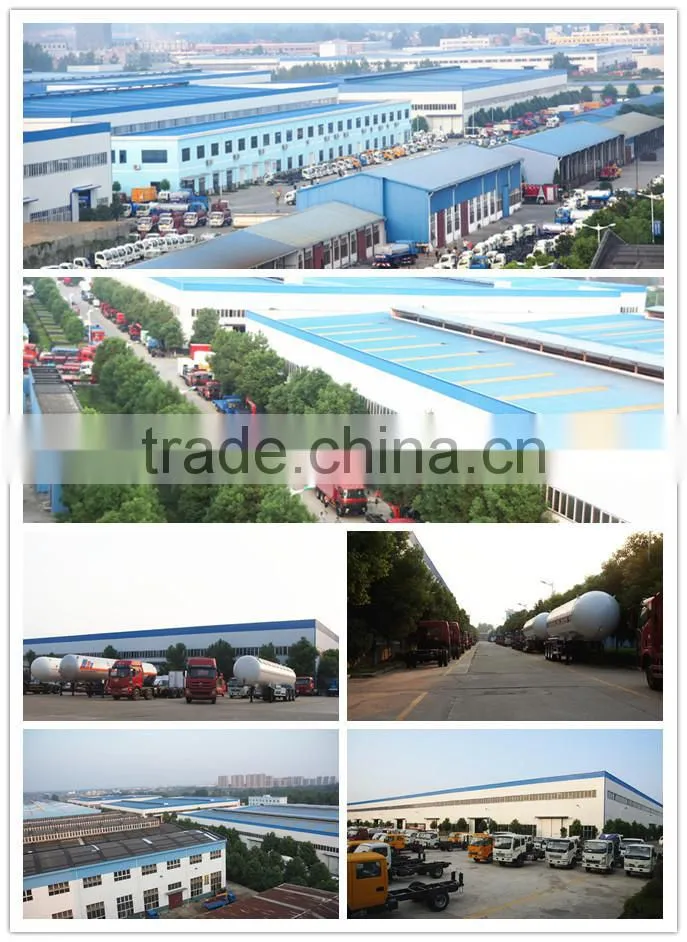

3. Factory certification

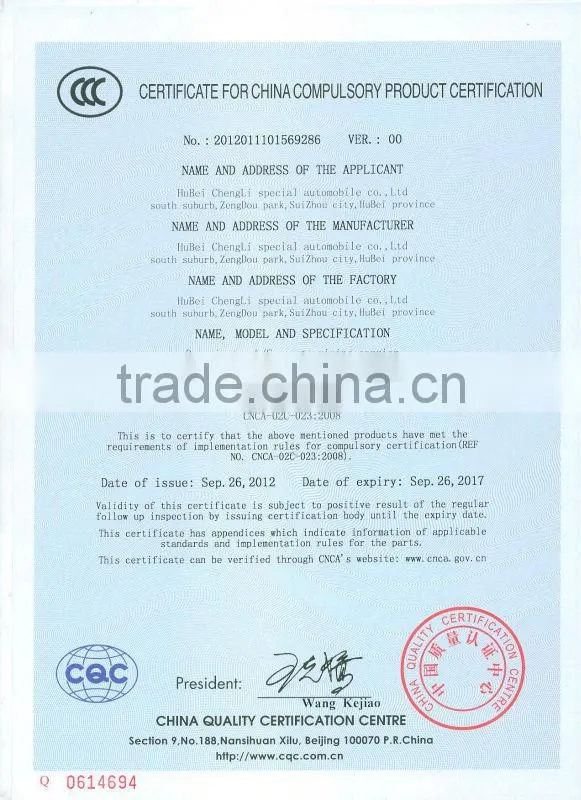

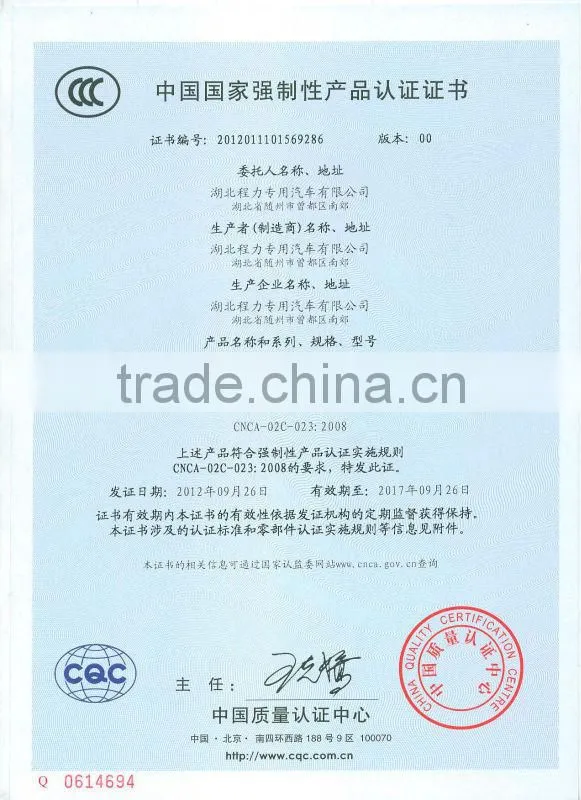

4. Certification of our concrete mixer truck
We, Chengli Special Automobile Co., Ltd., were established in 2004. We are a professional manufacturer and exporter that is concerned with the design, development and production of special trucks, including LPG trucks, cement mixer trucks, water trucks, refrigerator trucks, cargo trucks,garbage truck, oil tanker truck,wrecker towing truck, truck mounted crane and others.
We are located in Suizhou City, Hubei Province, in the middle of China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
Covering a large area, we now have over 1000 employees and an annual sales figure that exceeds USD 5 Million. We are currently exporting 30%-40% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001:2008 certification and Chinese TOP 500 Certificate.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Africa, Southeast Asia, Middle and South America, the Middle East and other regions.

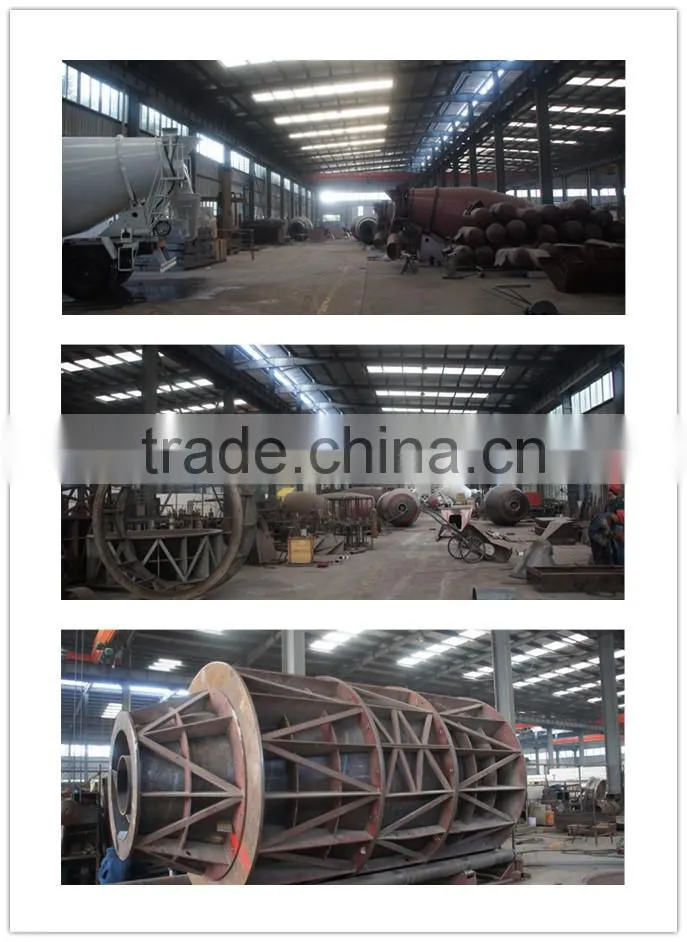

Factory Show
1.SKD and CKD are available.
2.OEM and ODM are available.
3.Technical support and installation instruction can be supplied.
4.All trucks with 12 months quality guarantee.
5.All enqueries will be replied within 24hours.
Contact Us
If you are interested in milk transport truck and other trucks, please feel free to contact with me, my skype:chenglitruck02 and tel 0086 13824309425
