12 cubic meter foton AUMAN 6x4 concrete agitator truck for sale
The concrete agitator is also called concrete truck mixer, concrete mixer truck, ready mix concrete trucks, cement mixer truck,concrete mix truck,etc.
The concrete agitator we produce adopts Euro modern style, featuring attractive appearance, rational structure and stable performance.The capacity ranges from 3 to 15m3,meeting customers' various needs.
Our concrete mixer truck is mainly used in cement mixing station, construction field and other place. It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system.Our concrete mixer truck consists of seven main parts. They are hydraulic pump,reducer, mixing drum,operation system, water supply system, feed hopper, outlet hopper.
Main advantages of AUMAN concrete agitator truck
1.Famous Weichai 336hp engine, strong power
2.FOTON Auman 6x4 chassis, good quality
3.Valid mixing volume 12 cubic meter, large capacity
4. With full power PTO, Mixer drum turn smoothly, no segregation.
5.High quality Q345 mixer drum, no leakage.
6.Reinforced truck frame, no vibration during transportation.
7.Large slumps, good flowability, easy to discharge
8.Factory sale, competitive price
Technical parameters of 12 cubic meter foton 6x4 concrete agitator for sale
Items |
Descriptions |
Specifications and Types |
General |
Truck Name |
Concrete mixer truck |
Drive Type |
6*4, left hand drive |
|
Gross Vehicle Weight(kg) |
25000 |
|
Curb Weight (kg) |
15700 |
|
Overall Dimensions L*W*H(mm) |
10150×2500×3995 |
|
Engine |
Engine Model |
WP12.336E40 |
Engine Brand |
Weichai |
|
Fuel Type |
Diesel |
|
Power |
247kw/336HP |
|
Emission Standard |
Euro IV |
|
Displacement(ml) |
11596 |
|
Engine Type |
6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling |
|
Chassis |
Chassis Brand |
FOTON |
Chassis Type |
Concrete mixer truck chassis |
|
Front/Rear Axle Load(KG) |
7000/18000 |
|
Tire No. |
10 |
|
Tire Specification |
12.00-20 Nylon tire or12.00R20 steel tire |
|
Wheelbase (mm) |
4100+1350 |
|
Axle No. |
3 |
|
Gear Box |
FAST 9 speed forward with 2 reverse, manual |
|
Brake |
Air brake |
|
Clutch |
430 single dry clutch |
|
Air conditional |
Suitable for tropical climate |
|
Superstructure |
Valid mixing volume |
10m³ |
Shape of drum |
Pyriform Structure |
|
Material of drum |
Q345 |
|
PTO Type |
Full power take off |
|
Hydraulic motor |
Italy PMP |
|
Hydraulic pump |
Italy PMP |
|
Reducer |
Italy PMP |
|
Water tank volume |
400 liter |
|
Loading rate |
More than 3m3/min |
|
Discharge rate |
More than 1.2m3/min |
| Special Fuction Description of Concrete Mixer | |||||
| hydraulic system | imported from Italy,Germany,Japan, layout of system is simple,reliable transportation. | ||||
| water supply system | using pressure water supply type,simplifying structure,saving powe,reducing the weight of entire vehicle. | ||||
| mixing drum | pyriform structure,double helical surface blades,using different blade in different conic part,improved the quality of concrete,tank body with small angle of inclination in installing,reducing the height of center of gravity of the entire vehicle,good driving stability,moreover,smaller angle of inclination is more favorable for dry concrete discharge,reducing residual ratio. | ||||
| operation equipment | including flexible manipulator and connecting rod type manipulator,connecting rod type manipulator can realize multipoint manipulation. | ||||
| feeding/discharging device | feed hopper,discharge chute can be rotated 180 degrees in the horizontal direction,so that it can adapt to different discharge position. | ||||

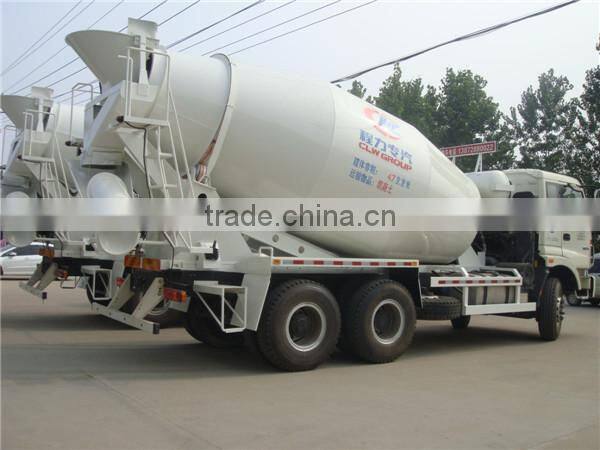

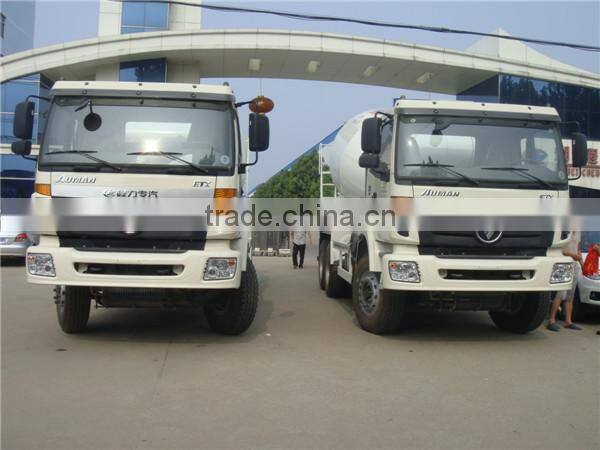

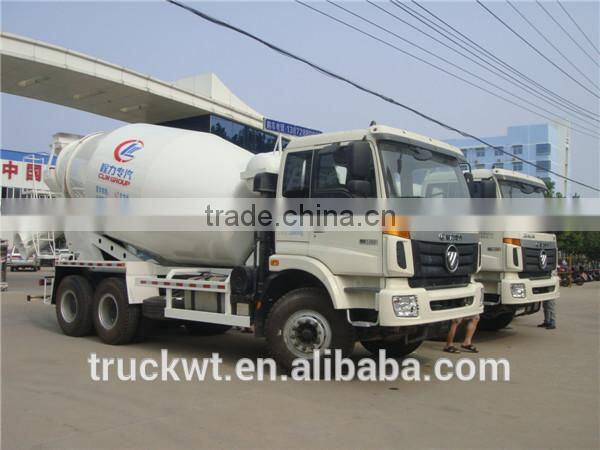

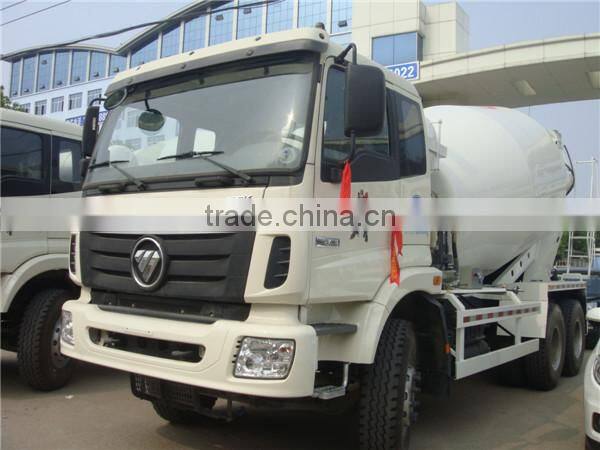

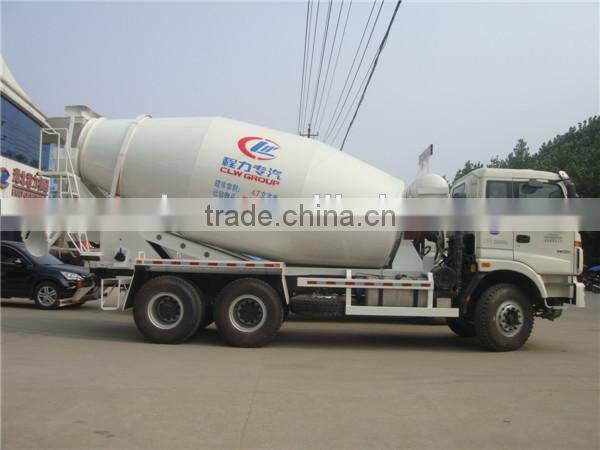

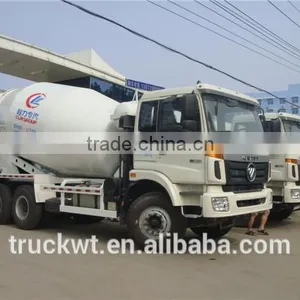

Picture of FOTON AUMAN 6x4 concrete agitator truck for sale
We, Chengli Special Automobile Co.,Ltd.are a professional manufacturer and exporter.We located in Suizhou City, Hubei Province, in the middle of China, with convenient transportation access.All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.we have received ISO9001:2008 certificate and Chinese TOP 500 Certificate
As a result of our high quality products and outstanding customer service,we have gained a global sales network reaching Africa,Southeast Asia, Middle and South America,the Middle East and other regions.
