FOTON Small Loudspeaker Van

US$ 10,000 - 49,999 MOQ: 1 Unit

Key Specifications

Condition:

New

Capacity (Load):

Other, 100kg

Drive Wheel:

4x2

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Capacity (Load) Other, 100kg

Drive Wheel 4x2

Horsepower Other, < 150hp

Transmission Type Manual

Emission Standard Euro 3

Fuel Type Diesel

Size 5130x1900x2750

Gross Vehicle Weight 3985

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW LED

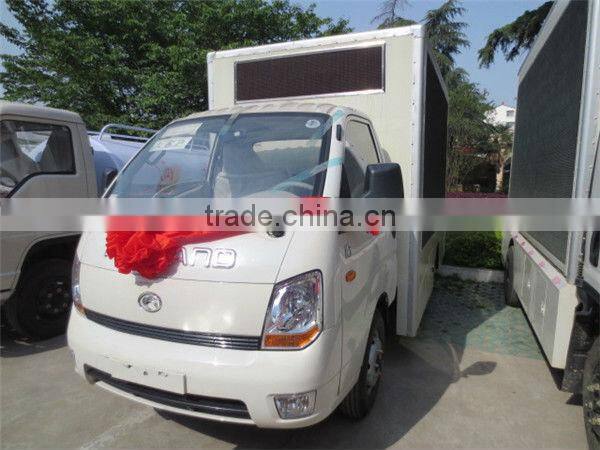

FOTON small Loudspeaker Van

[Main Technical Parameters]
Product Name	Mobile Louder Speaker	Brand		CLW
Gross Vehicle Weight(Kg)	3985	Curb Weight(Kg)		3855
Cab Allowed Persons	2	Overall Dimension(mm)		5130×1900×2750
F/R Suspension(mm)	1185/1245	Appr/Dep. Angel(°)		18/22
Alex No.	2	Wheelbase(mm)		2700
Alex Load(Kg)	1515/2470	Max. Speed(Km/h)		90
[Chassis Technical Parameter]
Chassis Model	BJ1046V9JB5-H1	Chassis Brand		FOTON
Overall Dimension(mm)	4940×1715×1980	Tyre No.		6 with 1 spare tyre
Appr/Dep. Angel (°)	18/22	Tyre Specification		6.00-14
Spring Leaf No.	3/5	F/R Suspension(mm)		1185/1055
Front Track(mm)	1385	Rear Track(mm)		1280
Gear Box	5 speed forward and 1 reverse	Axle Load(kg)		1515/2470
[Engine Technical Parameter]
Fuel Type	Diesel	Emission Standard	EuroⅢ
Engine Model	4B1-82C40	Brand		QUANCHAI
Displacement(ml)	2156	Power(Kw)		60
Remarks:1.Equipped with Air condition, loading sensing pressure proportoining valve (SABS), Maintenance free battery 2.Equipped with super silent generator,computer console, 4x60W waterproof column loudspeaker, high power amplifier. 3.LED full color P10 high lightness display screen, the lifetime of LED is 100 thousand hours and the lightness is up to 7000cd.LED transistor are all famous brand in China.
