5000 liters fuel tanker truck liquid tanker trailer oil tank semi-trailer
Mobile:0086-13545915671
Skype: joycefang101
Wechat: 13545915671
Whatsapp: +86-13545915671
Aluminum/carbon Steel Truck Trailer Liquified Petroleum Gas Tanker
1. we are manufacture of fuel tank semi trailer more than 10 years.
2. our petroleum tanker semi trailer : 3 axles, 4 axles, 2 axles.
3. petroleum tanker capacity : 50000liters, 45000liters,40000liters...30000liters,etc.
4. petroleum tanker material : steel, stainless steel, aluminum alloy
5. petroleum tanker semi trailer type: chinese standard or European standard.
Product Specification | |
Tank Body | |
Model |
Clw Oil tank semi-trailer |
Volume( m³ ) |
20-60 |
Dimension(mm) |
11470x2500x3900(Exact size depends on final design) |
Shape |
Round or Square optional |
Tank Material |
Carbon/Stainless Steel, Aluminum/Aluminum Alloy |
End Plate |
5/6mm Q235 Carbon Steel |
Manhole Cover |
Carbon/Aluminum Alloy/API, 500mm |
Bottom Valve |
Aluminum API pneumatic bottom valve |
Discharging Valve |
Diameter: 3/4 inch |
Discharging Pipe |
4’’rubber hose, 2pcs, 6m/each |
Compartments |
Optional |
Cat Walk |
With(common model or special design) |
Chassis | |
Main Beams |
Welding or special design,connected by bolts and nuts Q345 carbon steel |
Axle |
2/3 axles, Brand: BPW/FUWA/HUAJING |
Landing Gear |
JOST/China Best Brand |
King Pin |
JOST 2.0 or 3.5 inch bolt-in |
Suspension |
Mechanical suspension/Germany or America type/Air suspension |
Leaf Spring |
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12/without |
Pneumatic Braking System |
WABCO RE 6 relay valve; Spring brake chamber(TKL brand) |
Rim |
9.00-22.5/8.00-20/8.5-20 China Brand |
Tire |
12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be Optional |
ABS |
Optional |
Painting |
Complete Chassis sand blasting to clean rust |
Accessories |
One standard tool box |

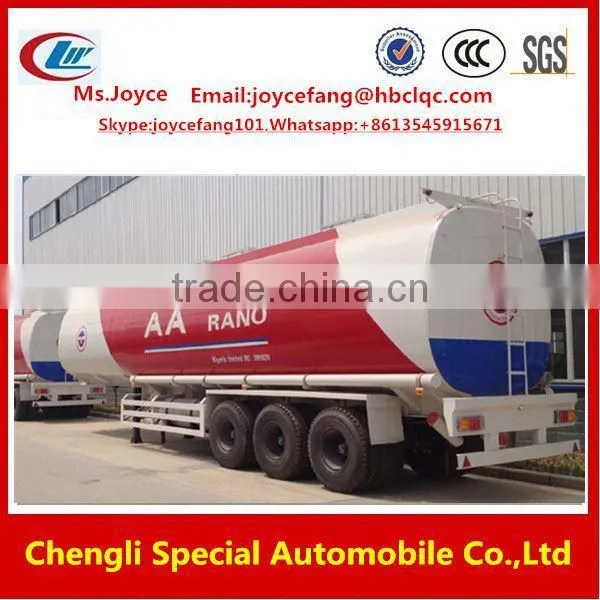

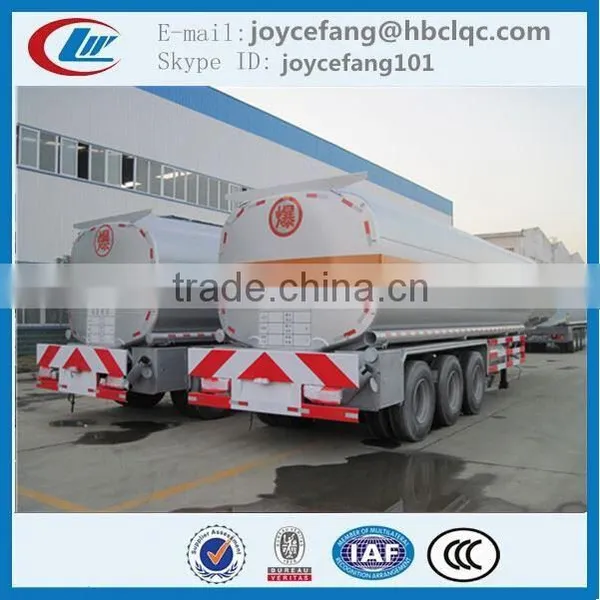

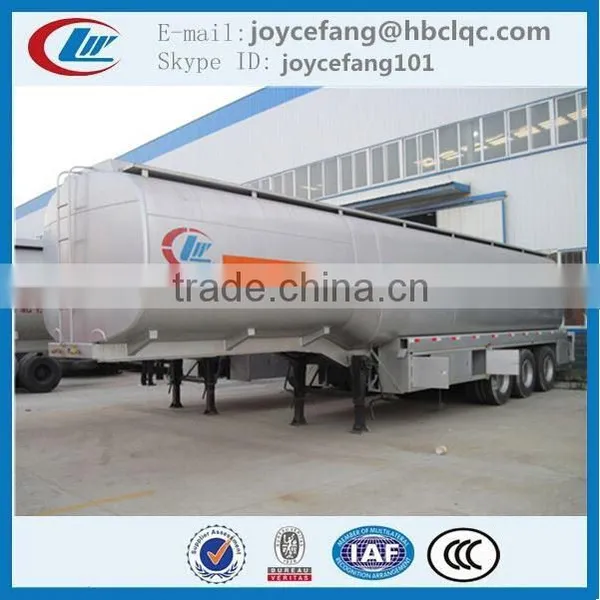

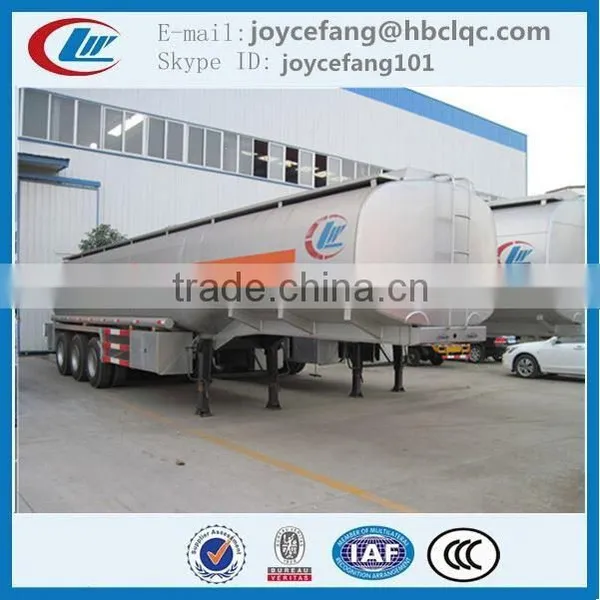

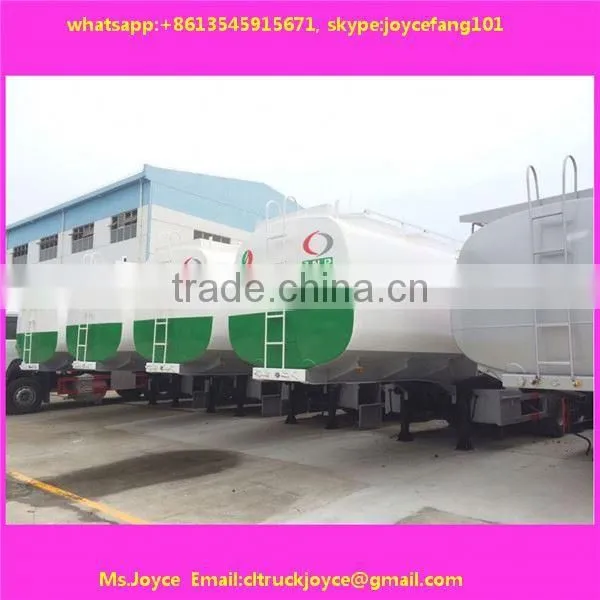

CLW Fuel Tank Semi Trailer Images :

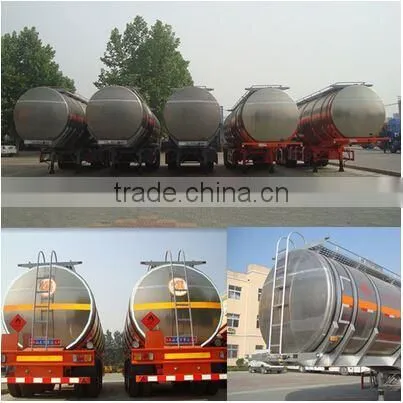

CLW Fuel Tank Semi Trailer Details Images :
Fuel Tanker Semi Trailer is shipped by bulk,ro-ro or container .
Fuel Tanker Semi Trailer/Oil Tank Truck Manufacture : Chengli Special Automobile Co.,Ltd
WELCOME TO VISIT OUR FACTORY !
Welcome to order fuel tanker trailer,petroleum tanker semi trailer from me :
