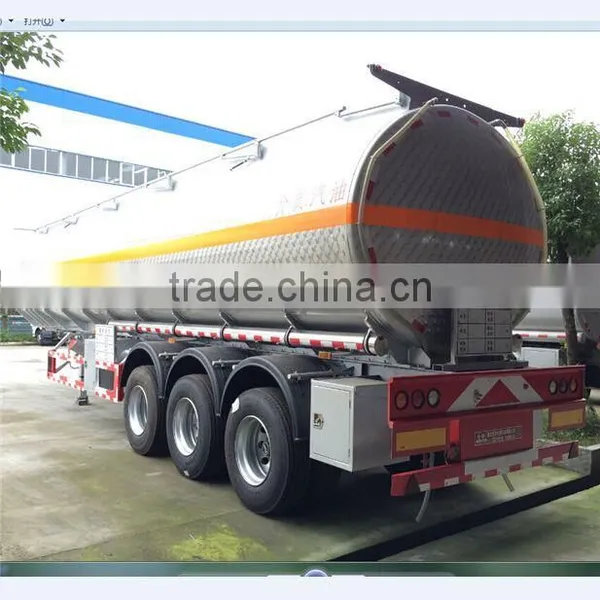

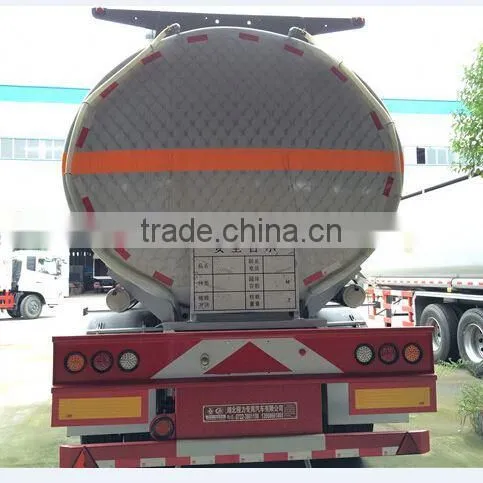

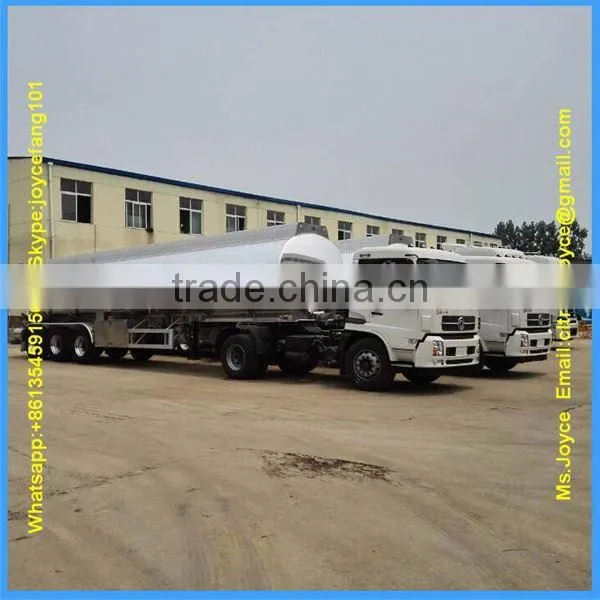

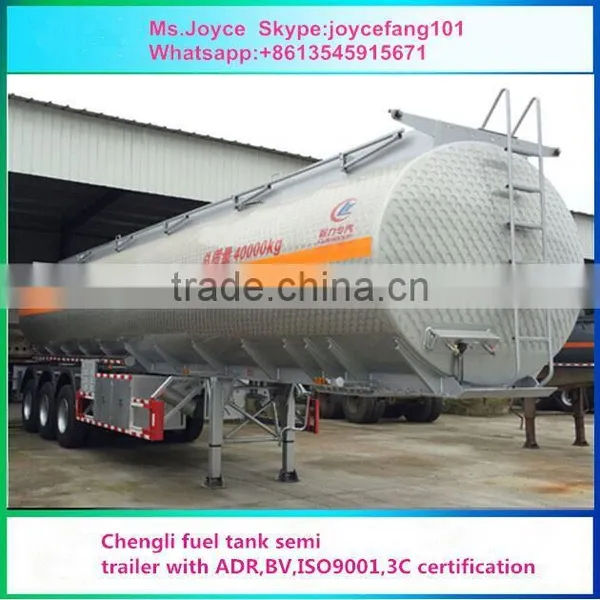

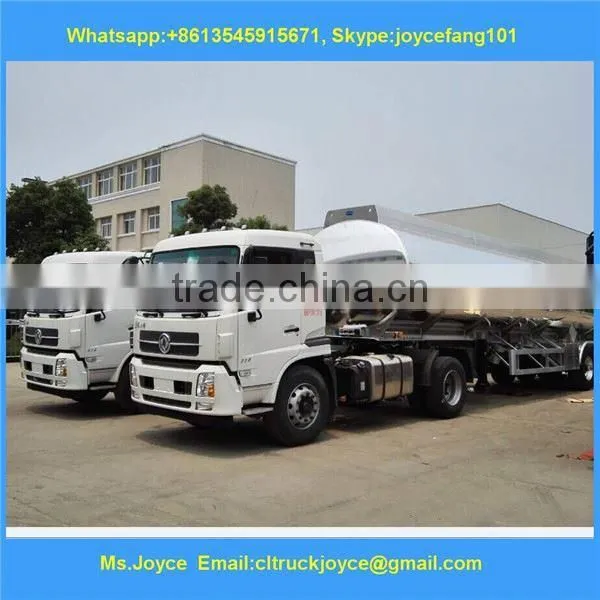

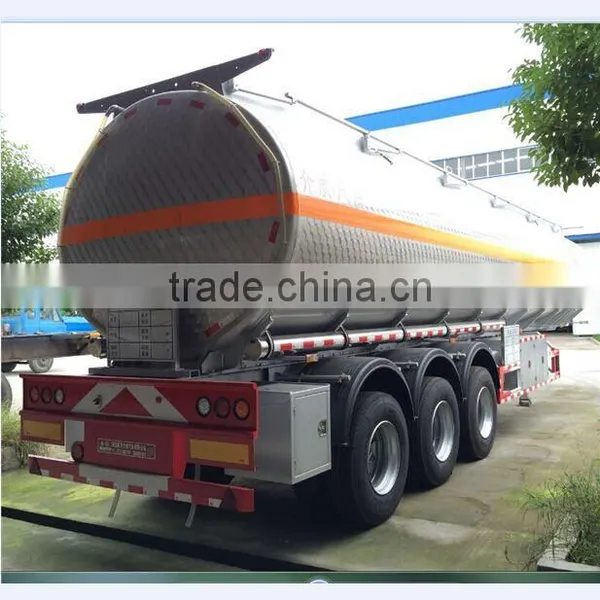

45000liters stainless steel oil liquid semi-trailer fuel tank

                                         Product Specification

Tank Body

Model

Stainless steel fuel tank semi trailer

Volume( m³ )

20-60

Dimension(mm)

11470x2500x3900(Exact size depends on final design)

Shape

Round or Square optional

Tank Material

Carbon/Stainless Steel, Aluminum/Aluminum Alloy

End Plate

5/6mm Q235 Carbon Steel

Manhole Cover

Carbon/Aluminum Alloy/API, 500mm

Bottom Valve

Aluminum API pneumatic bottom valve

Discharging Valve

Diameter: 3/4 inch

Discharging Pipe

4’’rubber hose, 2pcs, 6m/each

Compartments

Optional

Cat Walk

With(common model or special design)

Chassis

Main Beams

Welding or special design,connected by bolts and nuts Q345

carbon steel

Axle

2/3 axles, Brand: BPW/FUWA/HUAJING

Landing Gear

JOST/China Best Brand

King Pin

JOST 2.0 or 3.5 inch bolt-in

Suspension

Mechanical suspension/Germany or America type/Air suspension

Leaf Spring

90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12/without

Pneumatic Braking System

WABCO RE 6 relay valve; Spring brake chamber(TKL brand)

Rim

9.00-22.5/8.00-20/8.5-20  China Brand

Tire

12.00R22.5/315 80R22.5/11.00R20/12.00R20

Brand can be Optional

ABS

Optional

Painting

Complete Chassis sand blasting to clean rust

Accessories

One standard tool box
