48m3 propane semi trailer, lpg gas cylinder trailer
1.What LPG truck trailer do we have ?
We have 2 axles Lpg semi-trailer,3 axles semi-trailer, FAW 6x4,8x4,DFAC 4x2,6x4,8x4,Foton 6x4,8x4 etc.
2.What’s load and capacity of LPG tank ?
Chengli tank load propane, liquid ammonia,isobutene,propene,dimethyl ether,methylamine,oil,fuel and chemical liquid,etc.
The capacity of tank : 1m3-150m3 or customized.
3. What is the standard of lpg truck trailer ?
The design,manufacture and inspection are quite up to standard of “Technologic Supervision Regulations On Safety Of Pressure Vessels”, “Regulation of safety supervision for liquefied gas tank truck” and “General technical conditions of Semi Trailer”.
Design pressure:
Propane : 1.77Mpa
Isobutane:0.79Mpa
Dimethyl ether : 1.19Mpa
Propene,liquid ammonia : 2.16Mpa
4.Why choose our LPG truck trailer ?
The product is safe and reliable, and we have A2,C2,C3 Pressure vessel manufacturing license are issued by AQSIQ. We have passed ISO9001.
We have more than 8 years experiences in manufacturing LPG tank,LPG semi-trailer, use scientific and advanced processing, it ensure the lowest shrinking percentage,the highest dimensional stability, the lowest rate of evaporation,so it safety operation and reliable.
5. The technical specification of 48m3 lpg gas cylinder trailer
Items | Data | Items | Data | ||||
| Gross Vehicles Weight (GVW) | 40000 Kg |
| Design temperature | ≤50 | ||
Payload(Product weight) | 27000 Kg | Filling medium | LPG (Propane) | ||||
Loading capacity | 48 m3 | Tank material | Q345R | ||||
Pressure of leak test | 1.827 Mpa | Corrosion allowance | 1.0mm | ||||
External Dimensions
| 12050×2490×3880mm | Heat treatment method | PWHT | ||||
Tank mass | 13600Kg | ||||||
Hydraulic test pressure | 2.74 Mpa | ||||||
Full load | Fifth wheel load | 17200Kg | Internal Dimensions Internal | 11734*Φ2374mm | |||
Rear axle load | 24800Kg | ||||||
Max. vehicle roll angle | 350 | ||||||
Design the limited velocity | Straight road | 80 Km/h
| Vessel's sort | The third kind | |||
Turning | 20 Km/h | Service Years | Ten years | ||||
U. V | Type | QGJ43F-2.5 Or FISHER internal valve C427-16-25 C427-24-50 |
S . V | Type | A412F-2.5 Or FISHER Relief valve H732-275 | ||
Nominal pressure | PN2.5Mpa | Model | Inner full lift | ||||
Nominal diameter | Gas phase | DN 25mm | Nominal pressure | PN2.5 MPa | |||
Liquid phase | DN 50mm | Nominal diameter | DN80mm | ||||
Operation way | Manual | Opening pressure | 1.92~2.01 MPa | ||||
Closing time | 10 Sec | Closing pressure | >1.54 MPa | ||||
Melting switch temperature | 70±5 | Complete opening pressure | <2.19 MPa | ||||
I. L | Type | YWJ-2.5A RN1200 |
L.U. S
| Valve type | Q41F-2.5P /CQA41F-25P | ||
Model | Rotary type | Model | Quick tie-in | ||||
Nominal pressure | PN2.5Mpa | Nominal Diameter | Gas phase | DN25mm | |||
Surveying range | 0~2400mm | Liquid phase |
DN50mm | ||||

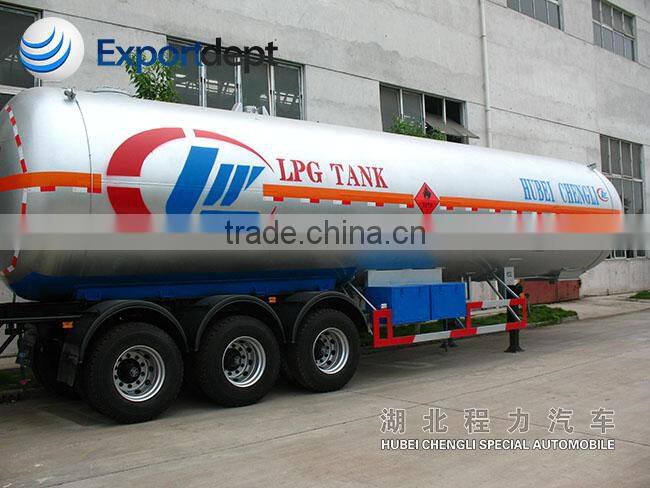

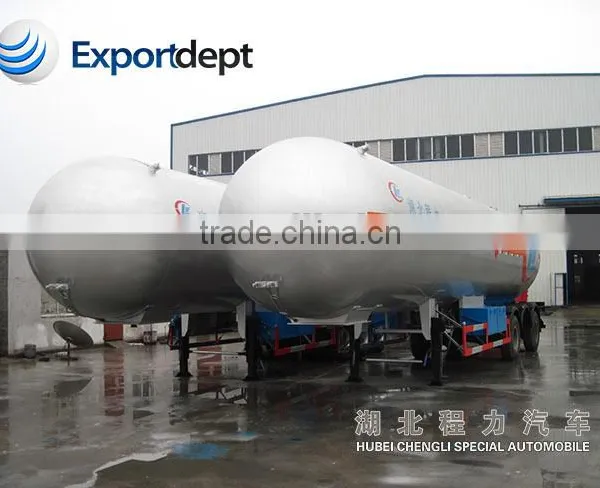

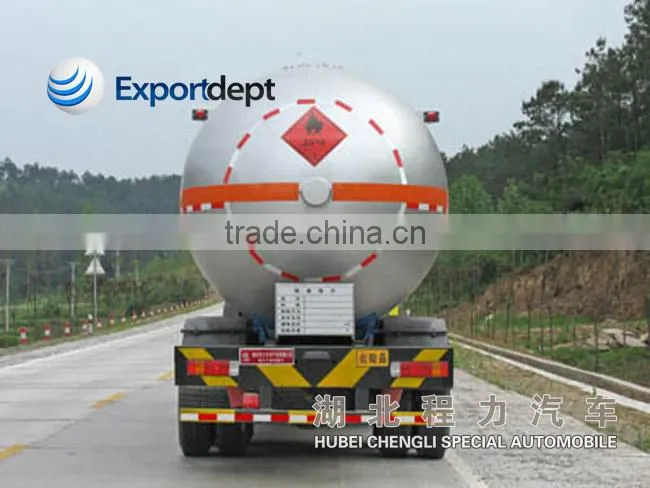

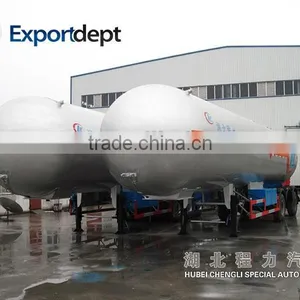

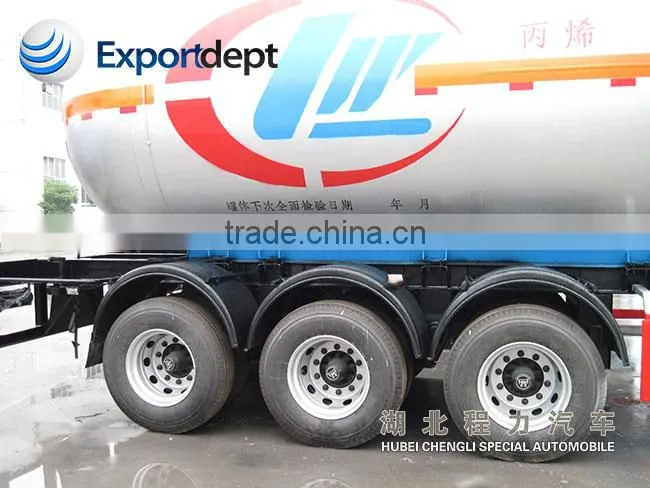

6. The pictures of lpg gas cylinder trailer :
7.Accessories of lpg gas cylinder trailer :

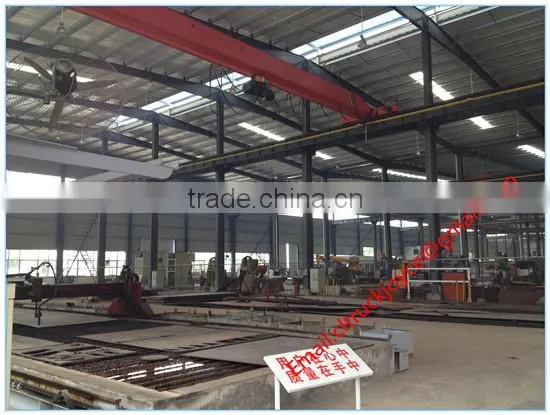

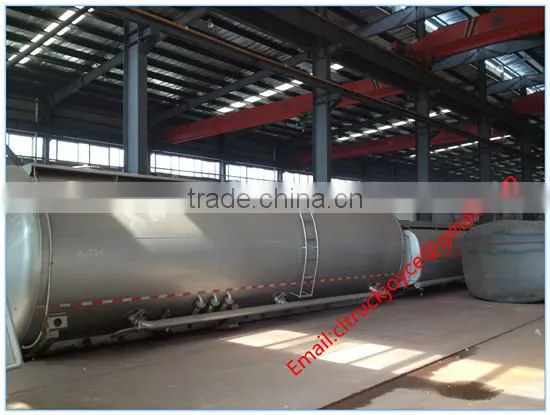

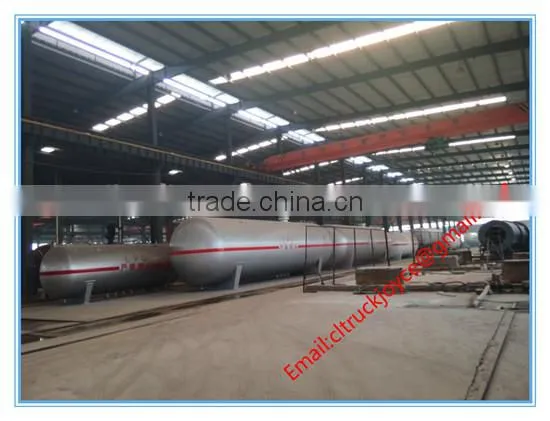

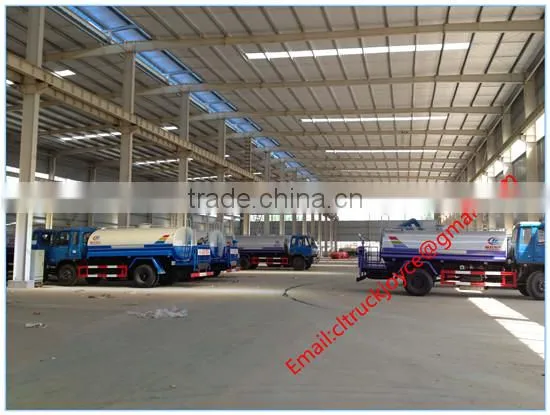

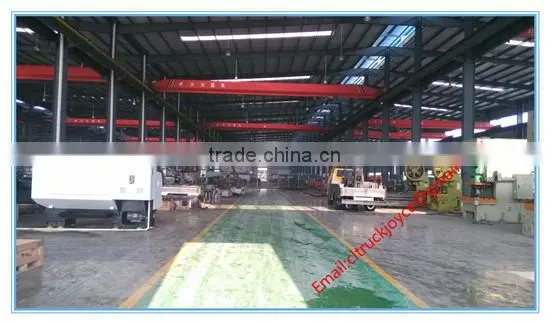

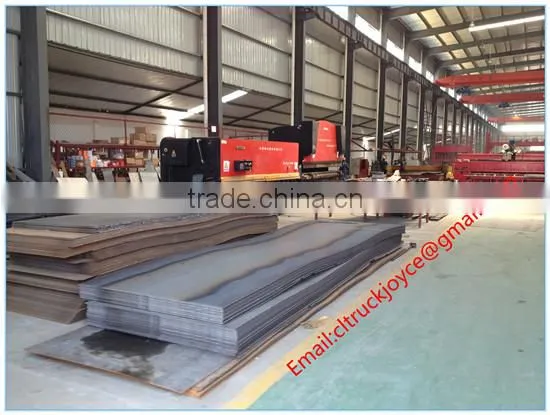

8.Factory scene :
9. Main certificate :
10.Contact and others :
More specs , photos, price, delivery time and other need, please contact
Ms. Joyce.Fang Tel: 0086 13545915671 Skype: joycefang101
Welcome to visit our company! Suizhou,Hubei ,China!
