8m3 lpg gas cylinder,lpg gas cylinder filling
- 500 Unit / Units per Month
- any port of china
- T/T
You May Like
-
Dongfeng 4x2 mini fire rescue truck manufacture
-
New 8cbm Cleaning Sweeper Truck/Street Cleaning Truck With Snowing Cleaning Equipments/Road Sweeper Trucks For Sales
-
10000Liters High Pressure Road Washer Truck With Hydraulic Lifting
-
10cbm oil transportation tank truck fuel truck oil tanker truck
-
service truck oil tanks 5000 liters fuel tanker truck
-
heavy oil tanker truck price 20000 liters fuel tank truck for sale
Product Details
| Condition | New | Place of Origin | Hubei, China | |
| Brand Name | CLW | Model Number | CLG1600-08 | |
| Dimension(L*W*H) | 4270*1620*2210mm | Capacity | 8,000l | |
| Weight | 2540kg | After-sales Service Provided | Overseas third-party support available |
Product Description
8m3 lpg gas cylinder,lpg gas cylinder filling ,LPG tank
LPG gas cylinder 8,000L
Our LPG tank all passed strict detection of quality and identification of specialist angencies.
Semi-trailer running gear can be configured according to user requirements air suspension system or a leaf spring suspension. Our biggest LPG semi-trailer can carry 58.8-cbm tanker which is the biggest & the best in China.
TANK MATERIAL: Q345R, 16MnIII

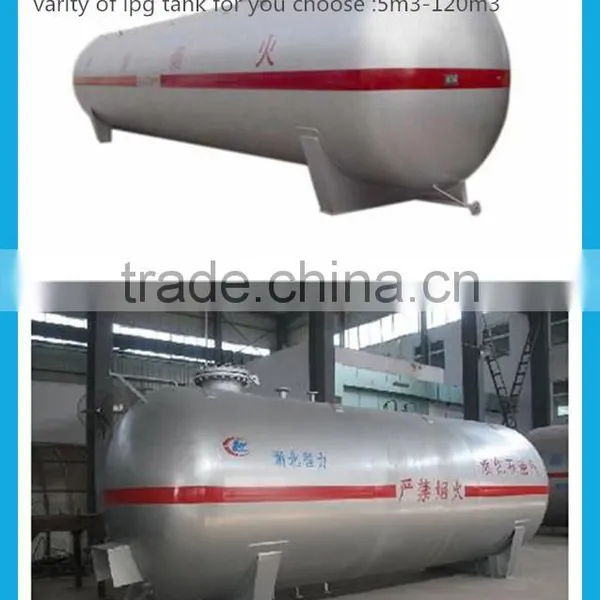

MODEL: 5m3,10m3,12m3,15m3,20 m3,25m3,30 m3,50m3,60m3,80m3,100m3,120m3,or customized.
item | unit | parameters | ||
Products name |
| LPG storage tank | ||
Products number |
| CLG1600-05 | CLG31600-08 | CLG1600-10 |
Filling medium |
| LPG(propane) | LPG(propane) | LPG(propane) |
Overall dimentions(L*W*H) | mm | 3070*1620*2210 | 4270*1620*2210 | 5260*1620*2210 |
Tank size(inner diameter*thickness*length) | mm | DN1600*10*3070 | DN1600*10*4270 | DN1600*10*5260 |
volume | m3 | 5 | 8 | 10 |
Net weight | kg | 2030 | 2540 | 2950 |
Designing pressure | Mpa | 1.77 | 1.77 | 1.77 |
Working pressure | Mpa | ≤1.6 | ≤1.6 | ≤1.6 |
Working temperature | °C | ≤50 | ≤50 | ≤50 |
Hydraulic test pressure | Mpa | 2.22 | 2.22 | 2.22 |
Air test pressure | Mpa | 1.77 | 1.77 | 1.77 |
Material of tank and accessory | Q345R,16MnIII | |||
standard | GB150 Steel pressure vessel, pressure vessel safety technology to monitor the procedures | |||
accessory | Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. | |||

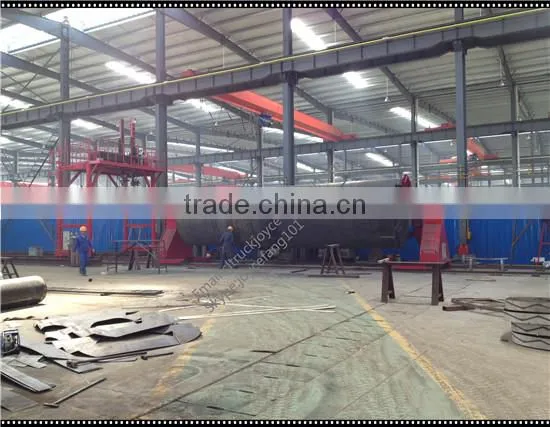

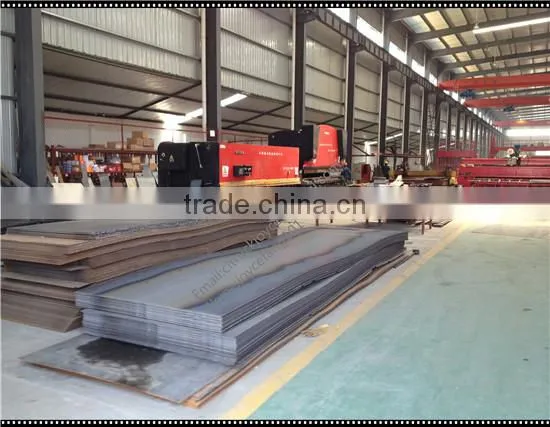

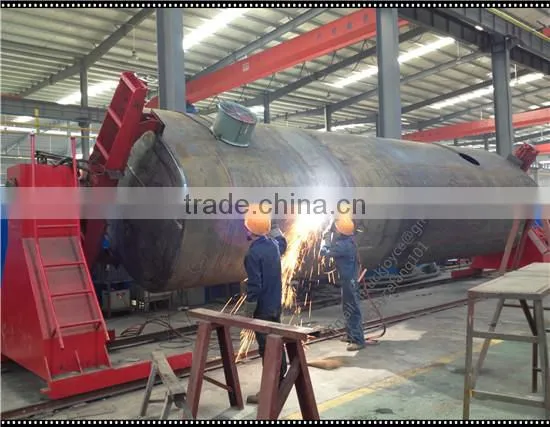

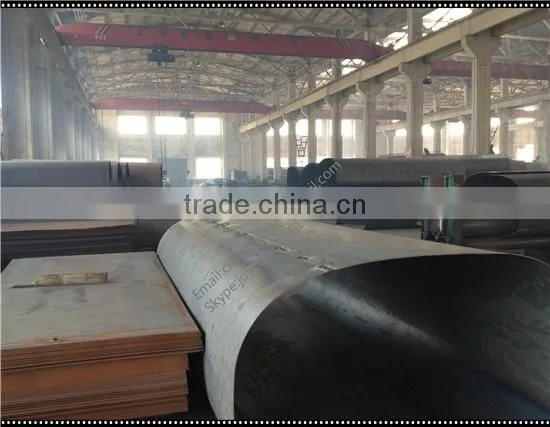

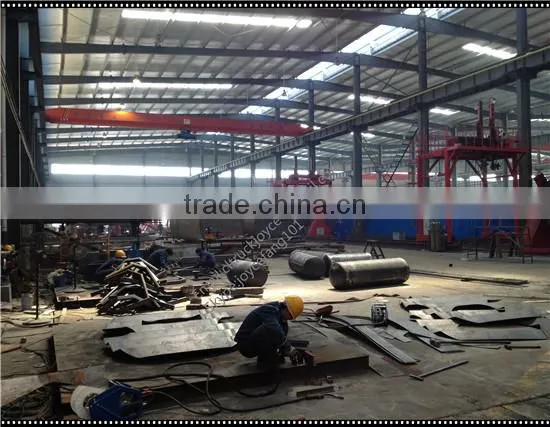

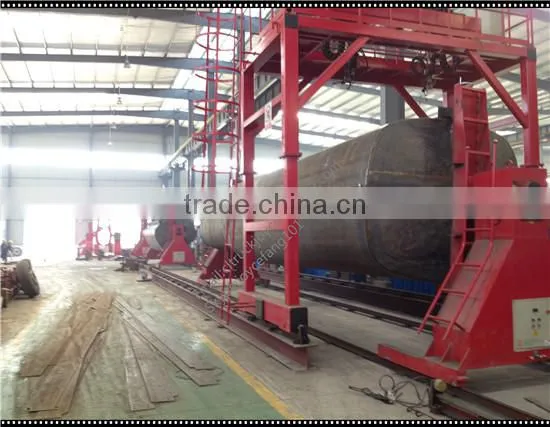

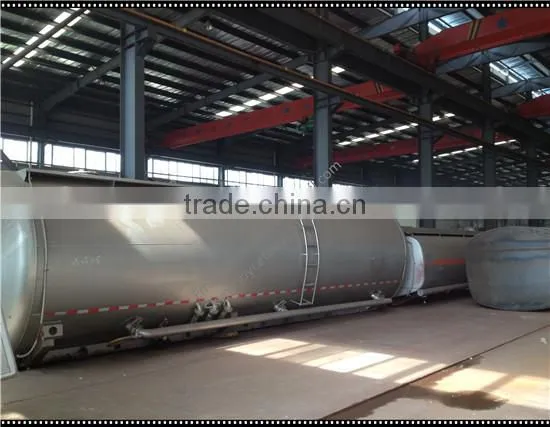

Production flow of LPG storage tank
Contact and others
More specs , photos, price, delivery time and other need, please contact
Ms. Joyce.Fang Tel: 0086 13545915671 Skype: joycefang101
HUBEI CHENGLI SPECIAL AUTOMOBILE CO.,LTD
All our customers are becoming our good friends and long term parters.
Welcome to visit our company! Suizhou,Hubei ,China!
