Shacman 15m3 Water Truck,15000 Liter Water Truck,15 Ton Water Truck
6x4 drive,engine: WP10.270E32
tanker load volume:10-15cubic
Shaanxi water tanker truck 15cubic meter
used for sprinkling and irrigating of environmental sanitation and landscaping, also used for water transportation.
*The truck can sprinkle water both in front and at the back,also can spray from the side parts.With the work platform at the back,on which installed the high pressure gun.The gun can rotate 360 degrees all directions.
*Equipped with the Hangzhou Weilong sprikling water pump
*Accessory option the 20m hose reel.With gravity-flow valve,fire fighting hydrant,and self-primimg pump which can suck and drain off water.
*The tank body has adopt 4mm or 5mm carbon steel ,Inside the tank body,we have used advanced butt welding technology and shot blasting disposal to make sure the tank be rustless.
*Using advanced paint baking technology which makes the tank good-looking and durable.After the molding of tank, we ‘ll make a leak detection test.The taken of above measures can make our products high strength ,barycenter stable and delivery safty.
*All the sprinkles have the spraying function.It can also embedded the chemical chassis,air-operated valve,high pressure chemical spray equippments,etc for the use of chemical-spraying.
| Specification | Chassis brand | ||
| CHASSIS | Brand | Shacman | |
| Chassis Model (Model No.) | SX1255JM434 | ||
| Drive Mode | 6X 4 | ||
| Tire | 11.00-20 | ||
| Engine | Model | WP10.270E32 | |
| Horsepower (Hp) | 199kw /270hp | ||
| Dispalcement(ml)/Power(kw) | 9726 | ||
| Emission | Euro 2 | ||
| Main Parameter | Overall dimension (MM) | L*W*H | 10475×2496×3210 |
| wheelbase | 4325+1350mm | ||
| Axles No. | 3 | ||
| Weight (KG) | Gross weight | 25000 | |
| Payload weight | 12770 | ||
| Kerb weight | 12100 | ||
| Leaf spring No. | 9/12 | ||
| Approaching/Deparature Angle(°) | 15/10 | ||
| Front/Rear Track(mm) | 2036/1800 | ||
| Water Pump | 65QZ-40/90 | ||
| Pump Specification | Flow rate:40m³/min(1000L/min),Delivery lift height:90m,Input shaft rotational speed:1180r/min,Shaft power:22.5kw, self-priming height:6.5m,self-priming time:1.5min/4m, pump diameter:65mm,vertical suction height>7m,spraying width >14m,spraying range>28m | ||
| Special Equipment | Preshoot/ lateral jet / virescence cannon φ50 | ||
| PTO | Special PTO for water tank truck, | ||
| Paint | High quality paint,Corlor as customer's request | ||
| Material | 5mm Carbon Steel | ||
|
Water Tank dimensions (L*Long axle*short axle) (mm) |
6600×2304×1304 | ||
| Capacity | 15000L | ||

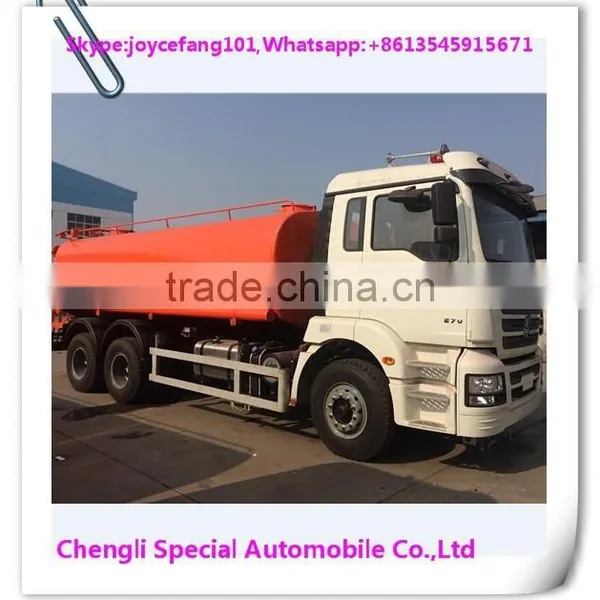

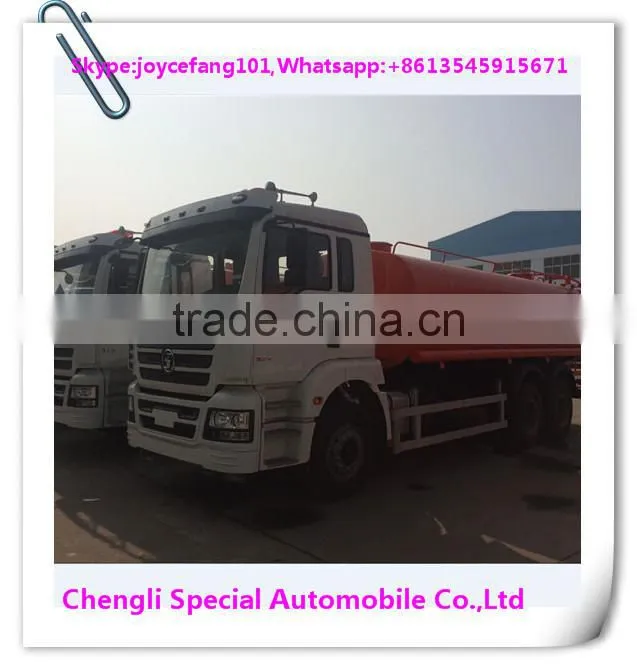

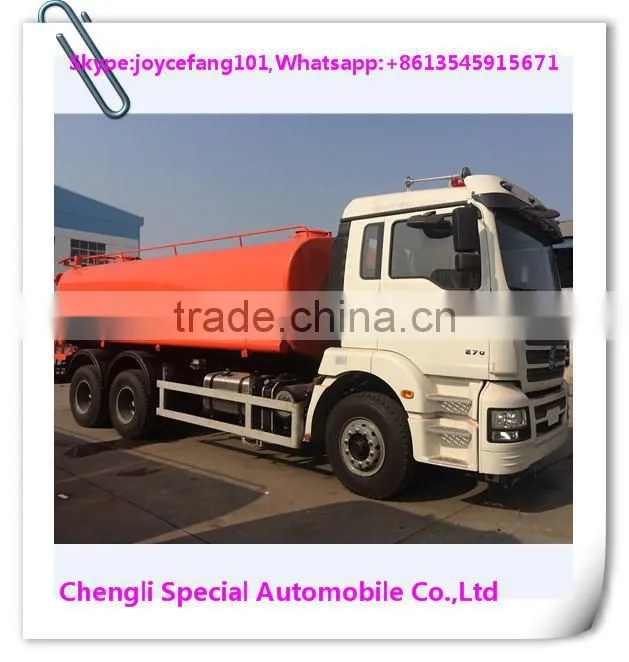

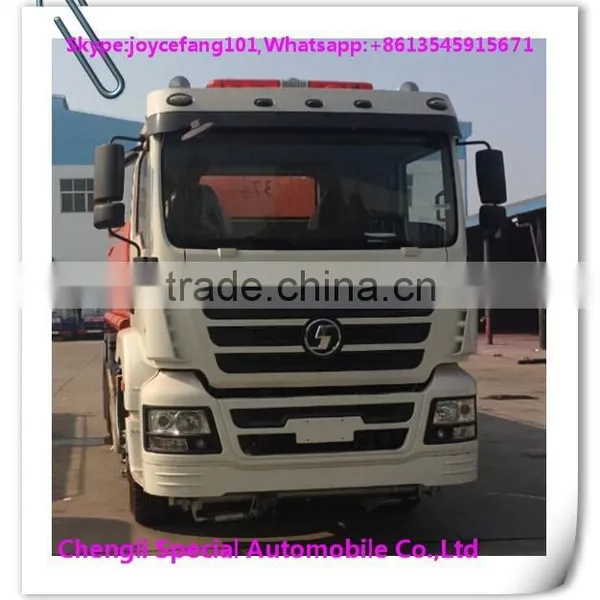

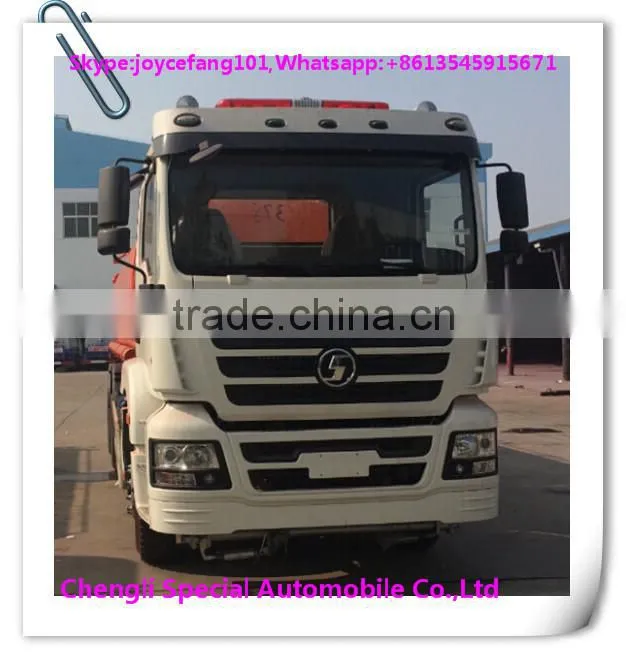

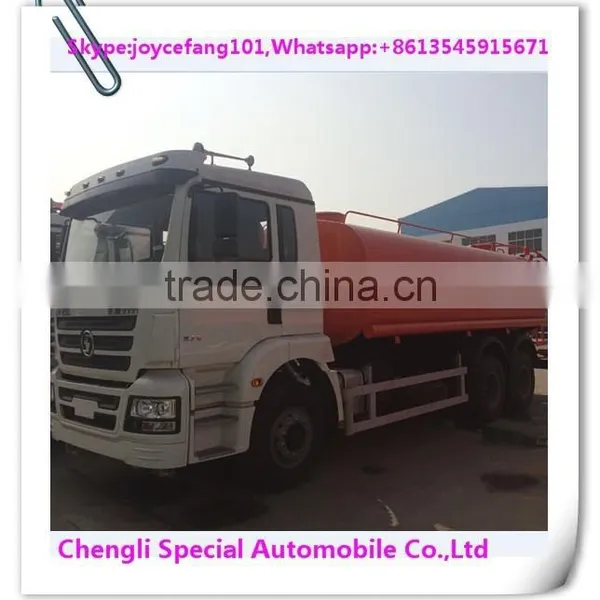

15000 liters water tank truck photos :

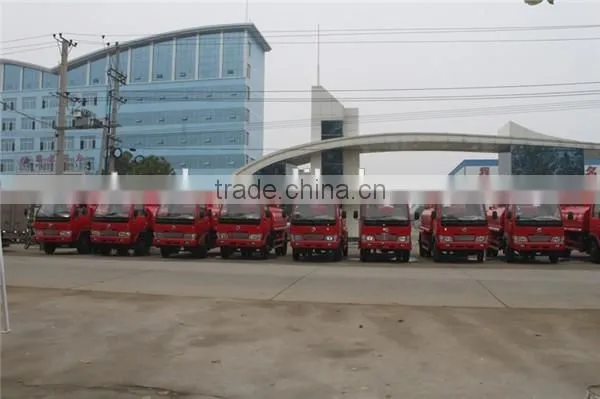

Shipment &Package
We also can produce and supply:
Our leading varieties include more than 300 types of trucks and tanks such as
1.Water truck 2.Fecal suction truck 3.Garbage truck
4.Sewage suction truck 5.Fuel tank truck 6.High altitude operation truck
7.Truck with crane 8.Dump truck 9.Instructional truck
10.Van truck 11.Semi-trailer 12.Fire engine, Spares
13.Refrigerator truck 14.Water wagon 15.Tractor
16.High-altitude water truck 17.Bulk cement tank truck 18.Chemical liquid tank truck
19.Concrete mixer truck 20.Led advertising truck 21.Bulk cement tank semi trailer
1.Pament terms:
30% T/T payment in advance,70% to be balanced before delivery from Shanghai port.
2.MOQ: 1set
3.Contact me :
If you are interested in any types of our products or even you have special needs or confusions, plz. contact Joyce Fang, who is professional in this field and always willing to give you a hand.
