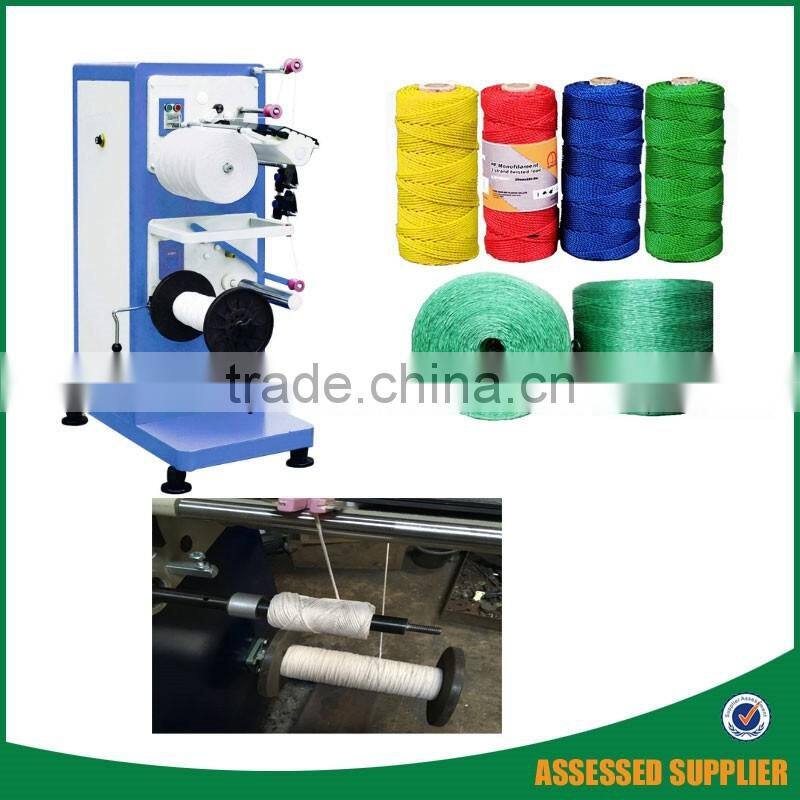

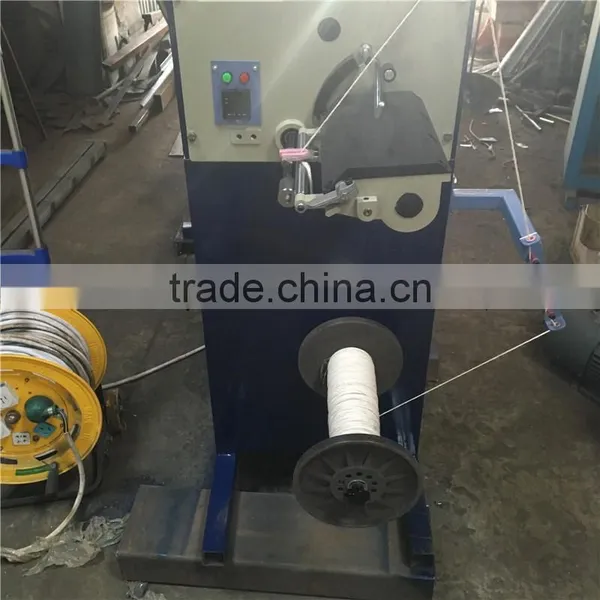

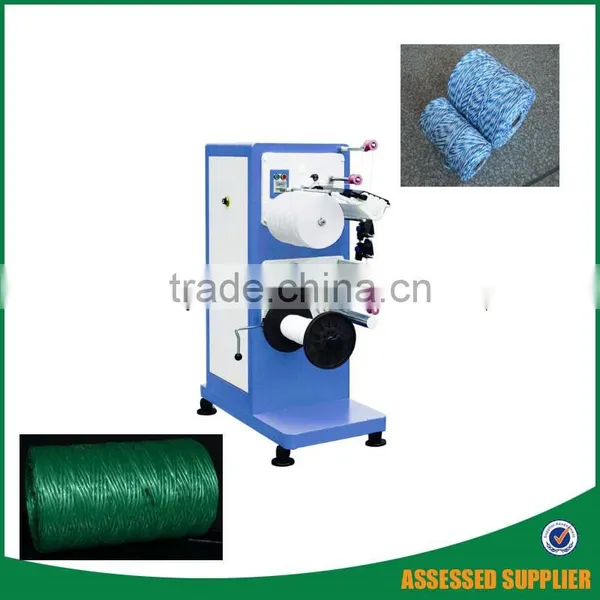

High precision constant tension single spindle winding machine
Performance and Characteristics:
Your satisfaction is our huge motivator!

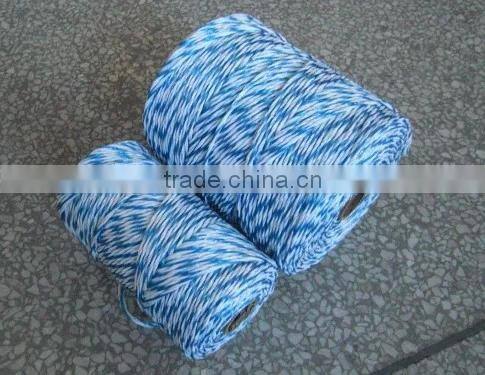

The high precision constant tension single spindle winding machine is mainly used for textile, chemical fiber,yarn making, light industry and electronic industry etc. This winding machine owns advantages of high speed, good bobbin formation, automatic constant tension, low loss etc, it’s superior to other products of the same type. It’s applied for taking up yarn with density range of 60-280 tex; width range of 1-6mm (width range > 6mm can be custom-made in limited range). It’s suitable for folding thread, split film yarn, carbon fiber, stainless steel fiber, as well as for round wire, spun, foamed filament, vegetable fiber yarn, soft metal silk ribbon, paper yarn, blended yarn etc.
This machine by magnetic disc, adjust the winder speed to be synchronized with the extruder. Main components are made of superior material and by imported CNC machine one step finished. The quality of these components is excellent and the working life is much longer.
The winding speed is above 280m/min.
Main Technical Parameters
Type | RW-200 | RW-400 |
Take-up speed | 6-280m/min | 6-280m/min |
Maximum take-up traverse | 200mm | 400mm |
Power supply | AC 380/220V 50Hz/60Hz | AC 380/220V 50Hz/60Hz |
Motor power |
180W/spindle |
180W/spindle |
Motor speed | 2800r/min | 2800r/min |
Connecting cable | 4×1.5mm R.S.J.MP | 4×1.5mm R.S.J.MP |
Take-up bobbin material |
Iron, aluminium and plastic bobbin can be used according to customer’s request. |
Iron, aluminium and plastic bobbin can be used according to customer’s request.. |
Take-up bobbin size |
Inner dia.xOutlet dia. x L 38mmx41mmx230/270mm |
Inner dia.xOutlet dia. x L 38mmx41mmx230/270mm |
Traverse control | 203/270mm | 203/270mm |
Single spindle panel size | WxL 390x308mm | WxL 390x308mm |
Pre-sales services
* Any concerns of our machine by email/phone will be replied ASAP within 24 hours
* Inquiry and consulting support
* Sample testing support
* View our factory
After-sales service
*Traning how to install the machine ,tranning how to use the machine
*Engineers are avaiable to service machinery overseas
*One year guarantee for the machine expect the spare part ,we can supply lifelong technology service to slove any problem form you .
