Characteristics & Mechanical Configurations:
Model Number | SN2013014 | SN2013015 |
Fan Host Size | Dia.317x175mm | Dia.368x175mm |
Air Duct | 12 inch | 14 inch |
Air Flow | 520 CFM | 600 CFM |
Fan Motor | brushless DC | brushless DC |
Motor Speed | 1650RPM | 1450RPM |
Fan Blade Material | Aluminum | Aluminum |
Case Material | Galvanization steel | Galvanization steel |
Mounting | Wall & Rooftop flexible mount | Wall & Rooftop flexible mount |
Product Weight | 11.9 kg | 12.1 kg |
Packing | 1set/carton/0.091 cbm | 1set/carton/0.091 cbm |
Product Type | Solar, Power Storable Rechargeable | Solar, Power Storable Rechargeable |

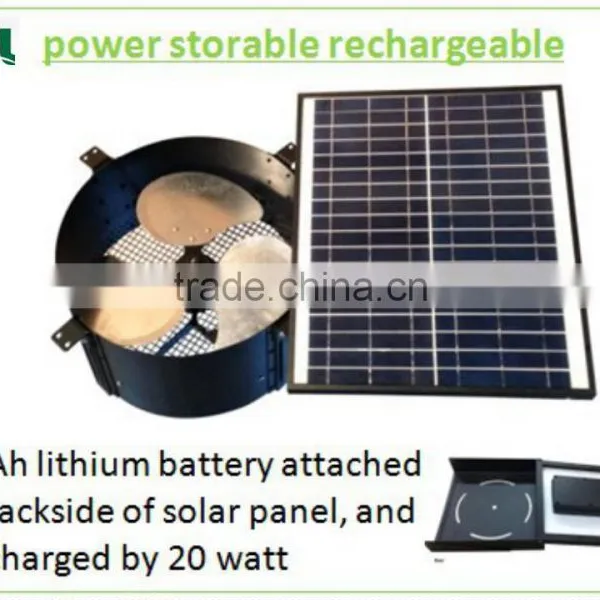

Solar Panel | 40 watt (495x550x25mm) 15w connects with motor to work directly at daytime, 25w connects with battery to store energy at daytime and supports motor to work at night | 40 watt (495x550x25mm) 15w connects with motor to work directly at daytime, 12w connects with battery to store energy at daytime and supports motor to work at night |
Solar Battery System | 9.6Ah storable rechargeable lithium battery, can back up ventilation fan working 5-7 nights after battery is fully charged | 9.6Ah storable rechargeable lithium battery, can back up ventilation fan working 5-7 nights after battery is fully charged |
Features & Functions Description:
1) Powered by clean & free solar energy, operating at ZERO commercial electronic costs.
2) Installed Easy & Flexible, fan host can mount to ANY building wall.
3) Solar panel is adjustable to capture most direct sunlight for stronger venting efficiency.
4) Once Pay, Benefit Forever and No Maintenance!
5) Remove harmful elements like excess heat, moisture, dust, toxic mould to prolong indoor appliances' lifespan.
6) Quiet and Safely enhance indoor air circulation to provide a more cozy living environment.
7) Power Storable & Rechargeable for ventilation fan working all-day-round for you!
Product Structures:
Our advantages / innovations from existing wall ventilating fans:
1. Clean & Free Solar Energy Guided, No Commercial Power Consumption Cost, No Pollution!
2. The fan starts working instantly when the sun shines, NO manual operation, No maintenance
3. Flexible Solar Panel with integrated Power Storable Rechargeable Solar Battery System, can adjust angle & rotate direction to capture most direct sunlight to generate power better, and support ventilation fan working continously all-day-round.
4. Active & Automatic ventilation performance, much higher venting efficiency than traditional Passive exhaust fans.
Service Life & Warranty:
* Metal Casing: service life 20 Years, warranty 15 Years
* Solar Panel: service life 25 Years, warranty 15 Years
* Brushless DC Motor: service life more than 7 Years, warranty 5 Years
* Battery: service life 5 Years, warranty 2 Years
Customization Service:
If you want to know more of our products, please don't hesitate to contact us, thanks!
