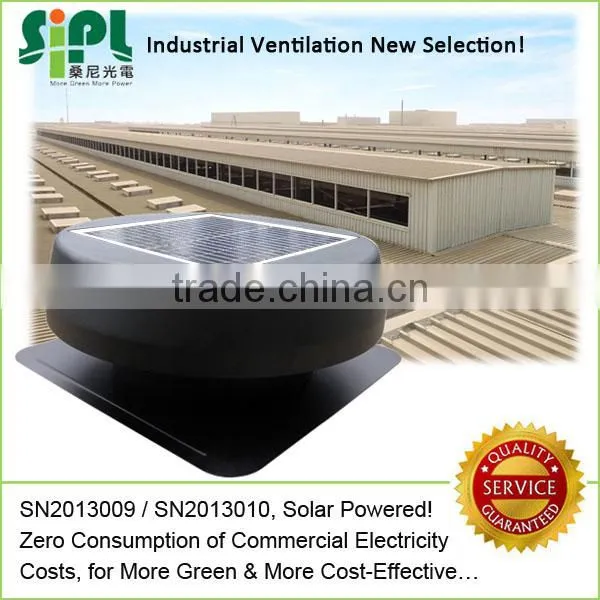

SUNNY FAN Industrial Ventilation Use Roof Mounting Heat Extractor Fan 12W Solar PV Module Powered Warehouse Air Exhaust Fan

SUNNY FAN Industrial Ventilation Use Roof Mounting Heat Extractor Fan 12W Solar PV Module Powered Warehouse Air Exhaust Fan photo-1
SUNNY FAN Industrial Ventilation Use Roof Mounting Heat Extractor Fan 12W Solar PV Module Powered Warehouse Air Exhaust Fan photo-2
SUNNY FAN Industrial Ventilation Use Roof Mounting Heat Extractor Fan 12W Solar PV Module Powered Warehouse Air Exhaust Fan photo-3
SUNNY FAN Industrial Ventilation Use Roof Mounting Heat Extractor Fan 12W Solar PV Module Powered Warehouse Air Exhaust Fan photo-4
SUNNY FAN Industrial Ventilation Use Roof Mounting Heat Extractor Fan 12W Solar PV Module Powered Warehouse Air Exhaust Fan photo-5
US$ 89 - 104 MOQ: 30 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SIPL
Model Number:
SN2013009
Payment & Shipping
Payment Methods:
Port of Shipment:
EXW / Jiangmen / Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name SIPL
Model Number SN2013009
Specification Normal
Application Industrial
Output Voltage (V) 18
Load Power (W) 12W
Solar Power (W) 12 watt
Work Time (h) as long as sun is shining
Product Features

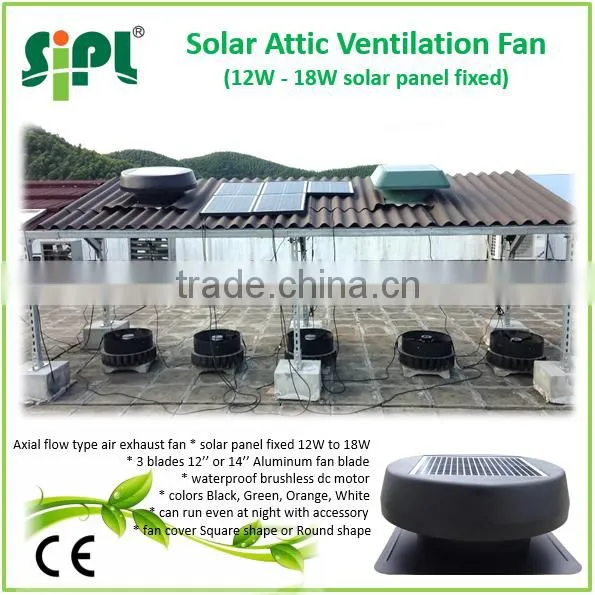

12 watt round shape Solar Attic / Gable Ventilation Fan with 12 inch aluminum fan blades

(below are some basic features of this solar fan model #SN2013009)

Module
Technical Parameter


Solar Fan SN2013009
Fan Housing Cap
Round shape (dia.530mm)
Air Duct Size
12 inch (dia.315mm)
Bottom Plate
Square shape
(regular: 530*530mm; maximum: 600*600mm)
Product Height
220mm



Solar Panel
Power & Assembly
12 watt / 18 volt polycrystalline,
size 354*354*4.5mm, embedded& fixed
Designed Lifespan
25 years
SIPL Warranty
15 years


Fan Casing
Material
Galvanization Steel, in outdoor powder coating finished
Optional Colors
Black / Green / Orange / White
Designed Lifespan
20 years
SIPL Warranty
15 years

Fan Motor
Motor type
6~21V brushless DC motor
(IP63 / IP68 waterproof)
Designed Lifespan
more than 8 years
SIPL Warranty
5 years
Package
1pc / brown carton / 0.148bm (packed 660*660*340mm)
Product Weight
N.W.: 11.4KG, G.W.:13.9Kg
Container Load
216pcs / 20'GP & 516pcs / 40'HQ
Work Time
sunny day periods, as long as sunlight is available
Ventilation Type
axial flow type (3 blades / Aluminum fan blades)

Patented Feature
our solar fan's inner structure includes a wind guide cone + wind guide blades design, which can strongly guarantee a high ventilation efficiency, and is one of our patents
Detailed Images

Fixed Solar Panel

solar panel is embedded fixed onto the fan cover, it's not angle adjustable and more suitable for low profile roof

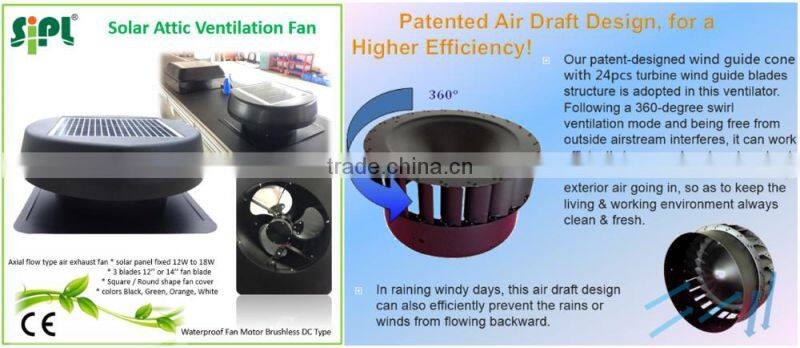

360-D Patented Ventilation Design

this is the wind guide cone + wind guide blades patented air ventilation structure that we've mentioned in the above

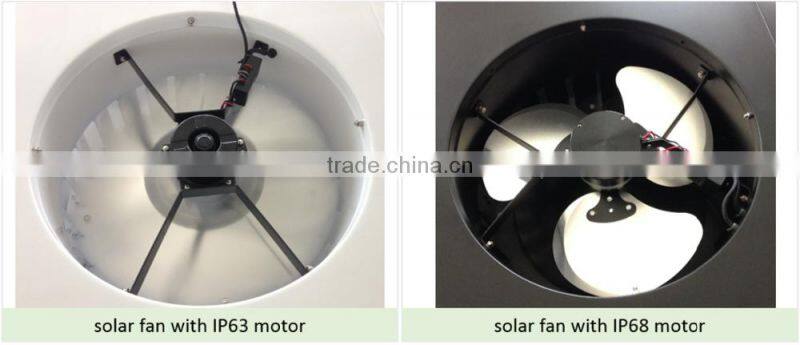

As marked in the above chart, we use IP63 and IP68 motors for the solar fan production.  No matter IP63 or IP68, both of them are brushless DC motors, and of high energy efficiency, and they're unique designed & made by us!

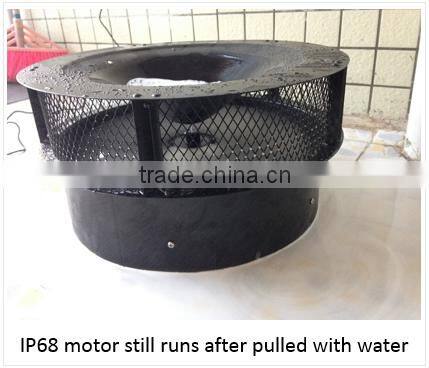

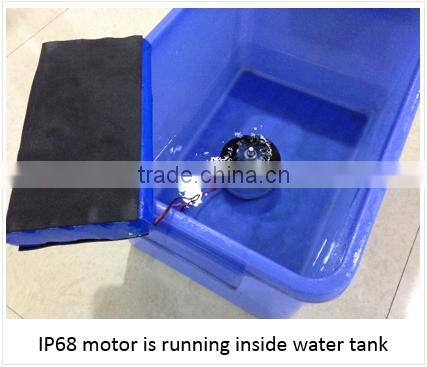

When we're proud to say our #86 motor is IP68 waterproof motor, we can convince you by having the motor run inside a water tank:
Functions & Mounting

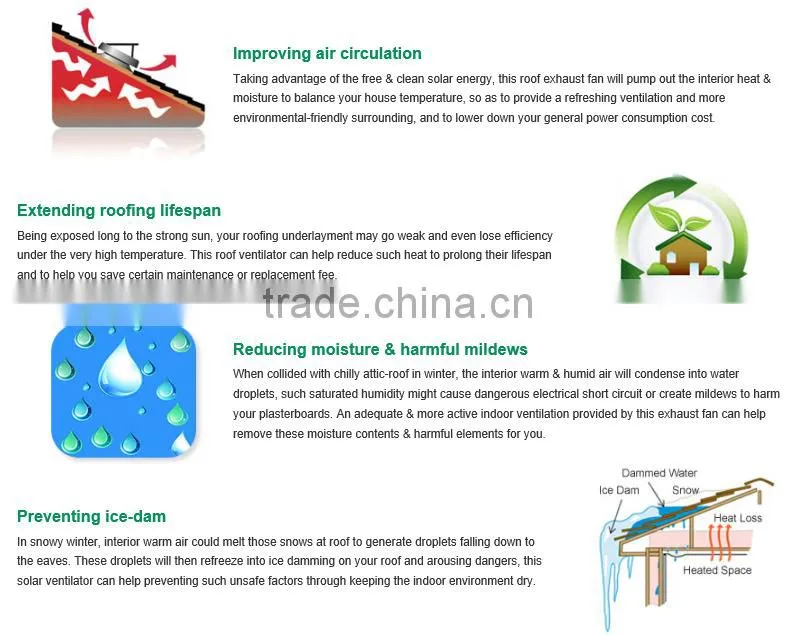

In Summer:
Strengthen air circulation / Extend roofing lifespan / Remove heat, moisture & dust / Reduce the heat load on air-conditioning ducting to help you save money…
In Winter:
Deduct harmful mildews / Prevent ice-dam…

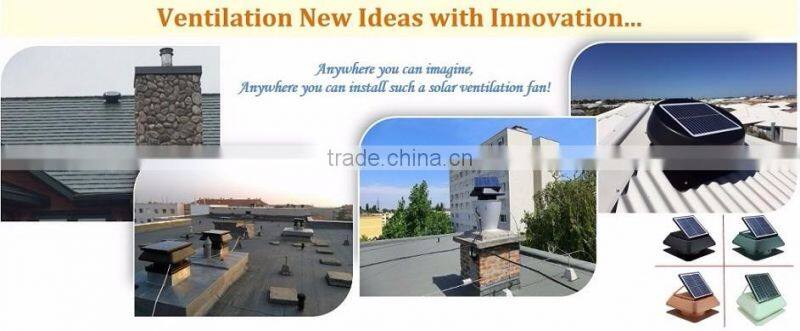

Wherever is needed Air Ventilation, Wherever is such a solar roof fan be suitable!

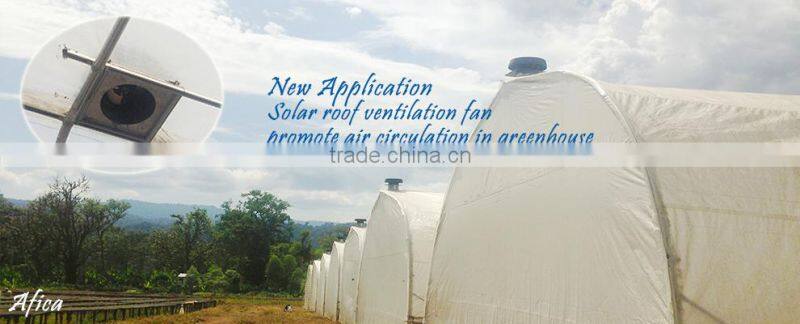

Such solar attic fans are primarily designed for residential use, but they're now getting more and more commonly used in many other fields, like industrial, commercial, agricultural, poultry farming, etc.

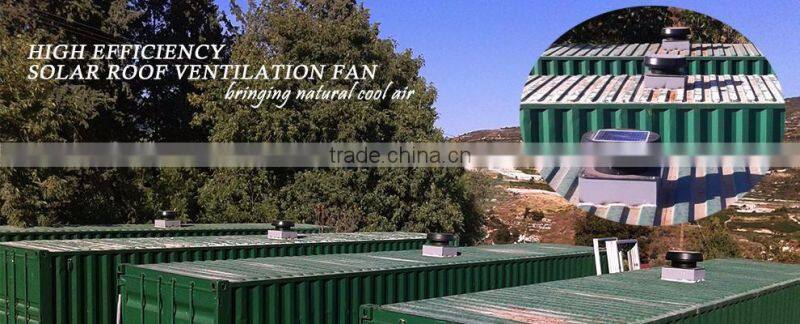

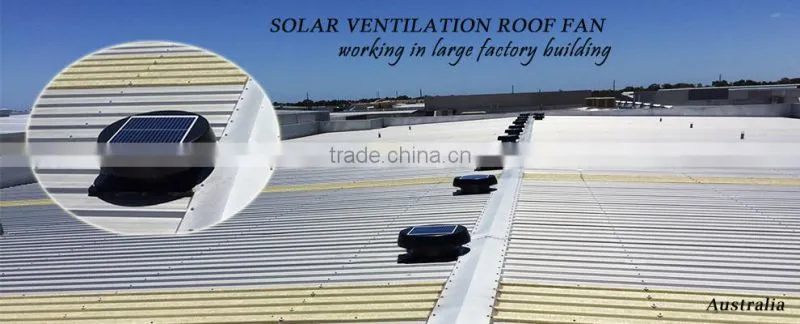

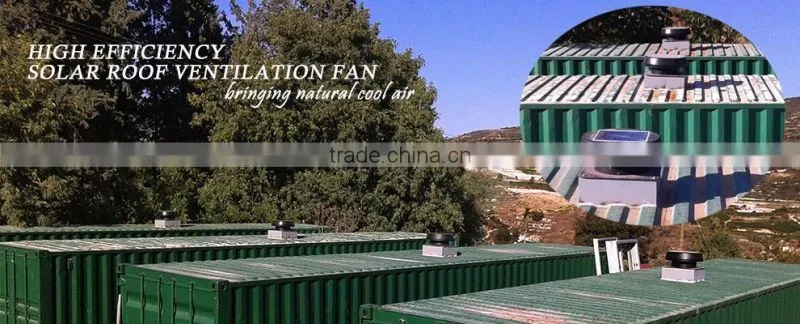

(the above real-site installation pictures, as well as the below pictures are all generously shared by our customers)

If you have any other idea about innovative application / installation with such solar roof vents, please don't hesitate to put it into practice!


Or if you need more installation information, please don't hesitate to contact us, thanks!

Optional Accessories

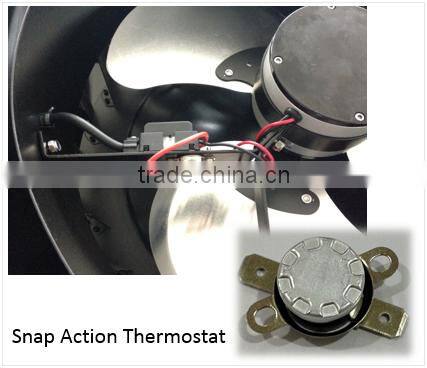

Thermostat / Power Cord Switch:

While it's good to enjoy the all free solar energy by having the solar fan runs nonstop, it's sometimes needed to stop then fan at certain purposes, so a Thermostat or a Cable Cord Switch, or both of them would be requested to add into product!

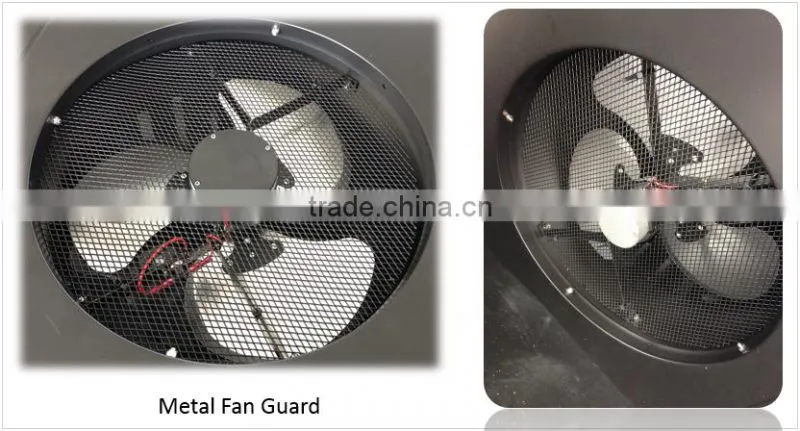

Fan Guard:

If the solar fan is to mount on a low attic,  adding a fan guard would be very good to to protect fan blades.  This could also help to block those small animals / flying objects from entering into the house.

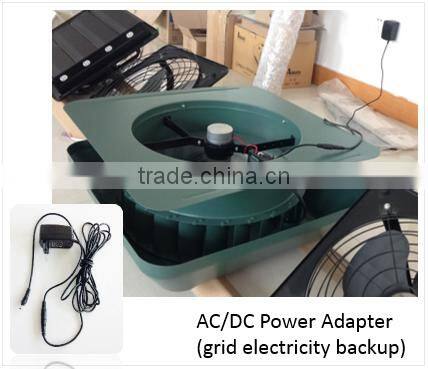

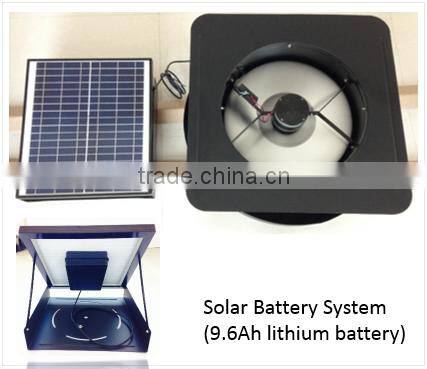

Solar Battery System / AC/DC Power Adapter:

Solar energy is available to support solar fan runs only during day time, but it's becoming more and more necessary that the fan has to run also at night.  So, our unique solar battery system or AC/DC power adapter kit would be what you also request for.


Package & Load

The whole piece solar fan are fully wrapped by strong foam protectors, which well guarantees its package quality:


Our standard package method is 1pc solar fan / 1 brown carton, say we deliver the goods in individual boxes.  If pallet package is requested, we would welcome it by charging some extra fees!

The container loading quantities for our solar fans are:

216 cartons / 20'GP & 516 cartons / 40'HQ

FAQ

1. Are we a manufacturing factory or just a trading company?

100% real manufacturer!  We set up all production molds and control every step of production.  The product designs, including technical supports, are even all carried out by ourselves.

Of course, we have our own sales team to provide all professional direct-sale services!

2. Where are we?

We're located in the beautiful Jiangmen city of Guangdong province, which is near Zhongshan / Zhuhai / Guangzhou / Shenzhen / HongKong, etc.

Our factory address: Shagang Industrial Zone of Sanjiang Town, Xinhui District, Jiangmen City, Guangdong, China.

You're always warmly welcomed to pay us a visit for face to face business discussions!

3. What is our MOQ for an order?

To start a new business, we understand the trial order is normally small, so we welcome sample orders at any quantity that you would suggest, but basing on Ex-Work price term.

However, if your order meets 216pcs / 1x20'GP quantity, our price term will be FOB Jiangmen.

4. What is the nearby seaport around us?

Jiangmen port is the nearest one to us, so we normally arrange shipment sailing from Jiangmen, transits at HongKong, to your destination port!

5. How is our warranty?

The warranty for whole piece unit is 5 years from purchased date.  But it's much longer for solar panel & for fan host:

fan motor
designed lifespan >8 years, warranty 5 years
solar panel
designed lifespan >25 years, warranty 15 years
fan host
designed lifespan >20 years, warranty 15 years
battery / power adapter
designed lifespan >5 years, warranty 2 years

(the above warranty terms are basing on the products be used in normal residential environments, no corrosive substance surrounded)


If you would like to know more about our services, please also feel free to contact us, thanks!
More Selections

Besides this 12W 12'' solar attic fan, we make many other selections and categories, where you can view more from our HomePage!


We look forward to your kindly contact for more detailed discussions, thank you!
