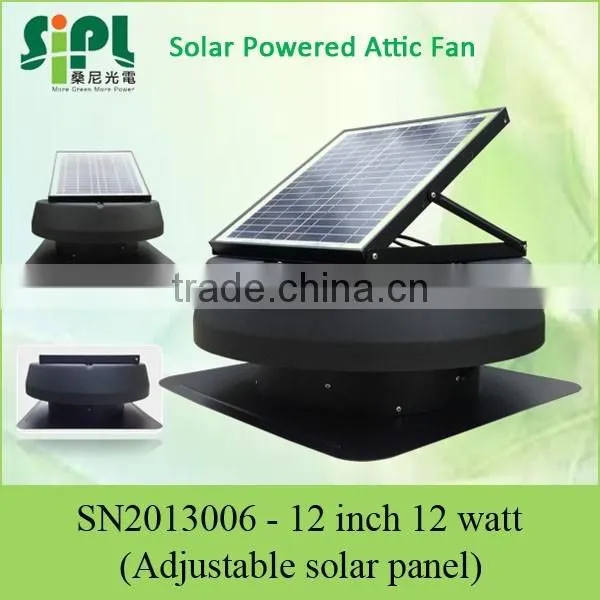

12 Watt Solar Panel Powered 12 Inch Attic Air Extractor Ventilation Fan in Round Shape

12 Watt Solar Panel Powered 12 Inch Attic Air Extractor Ventilation Fan in Round Shape photo-1
US$ 113 - 128 MOQ: 50 Sets
Key Specifications
Get Latest Price
Power Source:
Solar
Type:
Ventilation Fan
Installation:
Other, Roof
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Power Source Solar
Type Ventilation Fan
Installation Other, Roof
Material Metal
Certification CE
Power (W) 12
Voltage (V) 17.4
Brand Name SIPL
Model Number SN2013006
Place of Origin Guangdong, China

2016 Hottest! 12 watt Solar Panel Powered 12 inch Round Shape Attic Air Exhaust Ventilation Fan



Why we need to buy the solar roof exhaust fans for our house? The Functions:



Extend the material life of your attic and roof. Without proper air-flow, the temperature in your attic can get up to 160 degrees Fahrenheit. This intense heat can cause damage to the shingles on your roof, as well as the wooden trusses in your attic. By lowering the temperature of the attic, you reduce these harmful effects considerably.



Minimize the heat transferred into your living space. By installing a solar attic fan, you can lower the attic temperature by as much as 60 degrees Fahrenheit. As a result, the rooms beneath the attic will be considerably cooler as well.



Reduce moisture buildup in your attic. With passive venting, water vapor tends to build up in your attic from everyday activities like cooking or bathing. This excess moisture, if left unchecked, can give rise to rust, rot, or even mold. A solar attic fan increases the circulation of fresh air, which reduces the vapor buildup and keeps your attic dry. With an optional humidistat, the fan can keep your attic dry during winter months as well.



Save energy and money. The solar attic fan removes the excess heat from your attic. This means there is less heat to penetrate the rooms below. This keeps your air-conditioner from working overtime, which can result in savings of up to 30% on home cooling costs.







Moreover, solar energy is green, clean & free, it will be much better than the conventional roof exhaust fans.





 The more information of our series solar roof fans you would like to know



Shroud Cover Shape Round / Square
Solar Panel Power 12 W 15W 20W (Adjustable solar panel) or 12 W 15 W (Fixed Solar Panel)
Voltage All Models are 17.4V
Current P/U (12W 15W 20 W / 17.4V)
Air Duct(Fan Blade) 12 Inch / 14 Inch
Metal Case Material Galvanization Steel
Motor  Brush DC Motor / Brushless DC Motor
Product Size 530x530x220mm or 530x530x250mm (basing on solar panel is placed flat)
Color White / Black / Green / Orange
Service Life

Metal Casing:service life 20 Years, warranty 15 Years

Solar panel:service life 25 Years, warranty 15 Years

Battery:service life 5 Years, warranty 2 Years

Brush DC Motor:service life 20000 Hours, warranty 2 Years

Brushless DC Motor: service life 6-7 Years, warranty 5 Years



* The hereby 20 years lifespan of metal casing is basing on the product be used in regular residential housings, but not in those extreme condition places with acid and alkali corrosive gas / liquids.





Our solar roof fans are low voltage DC safe products, so they don't need the certifications when being imported/exported.  However, we still have applied CE certificate for them!





12 watt Solar Panel Powered 12 inch Attic Air extractor Ventilation Fan in Round Shape

 More Characteristic of Our Solar Roof Fans

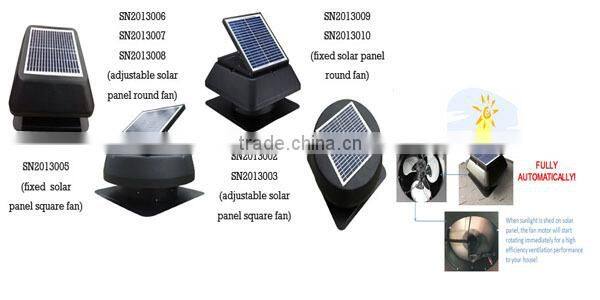

Solar Roof Fan Struture (the round one is as same as the square one, except the shroud cover)



Adjustable Solar Panel

12 watt Solar Panel Powered 12 inch Attic Air extractor Ventilation Fan in Round Shape







Fixed Solar Panel

12 watt Solar Panel Powered 12 inch Attic Air extractor Ventilation Fan in Round Shape







The Patent Design

12 watt Solar Panel Powered 12 inch Attic Air extractor Ventilation Fan in Round Shape







About the adjustable solar panel and left / right regulating plate

12 watt Solar Panel Powered 12 inch Attic Air extractor Ventilation Fan in Round Shape







 Four Colors

12 watt Solar Panel Powered 12 inch Attic Air extractor Ventilation Fan in Round Shape







When they be mounted, they would like this



12 watt Solar Panel Powered 12 inch Attic Air extractor Ventilation Fan in Round Shape



It is easy to mount, and we will attach the installation brochure when we ship the goods to you!







Our Customization Services

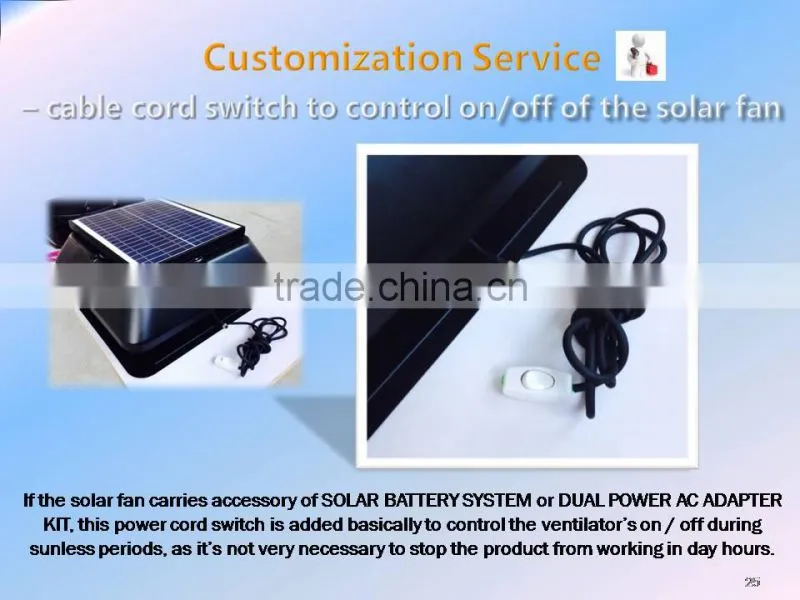

Adding Cable Cord Switch Control

12 watt Solar Panel Powered 12 inch Attic Air extractor Ventilation Fan in Round Shape







Adding Fan Guard and Temperature Controller



12 watt Solar Panel Powered 12 inch Attic Air extractor Ventilation Fan in Round Shape







 The AC adapter and Mains Switching Controller

12 watt Solar Panel Powered 12 inch Attic Air extractor Ventilation Fan in Round Shape







The Solar Battery System

12 watt Solar Panel Powered 12 inch Attic Air extractor Ventilation Fan in Round Shape







Some Real Making and Packing Pictures



12 watt Solar Panel Powered 12 inch Attic Air extractor Ventilation Fan in Round Shape





 When packed:



 12 watt Solar Panel Powered 12 inch Attic Air extractor Ventilation Fan in Round Shape





If you would like to know more of this new innovative solar roof exhast fan, please feel free to contact us, we would like to help you more.  Thank you!



12 watt Solar Panel Powered 12 inch Attic Air extractor Ventilation Fan in Round Shape
