The Energy Saving Lighting System advances can deliver up to 40% reductions in energy usage.
Smart control, including proactive maintenance, can slash annual operating costs significantly.
Wireless's solution for Smart Lighting enables utilities and maintenance companies to benefit from
an improved level of cost-effective, reliable and timely service, by controlling and managing light operations.
---------------

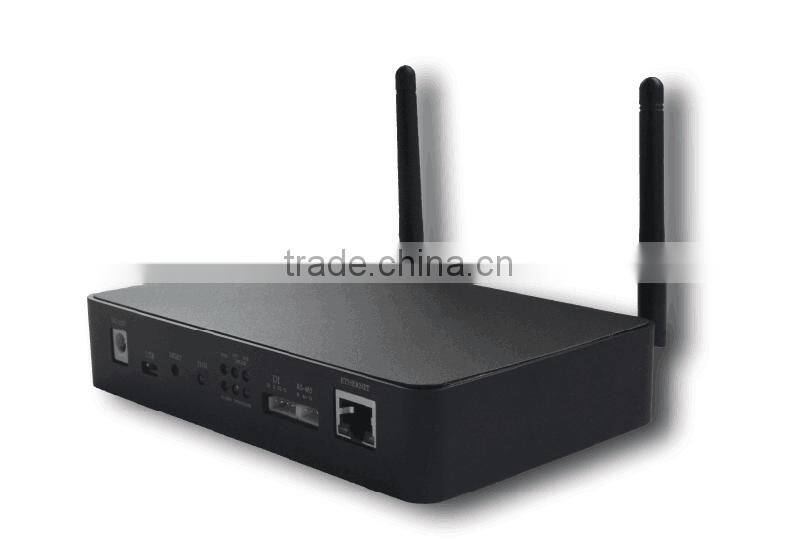

DCU Data Communicate Unit is a communiction briage between sever and terminal devices, partof the Energy Saving Lighting System products.
Features: Receive data from sever and send to terminal device
Collect data from terminal and send to sever
Remote config&firmware update
Parammeter |
|
Input power |
12Vdc |
Base protocol |
Fast ZigBee |
Zigbee Frequncy |
2.4GHz |
WiFi |
IEEE802.11 TCP/IP |
Ethernet |
10/100M |
Weight |
360g |
Size |
160x 100x30MM |
Terminal |
Comment |
DC-12V |
Power input with 12Vdc |
USB |
Connect to PC,for configration |
Reset |
Recover to factory setting |
FUN |
For network building and other reserved function |
Six indicator lights |
1.”PWR” when power on ,light keep on 2.”ALARM” when system error,light flash 3.Other light for comunication,when comunicating light will flash.”DEV” light means commucation between DCU and terminal device. ”SVR” light means commucation between DCU and sever. |
DI |
Two input signal ports(reserved now) |
RS-485 |
Connect Modbus device(reserved now) |
ETHERNET |
Connect to rounter,communication with sever(or choose WiFi to instead,config by”configration tool” |
