Easy Operation Automatic FFPD-series Horizontal Bran Finisher Wheat Flour Milling Machine

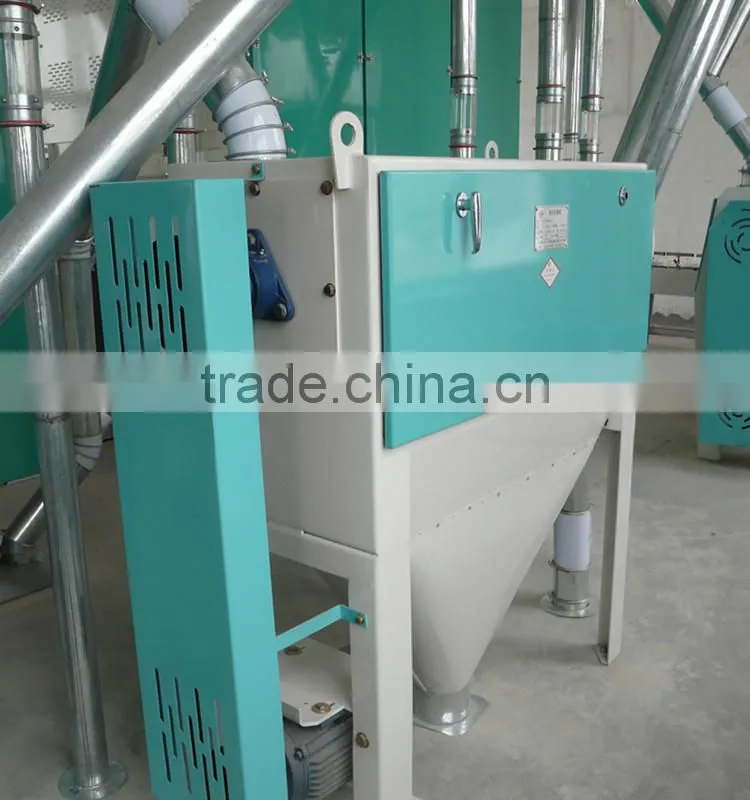

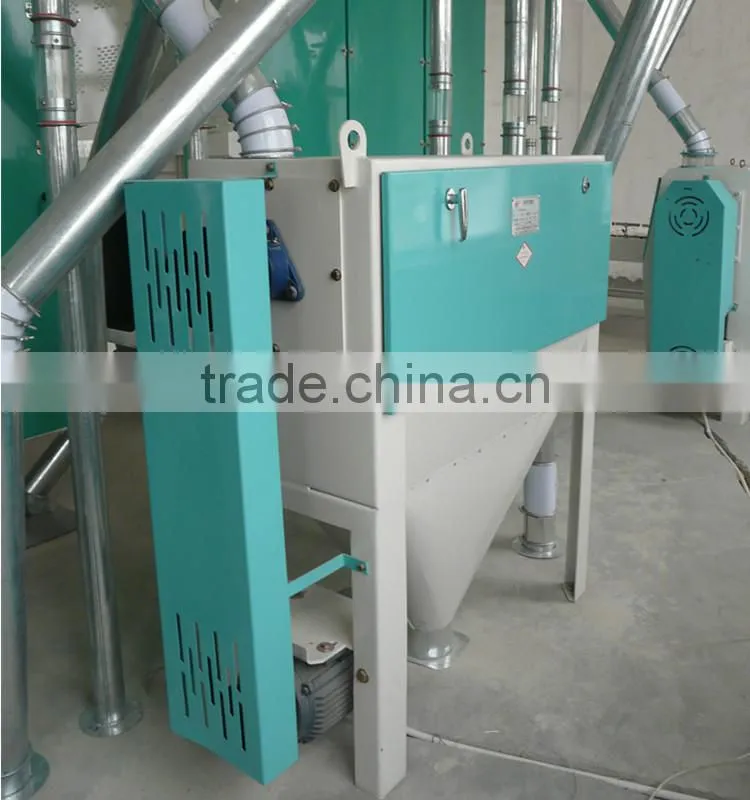

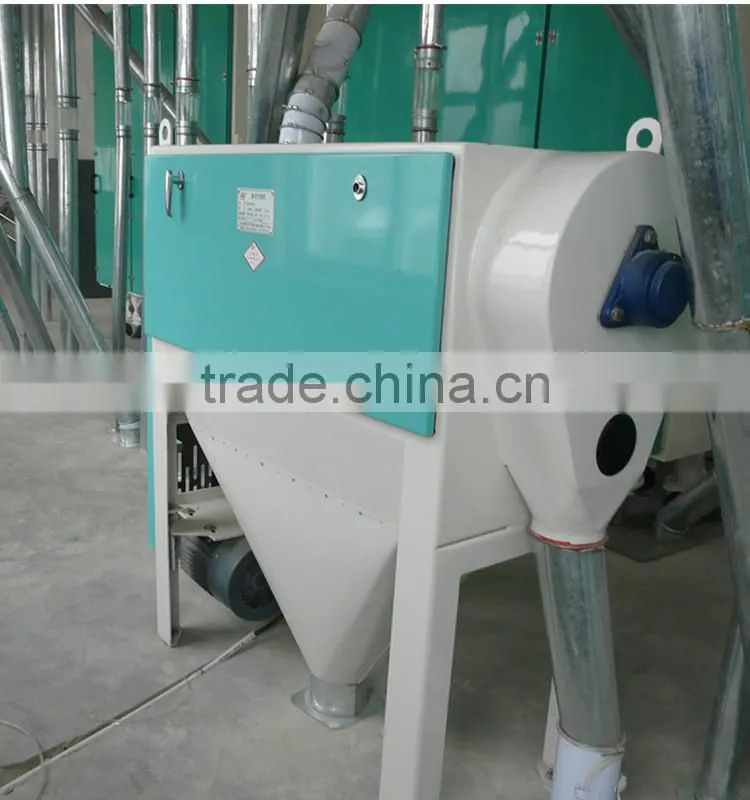

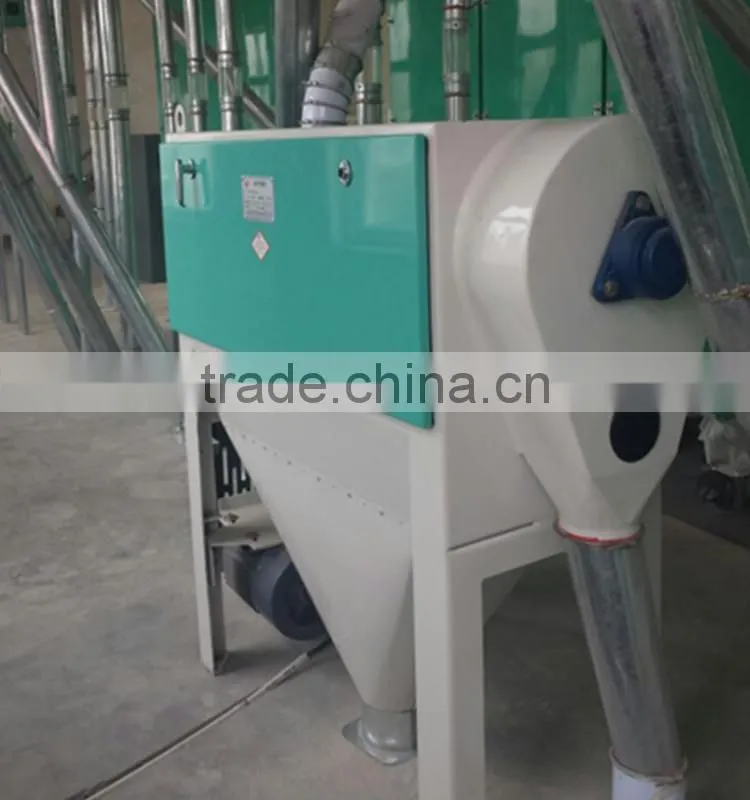

Easy Operation Automatic FFPD-series Horizontal Bran Finisher Wheat Flour Milling Machine photo-1

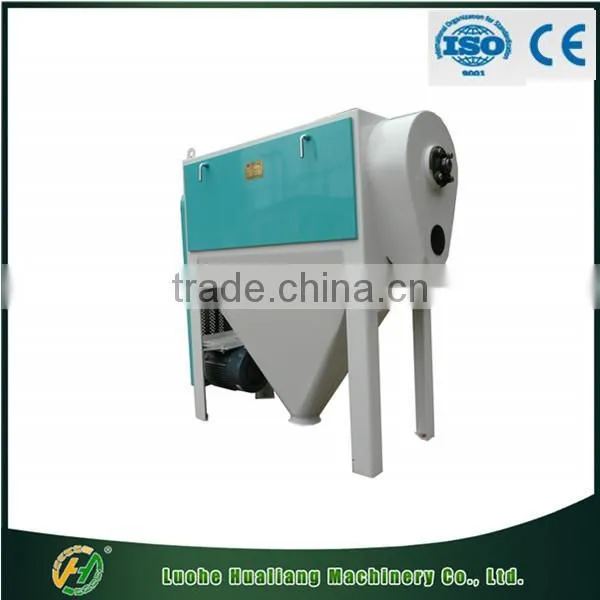

Easy Operation Automatic FFPD-series Horizontal Bran Finisher Wheat Flour Milling Machine photo-2

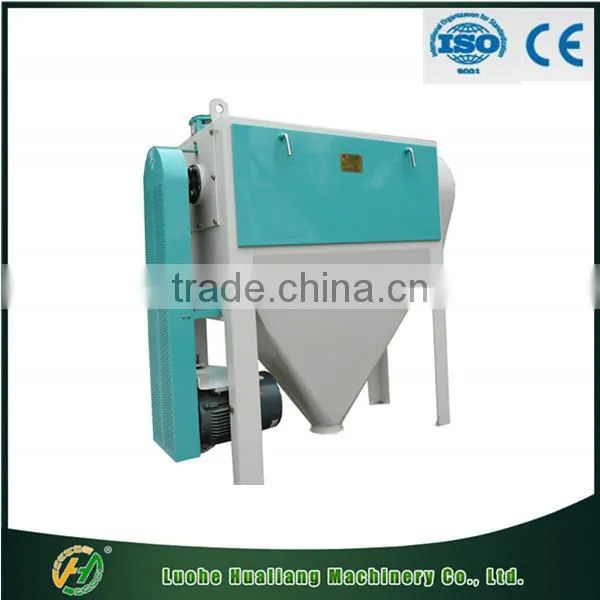

Easy Operation Automatic FFPD-series Horizontal Bran Finisher Wheat Flour Milling Machine photo-3

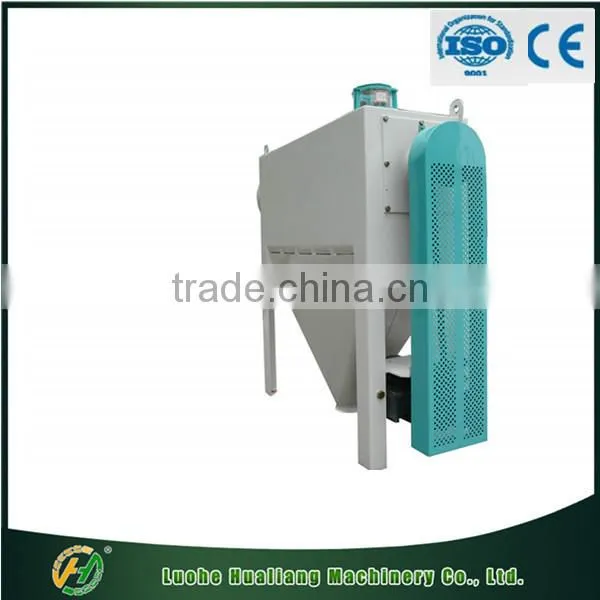

Easy Operation Automatic FFPD-series Horizontal Bran Finisher Wheat Flour Milling Machine photo-4

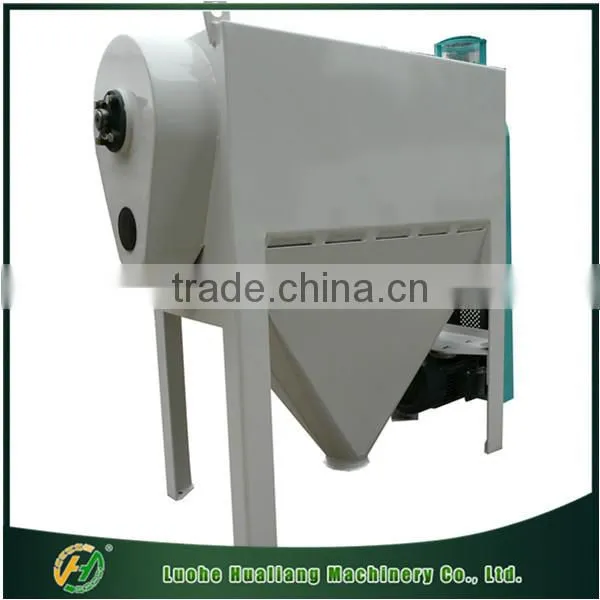

Easy Operation Automatic FFPD-series Horizontal Bran Finisher Wheat Flour Milling Machine photo-5

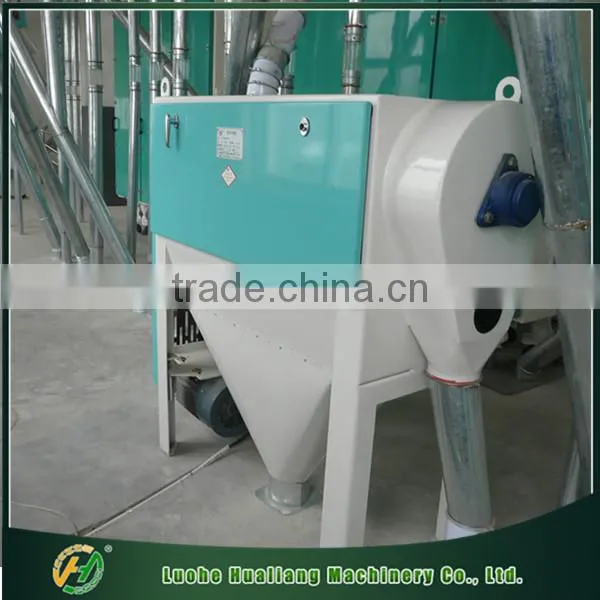

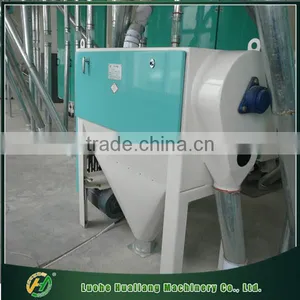

Easy Operation Automatic FFPD-series Horizontal Bran Finisher Wheat Flour Milling Machine photo-6
US$ 3,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
HUALIANG
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Guangzhou Tianjin Dalian Shenzhen Nanjing Alataw Pass Manchuria Erlian port etc.
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name HUALIANG
Model Number FFPD45*2
Production Capacity 3200KG/H
Voltage 380V
Power(W) 2*5.5KW
Weight 640
Dimension(L*W*H) 1685*1216*1620mm
Certification ISO9001
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Easy Operation Automatic FFPD-series Horizontal Bran Finisher Wheat Flour Milling Machine



   RANGE OF APPLICATION



   FFPD-series horizontal bran finisher wheat flour milling machine is used for separating powder from bran in flourmill, reducing the quantity of powder contained in bran and the load of grinding to improve the grinding efficiency and flour yield.



   MATERIALS OF WHEAT FLOUR MILLING MACHINE



a.The main shaft adopts imported Japan NSK bearings, equipped with special bearing block, with good seal and dustproof effect.

b. The motor adopts Siemens or Wannan motor (a leading motor manufacturer in China which is located in the south of Anhui Province).



c. The beater is welded of 65# manganese steel with excellent wear resistance  which has a long service life.

d. The screen mesh is welded of stainless steel, with smooth feeding and high wear resistance.



   TECHNICAL SPECIFICATION



Types

FFPD45×1

FFPD45×2

FFPD45×1a

FFPD45×2a

Screen diameter(mm)

450

450

450

450

Screen length(mm)

1100

1100

1090

1090

Sieve area(cm²)

0.721

2×0.721

0.7

2×0.7

Space between beater and sieve(mm)

10~16

10~16

9~19

9~19

Main shaft speed(r/min)

1050

1500

1050

1050

Power(kw)

5.5

2×5.5

5.5

2×5.5

Output(kg)

1600

3200

1500

3000

Air volume(m³/min)

7

14

7

14

Dimension of whole machine

(L×W×H)mm

1685×615×1620

1685×1216×1620

1685×625×1575

1685×1246×1575

Weight(kg)

320

640

320

640

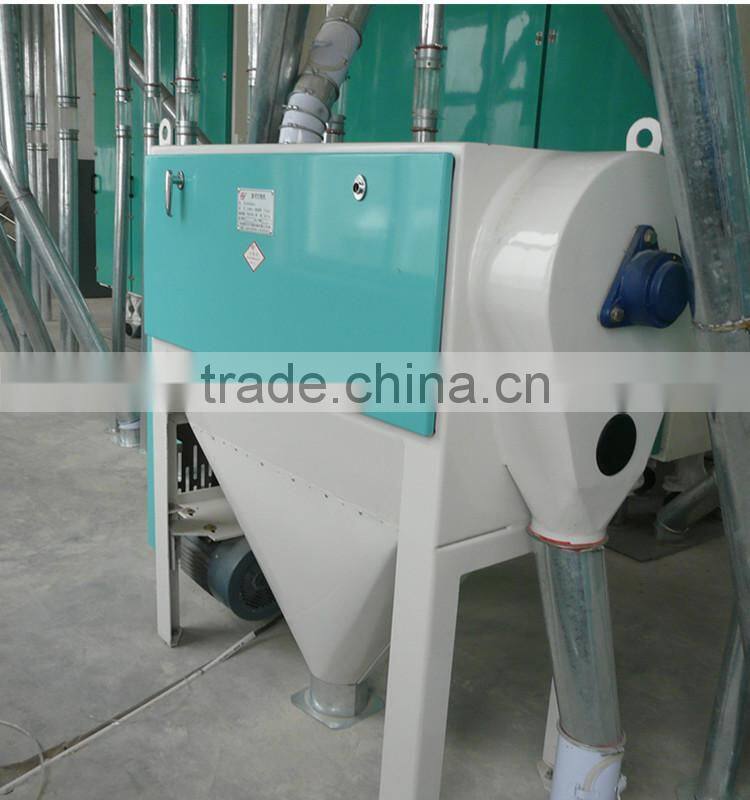

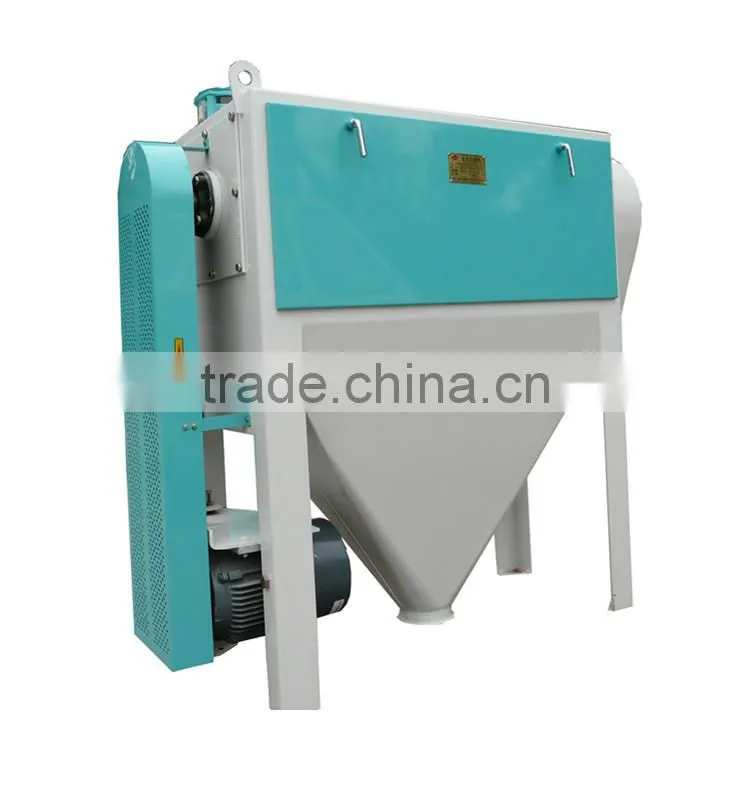

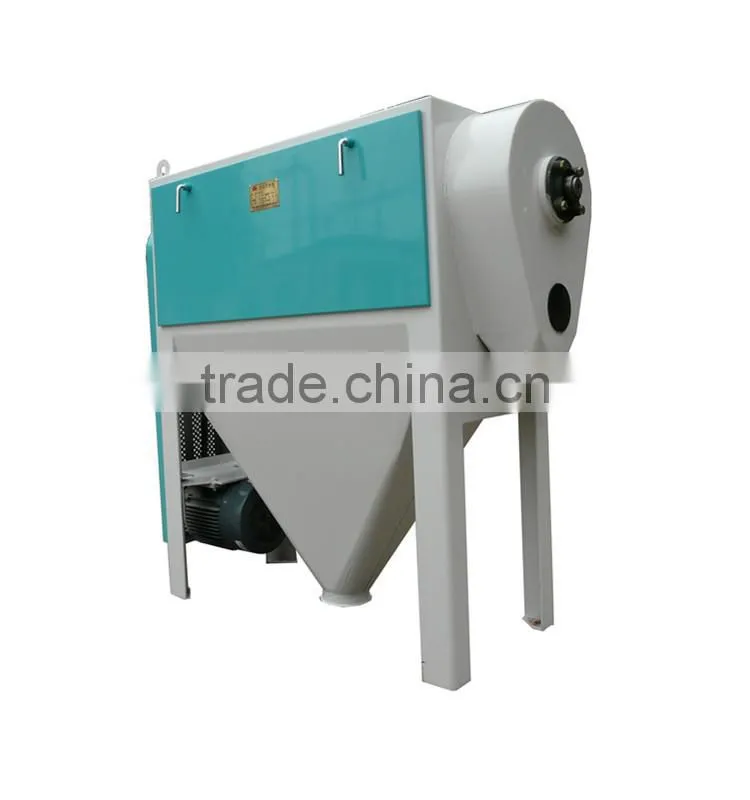

   PRODUCT PICTURES



Easy Operation Automatic FFPD-series Horizontal Bran Finisher Wheat Flour Milling MachineEasy Operation Automatic FFPD-series Horizontal Bran Finisher Wheat Flour Milling MachineEasy Operation Automatic FFPD-series Horizontal Bran Finisher Wheat Flour Milling Machine



   PRODUCT DETAILS

 Easy Operation Automatic FFPD-series Horizontal Bran Finisher Wheat Flour Milling Machine



   COMPANY INTRODUCTION



    Luohe Hualiang Machinery is a professional manufacturer for cleaning equipment, dedusting equipment, powder cleaning device, washing equipment, lifting and conveying device and so on several series, with 14 years collect history. We have 10 production lines, 20 technicians, professional sales and after-sales teams and produce nearly hundred kinds of equipments.

   OTHER PRODUCTS



   PACKAGING

 Easy Operation Automatic FFPD-series Horizontal Bran Finisher Wheat Flour Milling Machine



   SUCCESSFUL CASES

Easy Operation Automatic FFPD-series Horizontal Bran Finisher Wheat Flour Milling MachineEasy Operation Automatic FFPD-series Horizontal Bran Finisher Wheat Flour Milling MachineEasy Operation Automatic FFPD-series Horizontal Bran Finisher Wheat Flour Milling MachineEasy Operation Automatic FFPD-series Horizontal Bran Finisher Wheat Flour Milling Machine

   OUR SERVICES



    We provide a turnkey project of flour machinery, including special design, installation, commissioning and training workers.

    All of our new equipment to contain one year free spare parts, and quality guarantee period of one year.

    At the same time our company will carry on the lifelong service to our products.



   FAQ



Q1: How do i choose the machine model?

A: You should based on your washing products type and its output. Meanwhile we have professional pre-sales service personnal to help you find the most suitable product model.



Q2: If the machine fails to work, what should i do?

A: Don't worry. All of our new equipment to contain one year free spare parts and quality guarantee period of one year. At the same time, we will carry on the lifelong service.



Q3: Our staffs can't operate the machine, what can i do?

A: Our technicians will carry on training cuatomers' staffs until they can skillfully operate the machine. At the same time, will teach them some methods to solve the common faults of machines and daily repair and maintenance methods.
