Good performance wide usage corn flour spiral conveyor for grain
RANGE OF APPLICATION
TLSS series screw conveyor is fixed level or a little inclined conveying machinery, with small occupation area, good sealing performance, simple structure, stable work, low noise, high output. Can be installed on the ground or hanging on the roof of the building, multiple inlet and outlet, blades drawn by manganese steel, blades of powder adopts cold plate machinery rolling, hanging tile with PTFE bearing shell, with the advantages of good performance, high density, high strength, excellent wear resistance, etc.
TECHNICAL SPECIFICATION
|
Types |
Screw Diameter |
Screw Pitch |
Rotating Speed |
Screw Thickness |
Conveying Capacity(t/h) |
|
|
(mm) |
(mm) |
(rpm) |
(mm) |
Wheat |
Flour |
TLSS160 |
160 |
160 |
80 ~ 130 |
3 |
3 ~ 4 |
1.5 ~ 2 |
TLSS200 |
200 |
200 |
80 ~ 130 |
5 |
6 ~ 10 |
2.5 ~ 4 |
TLSS250 |
250 |
250 |
80 ~ 120 |
5 |
12 ~ 16 |
5 ~ 8 |
TLSS320 |
320 |
320 |
80 ~ 110 |
6 |
25 ~ 35 |
10 ~ 15 |
TLSS400 |
400 |
320 |
80 ~ 100 |
8 |
45 ~ 55 |
20 ~ 25 |
TLSS500 |
500 |
350 |
70 ~ 90 |
10 |
55 ~ 65 |
30 ~ 35 |
Remarks:According to the different materials used for conveying, the materials of machine make the contract object as the standard. | ||||||

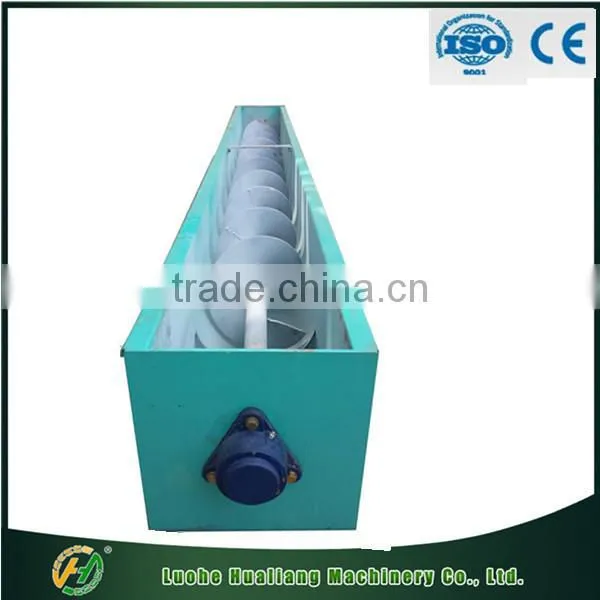

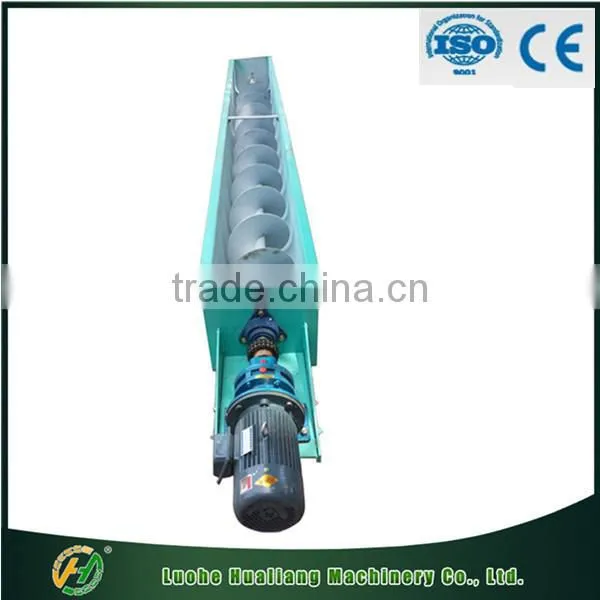

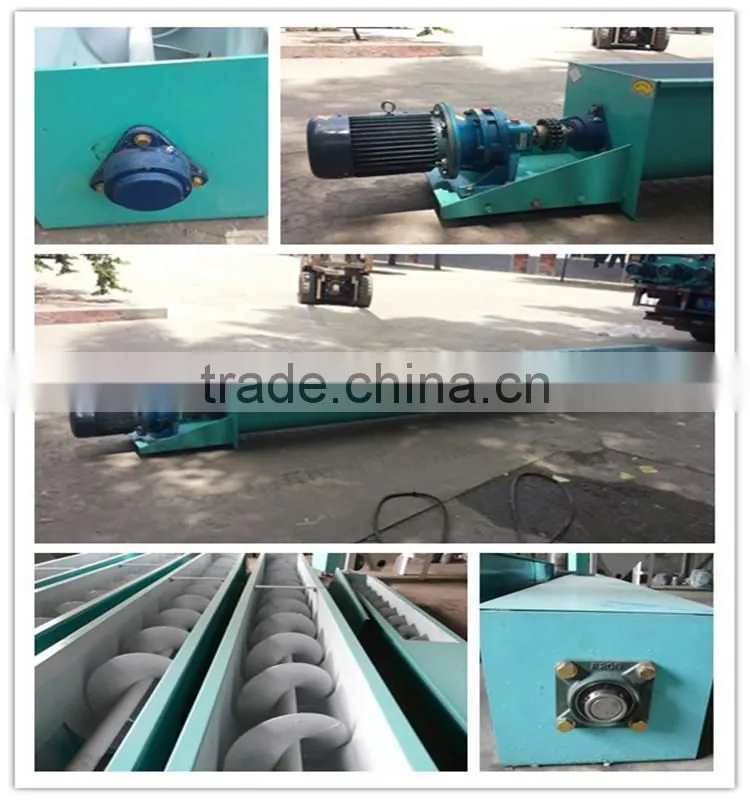

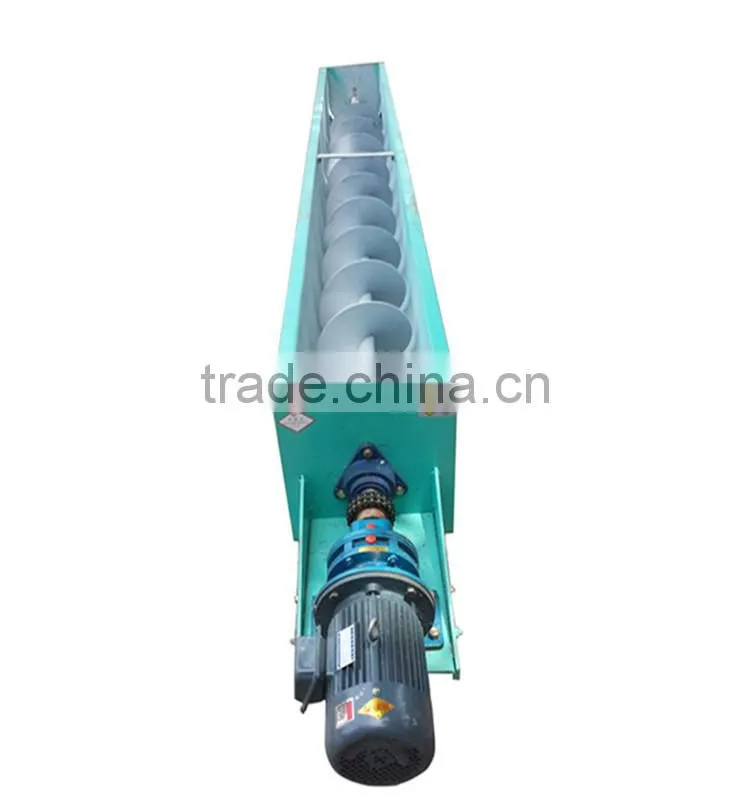

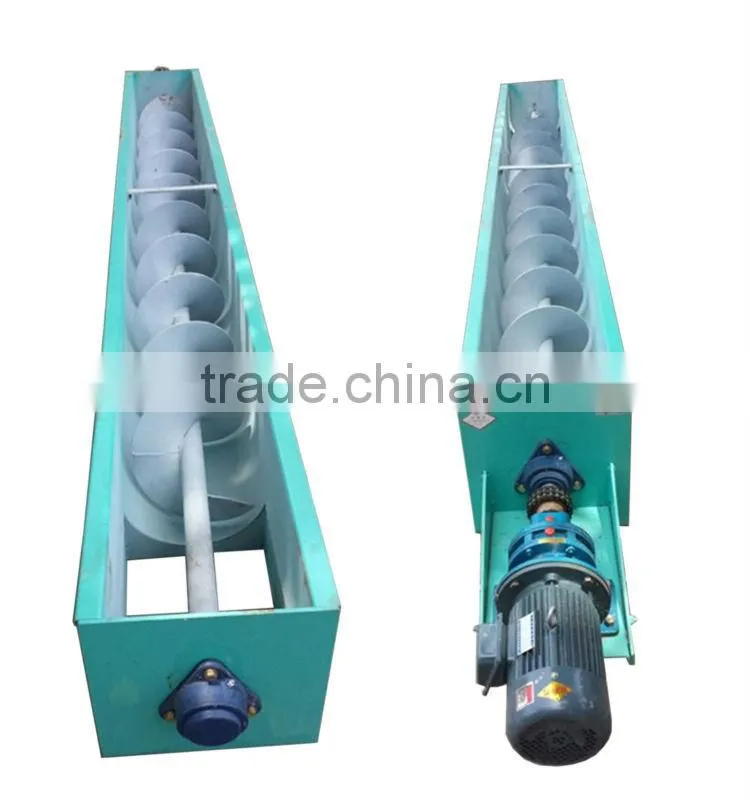

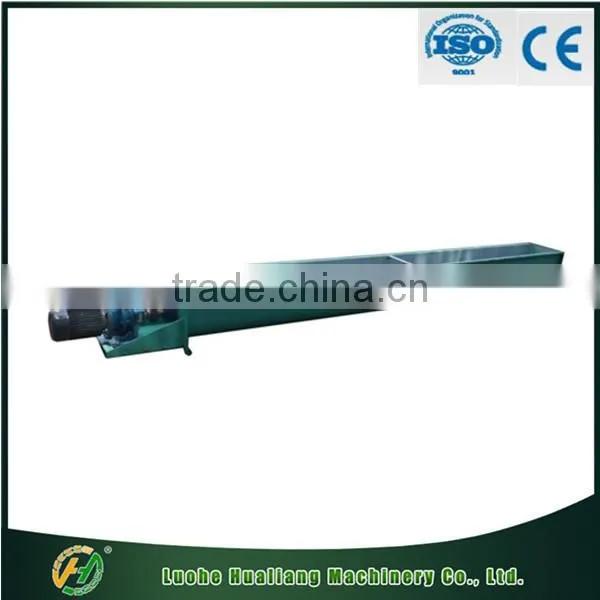

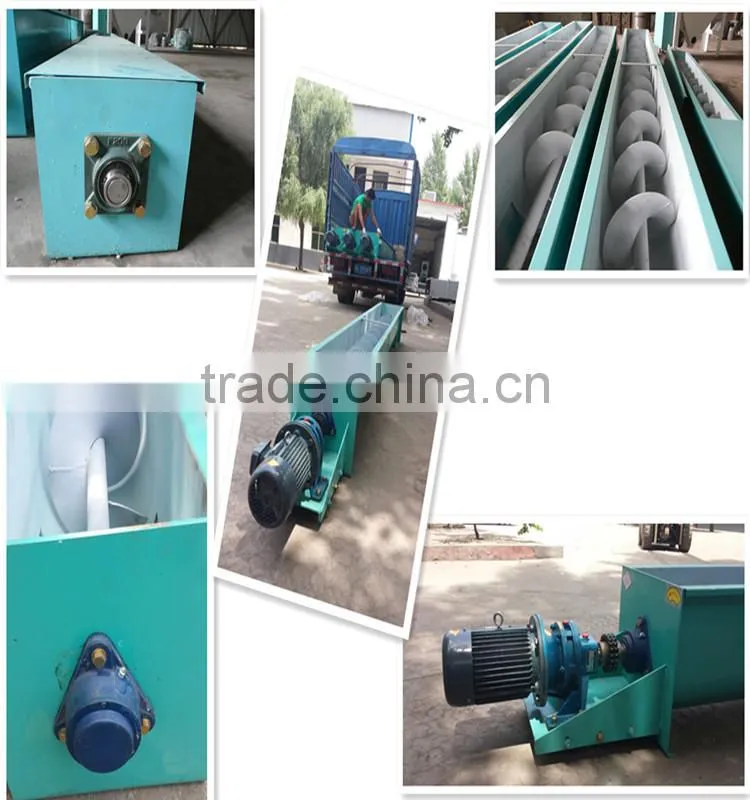

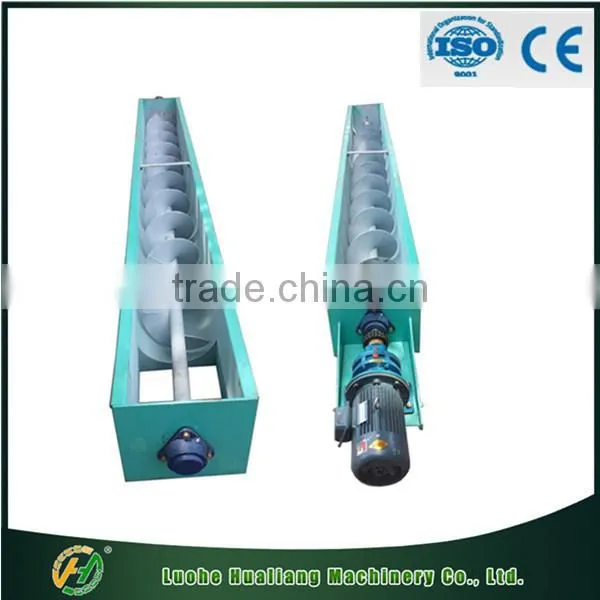

PRODUCT PICTURES
PRODUCT DETAILS
We provide a turnkey project of flour machinery, including special design, installation, commissioning and training workers.
All of our new equipment to contain one year free spare parts, and quality guarantee period of one year.
At the same time our company will carry on the lifelong service to our products.
Luohe hualiang machinery is a professional manufacturer for cleaning equipment, dedusting equipment, powder cleaning device, washing equipment, lifting and conveying device and so on several series, with 14 years collect history. We have 10 production lines, 20 technicians , professional sales and after-sales teams and produce nearly hundred kinds of equipments. Our equipments are mainly used in flourmill, starch factory, rice plant, rice flour plant, grains processing factory, Chinese traditional medicine processing plant, chemical factory, seed selection and other industries, while contacting 30-500 tons complete sets of flour machinery installation, design engineering.
Q1: How do i choose the machine model?
A: You should based on your washing products type and its output. Meanwhile we have professional pre-sales service personnal to help you find the most suitable product model.
Q2: If the machine fails to work, what should i do?
A: Don't worry. All of our new equipment to contain one year free spare parts and quality guarantee period of one year. At the same time, we will carry on the lifelong service.
Q3: Our staffs can't operate the machine, what can i do?
A: Our technicians will carry on training cuatomers' staffs until they can skillfully operate the machine. At the same time, will teach them some methods to solve the common faults of machines and daily repair and maintenance methods.
