Application
The vibration table is widely used in metallurgy, abrasive, food, chemical industry, building material,
coal, electricity and so on, used for cast steel, cast iron, bronze, cast aluminum, different structure of various types of castings.
Vibrating table is non-standard series. it can be designed according to your requirement.It can change
the granular and power materials from bulk to lump, sharp in the productive process.You can choose
the different type of the vibrating table according to the production characters and requirements.
The vibrating table features
1.In the working process, By adjusting the vibrating force, the material can realize a ideal type;
2.The vibrating motor is vibrating source. Low noise and consumption, and be easy to maintain;
3.Simple structure. Light weight, small volume, reliable working, and be easy to install;
4.Vibration model: up to down, screw vibration and dimensional vibration;
5.Large power and platform, Max power can arrive to 7.5kw. Max loading: 8 T;
6.Height can be adjustable. So it is suitable for product line.

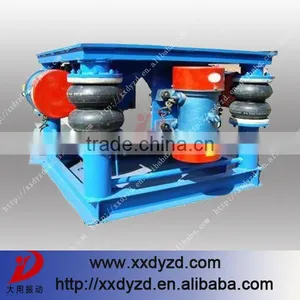

Picture show
Technical parameters:
Model |
Aera(square meter) |
powder(kw) |
Amplitude(mm) |
Weight(kg) |
ZDP-500×500 |
0.25 |
2×0.25 |
2-5 |
300 |
ZDP-1000×1000 |
1 |
2×0.4 |
2-5 |
600 |
ZDP-1200×1200 |
1.44 |
2×3 |
2-5 |
1200 |
ZDP-1500×1500 |
2.25 |
2×3 |
2-5 |
2000 |
ZDP-3000×3000 |
9 |
6×1.5 |
2-5 |
3000 |
The maintaince:
1.when it starts or stops. If there is a large amplitude fluctuation in several seconds. It is usual.
2.When the machine leave factory, the excitation force is the rated 50%. If you need increase or
decrease the excitation force, you can adjust it according to your requirement.
3. after the vibrating table are used, at the first week, a check for screw is necessary everyday.
After the first week, the check could be changed one time every week. If the screw loose. Just
fasten it again.
Xinxiang Dayong Vibration Equipment Co. , Ltd. is an experienced professional manufacturer.
Engaged in R&D and manufacture vibrating screen, conveyor, crusher etc. equipment for 11 years.
All products have passed ISO9001:2008 international quality certification and CE quality certification.
We have 65 experienced R & D personnel, can offer different products to meet your needs.
