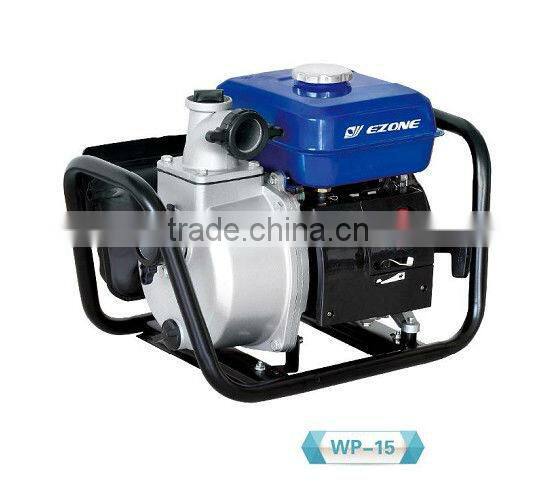

OHV 4-Stroke gasoline water pump WP15

FOB Price

USD $50 - $180 / Set

100 Sets(Min.Order)

Supply Ability 2000 Set / Sets per Month
Port Ningbo/Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	EZONE	Model Number:	WP-15
Theory:	Centrifugal Pump	Structure:	Single-stage Pump	Usage:	Other, Water, For Irrigation
Power:	Electric	Standard or Nonstandard:	Standard	Fuel:	Other, Gasoline, Gasoline/ petrol
Pressure:	Low Pressure	Application:	Submersible

Product Description

Specifications

GASOLINE WATER PUMP
MECHANICAL SEALED
VIBRATION-PROOF DESIGN
POWER BY LAUNTOP ENGINE

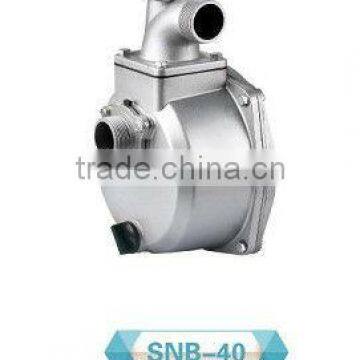

PRESSURE CASTING ALUMINIUM PUMP BODY

*High efficiency and low noise
*Powered by air-cooled 4-stroke engine
* Aluminum alloy high pressure easing
* High quality and mechanical sealed equipment
* Compact structure, light weight,easy operation
* Easy maintenance.

MODEL		WP-10	WP-15
PUMP	Suction/Discharge Port Dia.	25(mm)	40(mm)
	Max. Lift	22m	28m
	Max-Suction Head	7(m)	7(m)
	Max-Head	22 (m)	28 (m)
	Max. Flow	7(m³/h)	20(m³/h)
ENGINE	Model	1E40F-5	154F
	Max. Output	1.5HP	2.5HP
	Displacement	43 cm³	87cm³
	Rated Rotational Speed	6500rpm/3600rpm
Dim.& N.W.	N.W.	9KG	20KG
Dim.& N.W.	Packing Size	370x300x320mm	440x370x350mm
