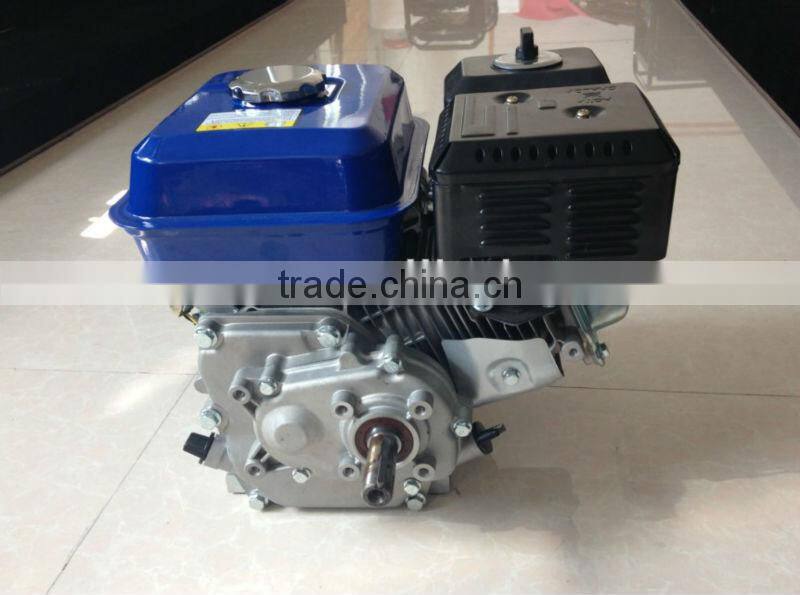

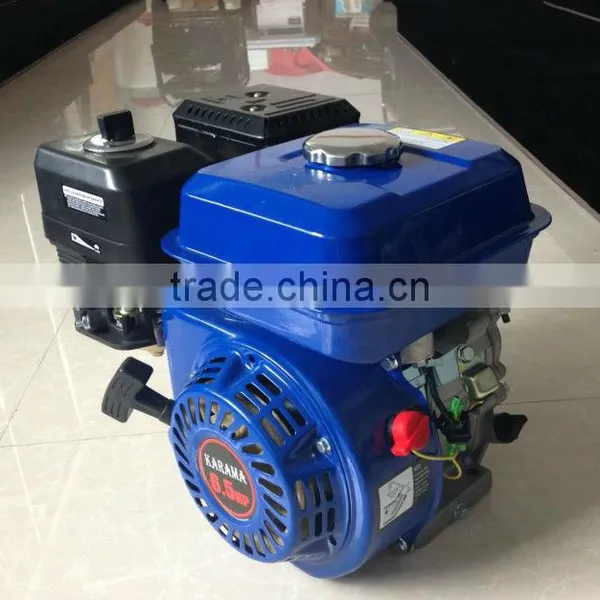

Gasoline Engine 168F Series, 4-stroke, OHV
- 5000 Set / Sets per Month
- Ningbo / Shanghai
- T/T
You May Like
Product Details
| Condition | New | Usage | Other, Power | |
| Fuel | Gasoline | Stroke | 4 Stroke | |
| Cylinder | Single Cylinder | Cold Style | Other, Air-cooled | |
| Start | Kick Start | Place of Origin | Zhejiang, China | |
| Brand Name | EZONE | Model Number | EZ-168F | |
| Weight | 13-17kg | Certification | CE, ISO9001 | |
| Warranty | 1 Year |
Product Description
Product Description:
1. Easy for mounting on any power device. such as application for mowers,water pumps,generators etc.
2.Each engine features easy starter, low noise and small vibration.
3.Overhead valve(OHV) design,lower operation temperature, powerful drive and reliability and durability, and it saves more oil.
4.Applying an auto-dpression unit and recoil starter for a quick and easy starting.
Model | EZ-168F | EZ-168F-1 | EZ-168FB |
EZ-168FB- 1
| EZ-168FC | EZ-168FC-1 | ||||||
Max output | 5.5HP | 6.5HP | 5.5HP | 6.5HP | 5.5HP | 6.5HP | ||||||
Type | Forced air cooling, 4-stroke, OHV, Single cylinder, inclined by 25 degree | |||||||||||
Rated Power(kw / rpm) | 3.6 / 3600 | 4.1 / 3600 | 3.6 / 3600 | 4.1 / 3600 | 3.6/3600 | 4.1 / 3600 | ||||||
Max.Torque(N.m / rpm) | 9.9 / 2500 | 12.4 / 2500 | 19.8 / 1250 | 25 / 1250 | 20 / 1250 | 25 / 1250 | ||||||
Fuel tank capacity | 3.6L | |||||||||||
Fuel Consumption | ≤395 / kw.h | |||||||||||
Oil Capacity | 0.6L | |||||||||||
Oil Consumption | ≤6.8 / kw.h | |||||||||||
Min.Stable Speed Unload | 3600rpm | 3600rpm | 1800rpm | 1800rpm | 1800rpm | 1800rpm | ||||||
Reduction Ratio | 1:1 | 1:1 | 2:1 | 2:1 | 2:1 | 2:1 | ||||||
Bore * Stroke | 68*45mm | 68*54mm | 68*45mm | 68*54mm | 68*45mm | 68*54mm | ||||||
Displacement | 163cc | 186cc | 163cc | 196cc | 163cc | 196cc | ||||||
Compression Ratio | 8.5:1 | |||||||||||
Starting System | Recoil Start / Electrical Start | |||||||||||
Ignition System | Transisterized Magnto Ignition | |||||||||||
Packaging & Delivery
| Packaging Details: | Normal/ color packing |
|---|---|
| Delivery Detail: | 15 days after getting the 30% deposit |
