Home > Industrial Equipment & Components > Engine & Part > Engine > Gasoline Engine 188F Series, 4-stroke, OHV
US$ 45 - 52
MOQ: 300 Pieces
Key Specifications
Get Latest Price
Condition:
New
Fuel:
Gasoline
Stroke:
4 Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo / Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EZONE Hotsale Gasoline Engine of GX160US$ 40 - 180MOQ: 100 Pieces -
EZ-168F-1 ENGINE 6.5HP , OHV With Fored Air Cooled Single Cylinder Best SellerUS$ 40 - 110MOQ: 100 Sets
-
Gasoline Engine 6.5HP GX200US$ 40 - 110MOQ: 300 Sets
-
Gasoline Engine 5.5HP GX160US$ 40 - 110MOQ: 300 Sets
-
Gasoline Engine Half SpeedUS$ 40 - 110MOQ: 300 Sets
Condition
New
Fuel
Gasoline
Stroke
4 Stroke
Cylinder
Single Cylinder
Cold Style
Other, Air-cooled
Start
Kick Start
Place of Origin
Zhejiang, China
Brand Name
EZONE
Model Number
EZ-188F

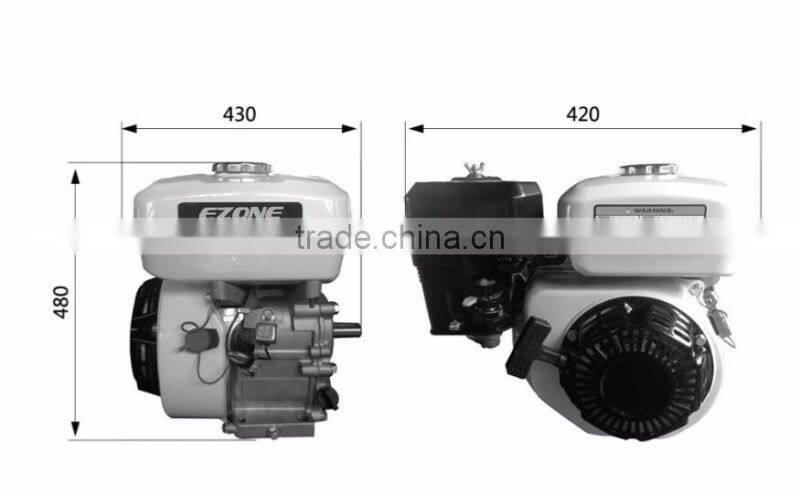

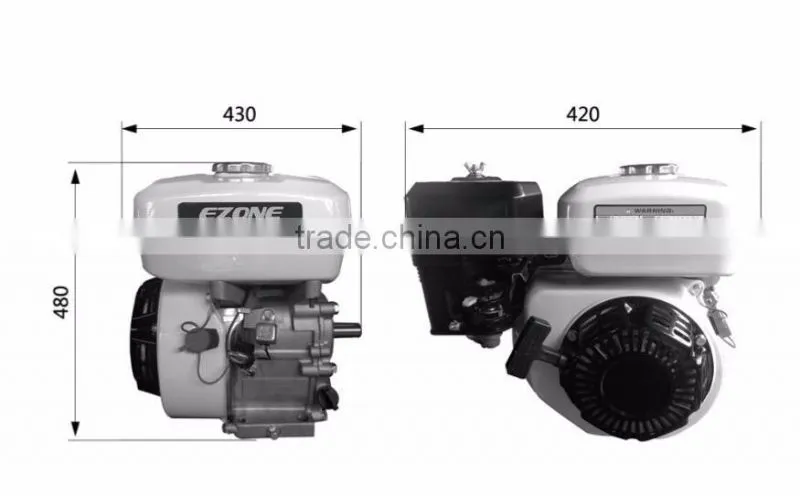

Dimension(L*W*H)
475*440*520MM
Weight
33kg
Certification
CE, ISO9001:2008
Warranty
One Year
After-sales Service Provided
No overseas service provided
Product Description:
1.Easy for mounting on any power device, such as applications for mowers,water pumps, generators etc.
2.Each engine features easy starter, lower noise and small vibration.
3.Overhead valve(OHV) design, lower operation and temperature. Powerful drive and reliability and durability, and it saves more oil.
4.Applying an auto-depression unit and recoil starter for a quick and easy starting.
5.Metal cam and forged crankshaft makes engine more reliable and durable.
| Model | EZ-170F | EZ-177F | EZ-188F | EZ-190F | EZ-192F |
| Max output | 7HP | 9HP | 13HP | 15HP | 17HP |
| Type | Forced air cooling,4-stroke,OHV, single cylinder,inclined by 25 degree | ||||
| Rated Power | 5kw / 3600rpm | 6kw / 3600rpm | 8.2kw / 3600rpm | 9kw/3600rpm | 11.2kw / 3600rpm |
| Max. Torque | 13N.m / 2500rpm | 17.5N.m / 2600 | 25N.m / 2800rpm | 26.5N.m / 2800rpm | 26.5N.m / 2800rpm |
| Fuel tank capacity | 3.6L | 6L | 6.5L | 6.5L | 6.5L |
| Fuel consumption | ≤395g/kwh | ≤374g/kwh | ≤374g/kwh | ≤374g/kwh | ≤374g/kwh |
| oil capacity | 0.6L | 1.1L | 1.1L | 1.1L | 1.1L |
| Oil consumption | 6.8g / kwh | ||||
| Min.Stable Speed Unload | 3600rpm | ||||
| Reduction Ratio | 1:1 | ||||
| Bore*Stroke | 77*55 | 77*58 | 88*64 | 90*66 | 92*66 |
| compression Ratio | 8.5:1 | 8.2:1 | 8.0:1 | 8.3:1 | 8.3:1 |
| Starting system | Recoil Start / Electrical Start | ||||
| Ignition System | Transisterized Magnto Ignition | ||||
| Weight | 14.5kgs | 27kgs | 33kgs | 33kgs | 33kgs |
| packing information | 385*330*340mm | 475*440*520mm | |||
| 40HQ loading(pcs) | 1470 | 600 | 600 | 600 | 600 |
Packaging & Delivery
| PackagingDetails: | Normal or color packing |
| Delivery Detail: | 15 days |
