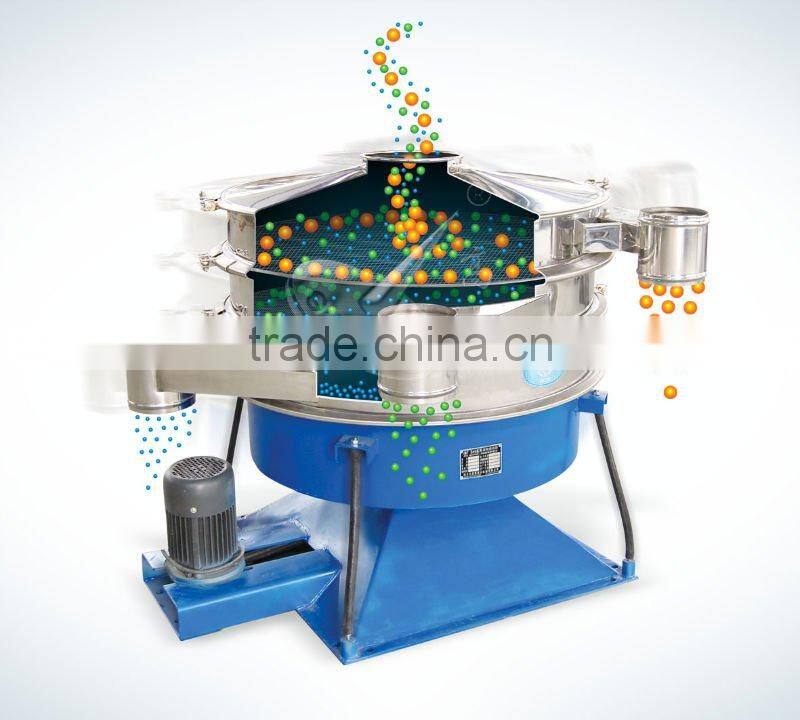

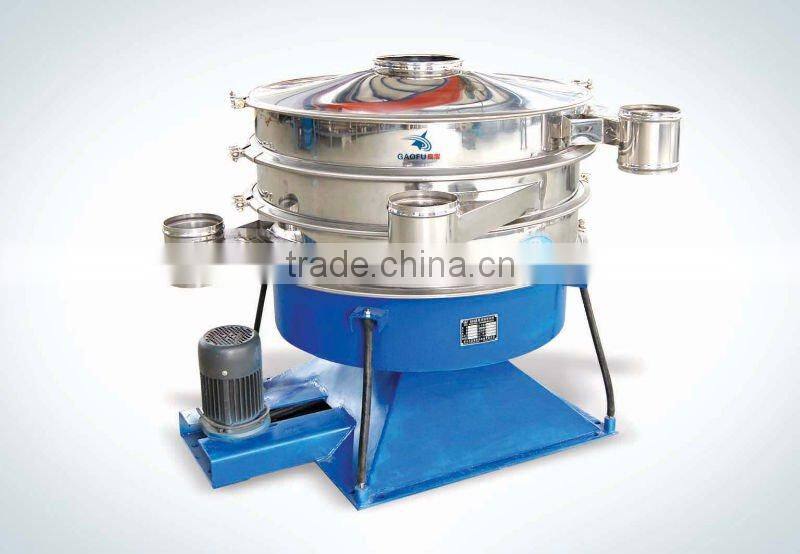

GFBD Series metallurgy gyrotary separator is used for the treatment of valuable powders, pellets and granules. For applications in pharmacy, food and fine chemicals produces tumbler and vibration screening machine according to GMP.
Technical and process related benefits
- Screening efficiency up to 99%
- No particle destruction in sensitive products
- High screening quality results in higher revenues for graded products
- Higher specific screen load as compared to vibration systems
- Stable screen motion even under full load
- Tumbling movement indefinitely adjustable, resulting in precise control of residence time on
the screen, capacity and screening efficiency can be coordinated and optimized
- Screen motion is recordable, therefore the optimal operating data are reproducible at any
time and result in constant product quality
- Product specific mesh cleaning systems
- Quick access to the screen inserts
- Modular design permits various machine modifications
- Dust tight, gas tight as option
- Low-noise, easy to maintain
Options:
- Internal/external screen frame - Silicone sealing, mesh glue and flexible
Ultrasonic mesh cleaning device connection.
- Various mesh cleaning systems - Surface quality from glass bead blasted
- Dust and gas tight to electropolished.
- Quick-action clamps - Mild and stainless steel modification
|
Model |
Diameter (mm) |
Screen area (m2)
|
Screen Inclination |
Power (KW) |
GFBD-600 |
600 |
0.21 |
1-5 |
0.25 |
GFBD-1000 |
1000 |
0.66 |
1-5 |
1.5 |
GFBD-1200 |
1200 |
0.98 |
1-5 |
2.2 |
GFBD-1600 |
1600 |
1.81 |
1-5 |
4 |
GFBD-2000 |
2000 |
2.80 |
1-5 |
4 |
GFBD-2400 |
2400 |
4.15 |
1-5 |
5.5 |
GFBD-2600 |
2600 |
5.31 |
1-5 |
5.5 |
GFBD-3200 |
3200 |
7.50 |
1-5 |
11 |
