Sand Vibrating Sieve Machine for Calcite Powder

 Vibrating Screen

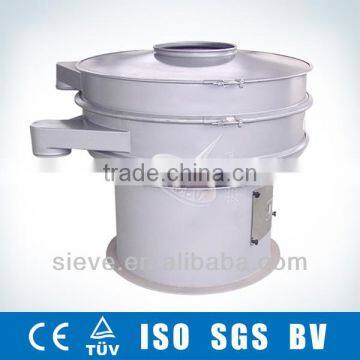

S49-A series three- d rotary vibrating sieve is designed for accurate grading or sizing of wet and dry materials up to five fractions in one operation. It benefits from major advances in sieving technology providing large improvements in sieving accuracy, capacity, noise levels and upgradeability compared with traditional spring suspension separators.

See the different options available

Industries served by the vibrating sieve include:

Food - Food ingredients, juice , confectionery, chocolate, etc.

Chemicals - Chemical powders or liquids

Metals - Metal powders, alloys, etc.

Pharmaceuticals - Pharmacy powders, active powders, etc.

Ceramics - Ceramic powders, kaolin clay, etc.

Environment - Treating wastewater for clean disposal, etc.

Enjoy the many benefits this separator can offer you

High capacity - Real improvements are achieved over conventional round separators in terms of increased capacity

Greater accuracy - Full material flow on all 5 sieve decks gives accurate grading on all meshes

Ease of operation and lower maintenance - The design of the vibrator housing allows for a standard motor being used rather than a vibratory type, keeping maintenance costs to a minimum, low noise, high efficiency, need only 3-5 minutes to rapidly replace the screen.

[Principle of the structure]

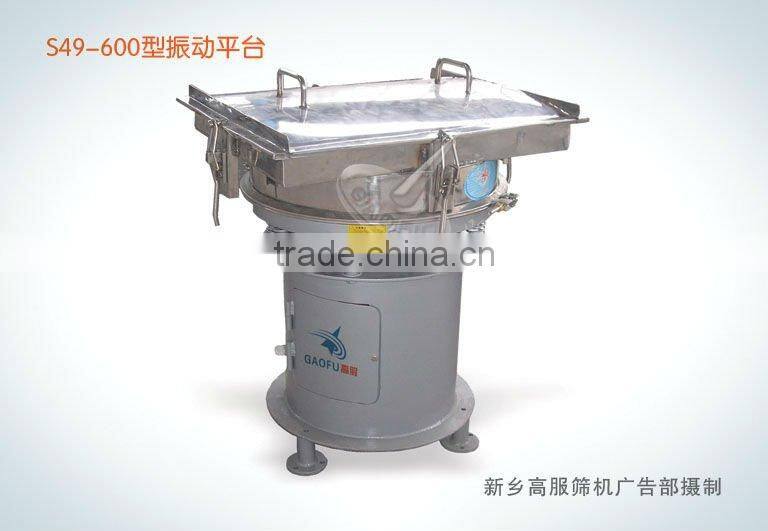

     S49-A series rotary vibrating screen use upright motor as the source of vibration, These consist of specially designed motor which is mounted vertically at the center of the base plate of the screen.Equipped eccentricity hammer on the both sides of motor,change circumrotate to level, upright and incline movement, then pass these three movement to the surface of the screen. Adjust the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface screen.

[Features]

    a. Any powders and mucilage are suitable for screening;

    b. Easily to replace the screen, only 3-5 mins to replace the screen;

    c. Never jam the hole meshwork, no powder flying;

    d. Discharge the impurity and coarse materials automobile and operates continuously;

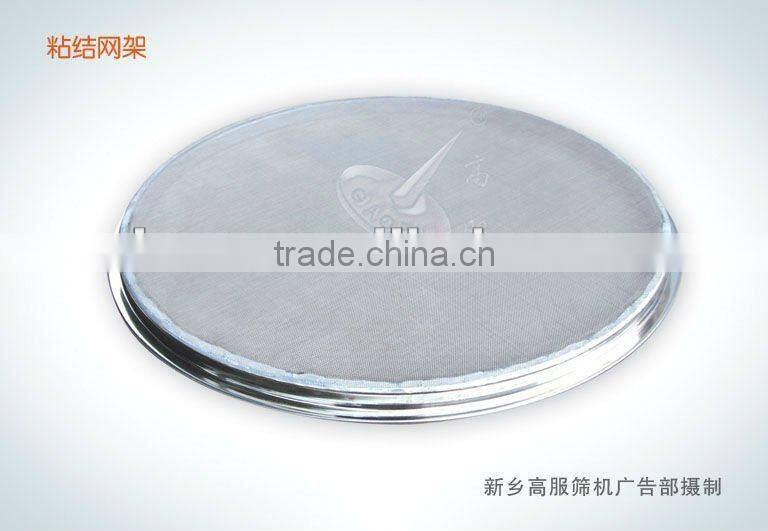

    e. Unique- designed screen flame type, simple operation and convenience washing, long duration of screen;

    f. Low noise;

    g. High screening accuracy.

[Using for different materials]

   Our vibrating screens can handle wide range of materials in food dustry,such as dry or wet & coarse or fine. Check which material you want to be screened.

   Food industry -  Coffee, Tea, Cocoa, Chocolates, Edible Oils, Milk,Starch, yeast and food additives etc. etc;

More Vibrating Screens Technical parameters

Note:

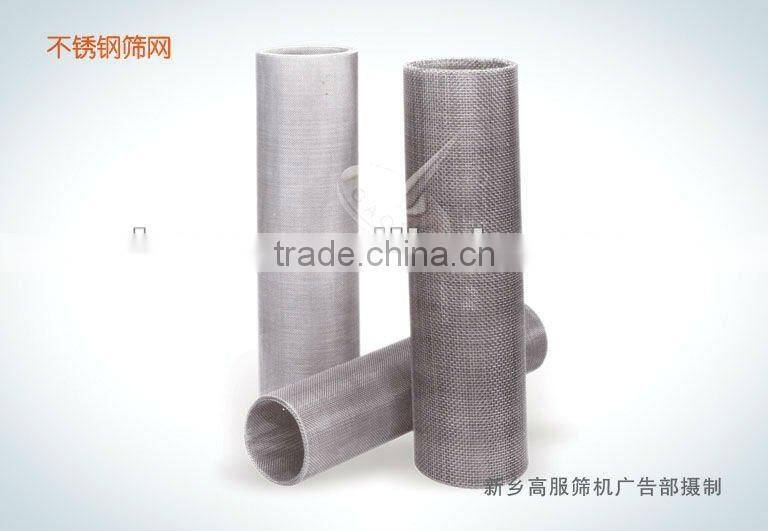

1. Each type can be 1-5 layers (But 3 lagers are suggested), and the mesh is from 5 to 500 meshes;

2. Material: Q235A / SUS 304 / 316L;

3. Voltage: 220 / 380V /415V / 440V, Frequency: 50 / 60 HZ;

4. If the specification or appearance has changed, we will not notify additionally.
