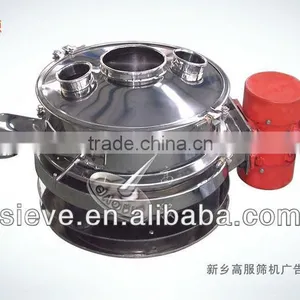

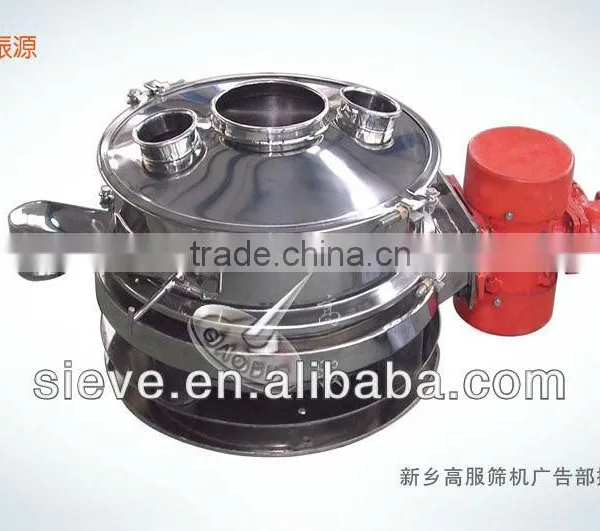

Shaking screen for flour
- 100 Set / Sets per Month
- Tianjing/Qingdao/Shanghai
Product Details
Place of Origin: | Henan, China | Brand Name: | Gaofu | Model Number: | SZS-600 |
Type: | Other, Grain Processing Equipment, Grain Processing Equipment |
Packaging Details
Wooden cases standard exporting package .
Product Description
Flour rotary vibratory inpurity machine
If you are still concerns in your products for the filtration problems, please click on me, and I will you recommended a filter sieve for you, to help you solve your problem of filtering;
Let us know more about China flour vibrating screen as follows:
Using scope
Rotary screen is also mainly used to sieve particles or powder precisely/roughly in the industry of bread flour,starch,laundry powder,metal powder,chemical additive,non-ore,etc.
Working principal
1.Turning on the vibration motor,centrifugal effect produced by the Eccentric block generate spin-based quantiative movement in the horizontal direction,so materials will be vibrated and screened.
2. Adjust exciting force to change discharge capacity according to production demand.
Features
1. Simple structure,easy to operate, large processing capacity, long service life, high productivity, low power consumption, easy installation.
2. Processing materials quickly, even materials will not be piled up, rapid screening of materials, obvious effect.
3. Can be directly installed between the raw materials barrel and the storage drums, easy to install, also save space.
4. IP54 protection rank, F level insulation, though work 24 hours a day can greatly extend the vibration motor’s using life; motor still can run in the bad environment.
Description
DZ series vibration sieveis a new-type screening machine, using a single horizontal vibration motor, discharges the materials directly, having a greater handling capacity. It is used in screening granules and powders of flour, starch, detergent, metal powder, additive, chemicals, non-mining industries etc. roughly, precisely. All products contact parts are made of stainless steel, elegant design and durable, small dimension, save space and easy to move.
Automation, the 24 hours of continuous production.
Design of ultra-low-mute, Seal stringent, liquid does not leak; the powder will never be soared. It is easy to clean up the internal and external, non-health corner, meeting with food-grade GMP standards.
Function of vibrating sieve machine:
1. Classification
Each of our products can screen and separate precisely and continuously, the Multi-layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.
2. Filtrating
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.
3. Remove the impurities
Our equipment can quickly separate a few oversize or undersize particles from a quantity of materials.
Daily maintenance:
1. before running
(1) To check coarse mesh and fine mesh if there is damage
(2) Each group clamps is locking.
2. Running
(1) Notice any abnormal noises
(2) Electric current is stable
(3) Whether the vibration is abnormal.
3. after running
(1) After used clean up the vibration every time
(2) To inspect regularly the coarse mesh, fine mesh and the spring if there are fatigue and damage
(3) Whether each part of the vibrating body caused damage due to vibration.
(4) Need to add the site to be the lubricating oil
Technical parameters
Model | Power (kw) | Motor speed (r/min) | Sieve diameter (mm) | Dimension(mm) | Wight(kg) |
DZ-600 | 0.18 | 1450 | 580 | 1000*600*550 | 200 |
DZ-800 | 0.25 | 1450 | 780 | 1100*800*600 | 250 |
DZ-1000 | 0.55 | 1450 | 960 | 1280*1000*700 | 330 |
DZ-1200 | 0.75 | 1450 | 1160 | 1550*1200*750 | 400 |
DZ-1500 | 1.5 | 1450 | 1460 | 1850*1500*900 | 750 |
Note:
1. Material: SUS 304 / Q235A / 316 L.
2. Voltage: 380V /400V.
3. Voltage: 380V /400V, Frequency:50 / 60 HZ.
4. If the specification or appearance has changed, we will not notify additionally.
Company Profile
Xinxiang Gaofu Sieving Machinery Co., Ltd. specializes in manufacturing vibration screens and vibrating sieves. To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.
Thanks to production equipment, strong technical capabilities, improved detection means and strict managing system, we have enjoyed good reputation.
our company has attained ISO9001:2000 certification and CE Certification. Our products sell well throughout China and are exported to North America, West Europe, Southeast Asia and other countries and regions.
Do you want to improve your product quality? Do you want your products to become more competitive? Choosing Xinxiang Gaofu Sieving Machine Co., Ltd.! We will be your friend in the way to success! And you will create a shiny future in 2014!
Please visit our website: www.gaoful.com.
Our tenet: "Honest Service, the Highest Quality".To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.
