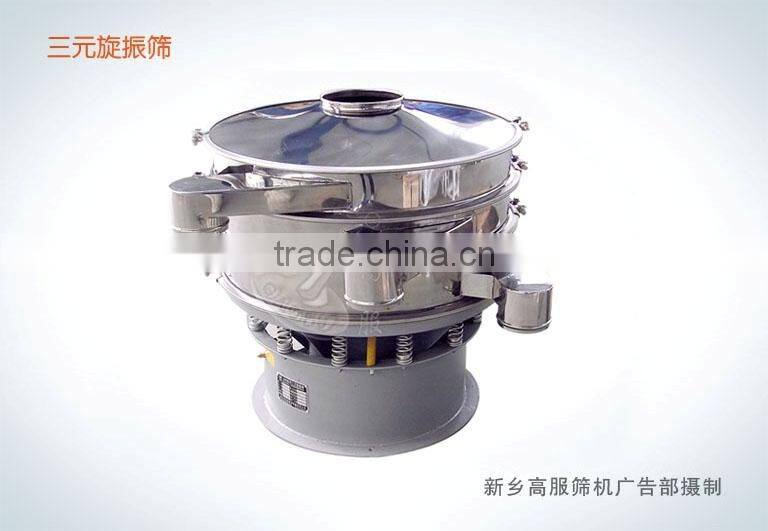

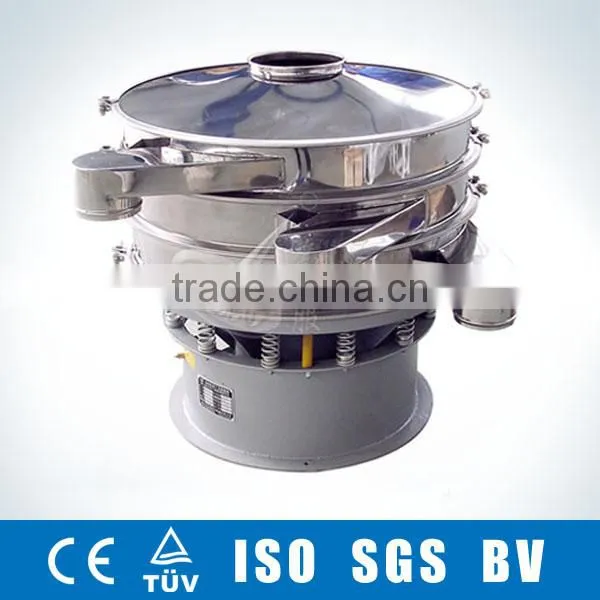

Gaofu Round separator for adipic acid powder
1. Application :
Chemical industry---
Pigments , Silica , Resin , Gypsum , Cosmetic , PVC
powder , Fiberglas , Dextrin ,Fertilizer , Teflon , Polystyrene , Quicklime .

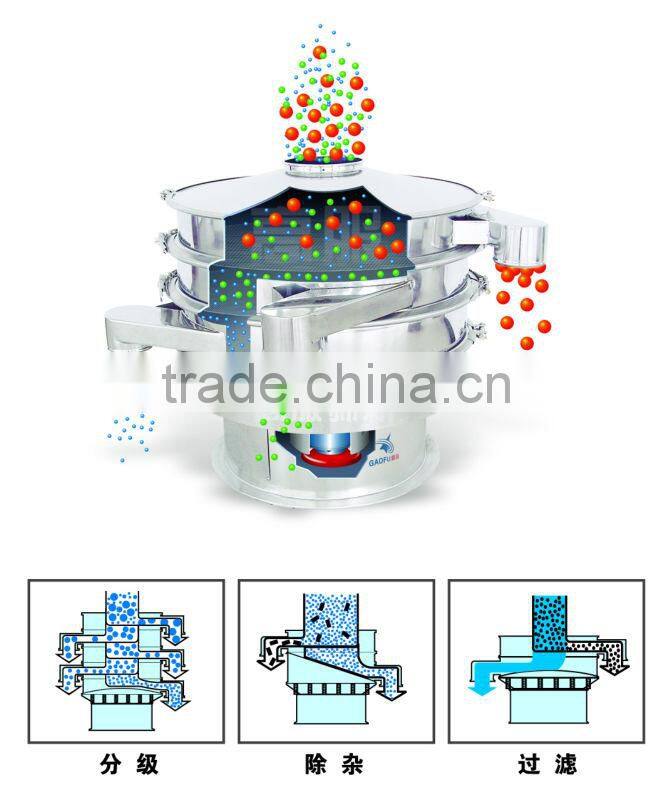

2.Principle of the structure:
It uses vertical vibrating motor as the source of vibration, with eccentric hammer on both sides of motor, making material do level, upright and incline movement, then the material passes these through surface of the screen after overall screening. Adjusting the phasic angle on both sides of the motor can change the movement track of the surface screen, which helps screen different materiel in different situation successfully.
3. The function of the round separator
4. Features:
a. Any powders and mucilage are suitable for screening;
b. Easily to replace the screen, only 3-5 mins to replace the screen;
c. Never jam the hole meshwork, no powder flying;
d. Discharge the impurity and coarse materials automobile and operates continuously;
e. Unique- designed screen flame type, simple operation and convenience washing, long duration of screen;
f. Low noise;
g. High screening accuracy.
5. Technical parameter:
Model |
Effective diameter (mm) |
Effective sieving area(m 2 ) |
Mesh size |
Layer |
Powder(KW) |
|
|
Vibrating motor |
Common motor |
|||||
S49-400 |
Φ340 |
0.0907 |
5-500 |
1-5 |
0.18 |
-- |
S49-600 |
Φ540 |
0.2289 |
5-500 |
1-5 |
0.25 |
0.75 |
S49-800 |
Φ730 |
0.4183 |
5-500 |
1-5 |
0.55 |
1.1 |
S49-1000 |
Φ900 |
0.6359 |
5-500 |
1-5 |
1.1 |
1.5 |
S49-1200 |
Φ1100 |
0.9490 |
5-500 |
1-5 |
1.1 |
1.5 |
S49-1500 |
Φ1400 |
1.5386 |
5-500 |
1-5 |
1.5 |
2.2 |
S49-1800 |
Φ1700 |
22687 |
5-500 |
1-5 |
4 |
3.0 |
S49-2000 |
Φ1886 |
2.7922 |
5-500 |
1-5 |
4 |
3.0 |
6. Parts of round separator :
7. Silicon gasket
8. Tool
9. Customer Site :
10. Our Factory :
