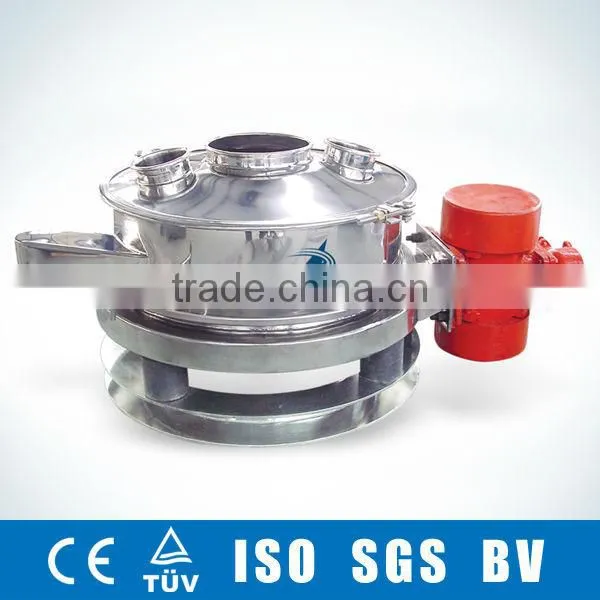

High Quality Stainless Steel Rotary Flour Sifter Machine
If you are still concerns in your products for the filtration problems, please click on me, and I will you recommended a filter sieve for you, to help you solve your problem of filtering;
1. Product Introduction
This product is one kind of multipurpose new screening machine .The material movement path has the many kinds of adjustments form ,the equipment compatibility remarkably increases . The material discharges directly , so the processing ability can be dramatically upgraded .Ts-1000 sieve ,with mesh 24 item ,is used to manufacture instant noodles using wheat flour ,to eliminate and loose flour mixture . The processing ability can achieve 350Kg/150 second . It is usually equipped in the industry of bread flour, starch, laundry powder , metal powder , chemical additive , non-mine and so on ,to sieve raw or fine material ,to precisely sieve , with high productivity and easy to be combined with production line . You can have more choice of model size between 600mm to 1800mm .
2. Product Features
- Structure completely constructed by stainless steel, grace appearance and longevity of operation.
- Small volume, easy to transport.
- Low cost of energy, high efficiency.
- Easy to dismantle and fix or clean. No unseen corner with dirty, identity of foodstuff GMP principles.
- Automated operation, can work all daylong(full of 24hours).
- High quality of low noise design.
- Good airproof, no leaking, no floating dust
3.Daily maintenance:
1. before running
(1) To check coarse mesh and fine mesh if there is damage
(2) Each group clamps is locking.
2. Running
(1) Notice any abnormal noises
(2) Electric current is stable
(3) Whether the vibration is abnormal.
3. after running
(1) After used clean up the vibration every time
(2) To inspect regularly the coarse mesh, fine mesh and the spring if there are fatigue and damage
(3) Whether each part of the vibrating body caused damage due to vibration.
(4) Need to add the site to be the lubricating oil
4.Technical parameters
Model |
Power (kw) |
Motor speed (r/min) |
Sieve diameter (mm) |
Dimension(mm) |
Wight(kg) |
DZ-600 |
0.18 |
1450 |
580 |
1000*600*550 |
200 |
DZ-800 |
0.25 |
1450 |
780 |
1100*800*600 |
250 |
DZ-1000 |
0.55 |
1450 |
960 |
1280*1000*700 |
330 |
DZ-1200 |
0.75 |
1450 |
1160 |
1550*1200*750 |
400 |
DZ-1500 |
1.5 |
1450 |
1460 |
1850*1500*900 |
750 |
Note:
1. Material: SUS 304 / Q235A / 316 L.
2. Voltage: 380V /400V.
3. Voltage: 380V /400V, Frequency:50 / 60 HZ.
4. If the specification or appearance has changed, we will not notify additionally.
It can remove the impurity from the flour , starch and other powder .
Our Company:
Our company has more than 30 years experience in machinery manufacturing industry , so We can provide you professional free technical service.
We ever exported this machine to America , Australia , Canda , Chile , Trinidad , and Tobago , Peru , Ghana and so on .And the perfect quality of the machine acquire many my customers` great praise .
Our company has passed the ISO9001:2008 Quality system certificate , and obtained the CE certificate.
