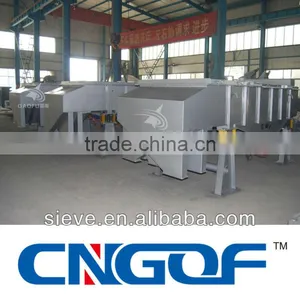

Square Grader Mechanical Machine
1. Simple Introduction
SZF series linear vibrating screen use vibration motor as vibration source, the materials is rosed and moved in the straight at the same time. The materials are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different gates.
2. Features
It is suitable for low consuming, high output, and simple structure, easily maintain all-closed structure, no powder dispersed, automobile discharged.
3. Applications
The linear vibrating screens are used in many industries, such as, steel making, mining, quarrying, foundries, food processing and chemical industry for the separating of bulk materials like stone aggregates, different kind of sand, active carbon and other materials.
Make the order: Inlets, outlets and legs can be custom fit to your installation requirements.
Model |
Size(mm) |
Material size(mm) |
Inclination |
Amplitude(mm) |
Layer |
Power(KW) |
SZF-520 |
500×2000 |
0.074-10 |
0-7 degree |
4-10 |
1-6 layer |
2*(0.4-0.75) |
SZF-525 |
500×2500 |
2*(0.4-0.75) |
||||
SZF-1020 |
1000×2000 |
2*(0.4-0.75) |
||||
SZF-1025 |
1000×2500 |
2*(0.4-1.1) |
||||
SZF-1030 |
1000×3000 |
2*(1.1-1.5) |
||||
SZF-1040 |
1000×4000 |
2*(1.1-1.5) |
||||
SZF-1235 |
1000×3500 |
2*(1.1-2.2) |
||||
SZF-1250 |
1200×5000 |
2*(1.1-2.2) |
||||
SZF-1535 |
1500×3500 |
2*(1.1-2.2) |
||||
SZF-1560 |
1500×6000 |
2*(2.2-3.7) |
||||
SZF-1845 |
1800×4500 |
2*(2.2-3.7) |
||||
SZF-2050 |
2000×5000 |
0.074-15 |
2*(2.2-3.7) |
|||
SZF-2260 |
2200×6000 |
2*(2.2-3.7) |
Daily maintenance:
1. before running
(1) To check coarse mesh and fine mesh if there is damage
(2) Each group clamps is locking.
2. Running
(1) Notice any abnormal noises
(2) Electric current is stable
(3) Whether the vibration is abnormal.
3. after running
(1) After used clean up the vibration every time
(2) To inspect regularly the coarse mesh, fine mesh and the spring if there are fatigue and damage
(3) Whether each part of the vibrating body caused damage due to vibration.
(4) Need to add the site to be the lubricating oil
Screen frame:
Different screen frame structure, help you get more quality screening purpose!
GAOFU company have a perfect after-sales service system and professional technology team to provide customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
