Large output shaking pellet sifter
SZF Series shaking pellet sifter are widely use in building industry. Vibratory screener can be provided with dust proof cover as required. SZF Series linear vibratory screener can be supplied of different sizes depending upon capacity required.
Function of pellet sifter:
1.Classification
Each linear vibratory screener can screen and separate precisely and continuously, the multi—layer type can screen and separate five grades of different particles at one time. It is suitable for dry pellet sif.
2.Remove the impurities
Our linear vibratory screener can quickly separate a few of oversize or undersize particles from a quantity of mental powder raw materials.
Technical Data
Model |
Size(mm) |
Inclination |
Amplitude(mm) |
Layer |
Power(KW) |
SZF-520 |
500×2000 |
0-7 degree |
4-10 |
1-6 layer |
2*(0.4-0.75) |
SZF-525 |
500×2500 |
2*(0.4-0.75) |
|||
SZF-1020 |
1000×2000 |
2*(0.4-0.75) |
|||
SZF-1025 |
1000×2500 |
2*(0.4-1.1) |
|||
SZF-1030 |
1000×3000 |
2*(1.1-1.5) |
|||
SZF-1040 |
1000×4000 |
2*(1.1-1.5) |
|||
SZF-1235 |
1200×3500 |
2*(1.1-2.2) |
|||
SZF-1250 |
1200×5000 |
2*(1.1-2.2) |
|||
SZF-1535 |
1500×3500 |
2*(1.1-2.2) |
|||
SZF-1560 |
1500×6000 |
2*(2.2-3.7) |
|||
SZF-1845 |
1800×4500 |
2*(2.2-3.7) |
|||
SZF-2050 |
2000×5000 |
2*(2.2-3.7) |
|||
SZF-2260 |
2200×6000 |
2*(2.2-3.7) |
Note:
1. Each type can be 1-5 layers, and the mesh size is from 0.1 to 30mm.
2. Material: Q235A / SUS 304 / 316L
3. Voltage: 380V /400V, Frequency: 50 / 60 HZ.
Our Screen frame has two types: different screen frame structures, help you get more quality screening purpose!
Type 1. Stainless steel screen frame
Type 2. wooden screen frame
The results of the screening process :Big, small, the smallest size.
GAOFU company have a perfect after-sales service system and professional technology team to provide you with prompt and thorough service. Our price are more competitive and reasonable, each order will be supplied within the stipulated period.

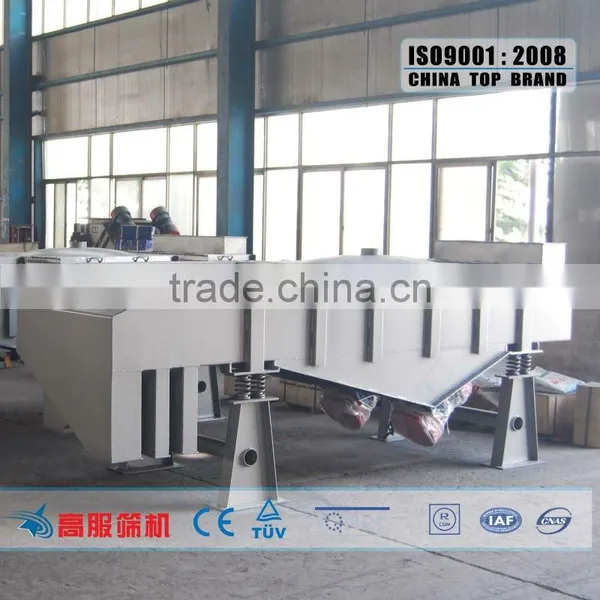

Linear vivrating screen in our workshop
Shaking pellet sifter are ready to start
Various types of linear screen

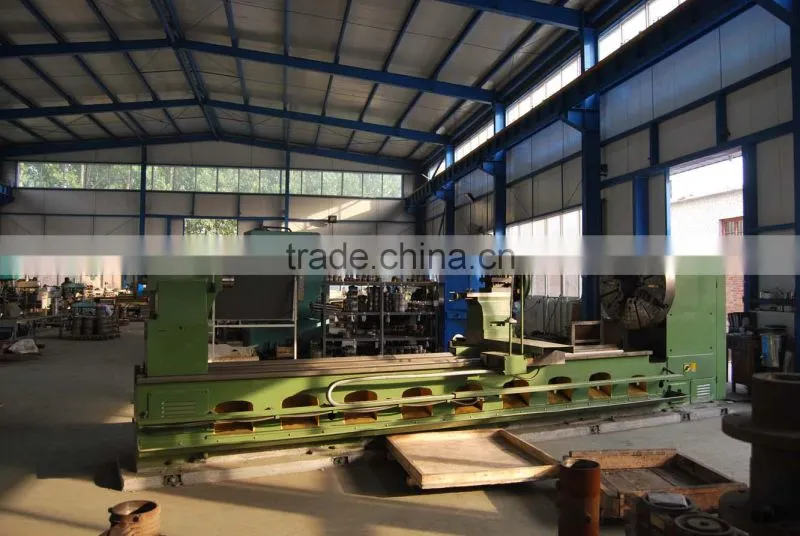

he modernization of production equipment
